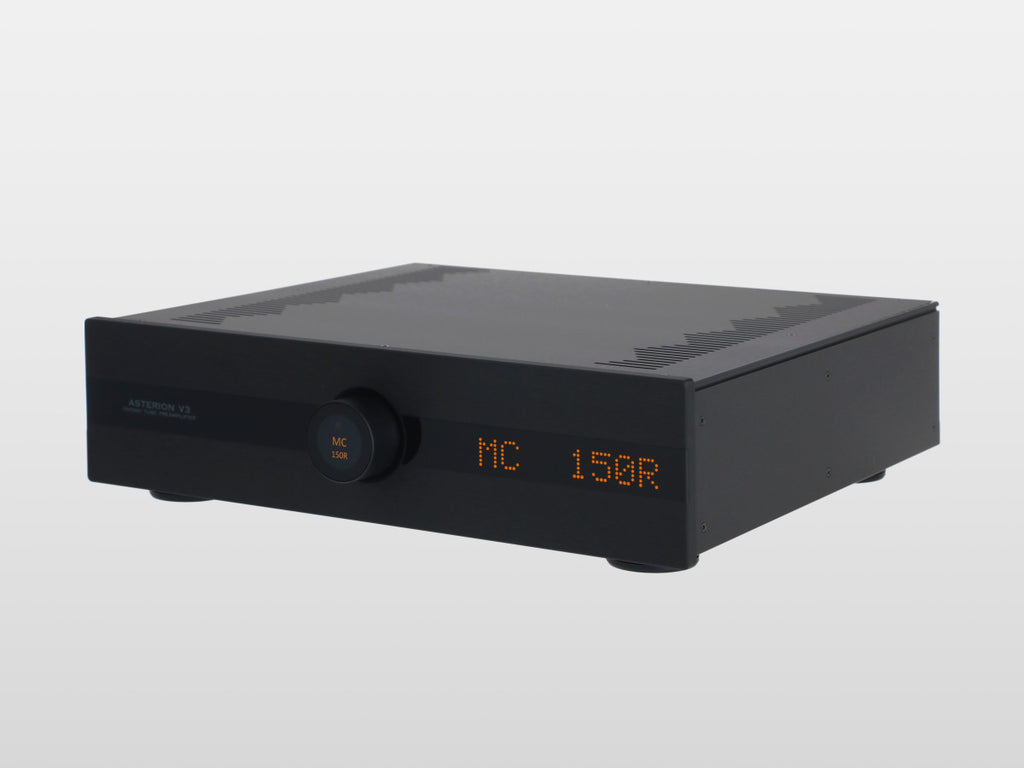

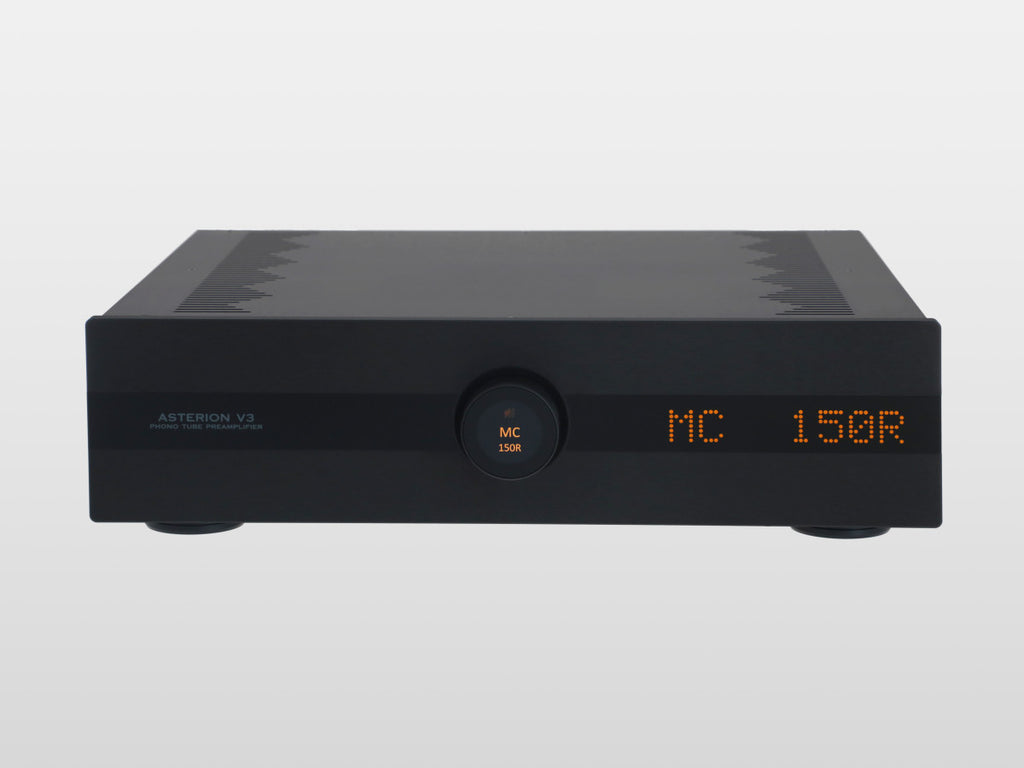

Canor Asterion V3 Tube Phonostage / Riaa

Canor Asterion V3 Tube Phonostage / Riaa

35.900,00 DKK

The Asterion V3 is a tube-based phono preamplifier with both XLR and RCA inputs and support of both MC and MM cartridges!

Designed for MM and MC cartridges with high variability of resistance and capacitance settings.

Supports balanced and unbalanced MC cartridge connections.

Carefully selected and matched tubes with exceptional parameters.

Product features

  • The Asterion V3 offers exceptional gain control and precise input impedance and capacitance selection for all types of cartridges. This flexibility allows for optimal parameter adjustment, thereby achieving the maximum sonic potential of any turntable system.

  • A top-of-the-line Lundahl step-up transformer is used for the MC inputs, ensuring natural signal amplification with minimal noise.

  • The RIIA correction curve is made up exclusively of passive corrections containing high-quality polystyrene and polypropylene capacitors.

  • The device supports the simultaneous connection of two cartridges—one MM and one MC—allowing you to switch between them seamlessly.

  • The versatile remote control allows you to control all key preamplifier functions directly from the listening position.

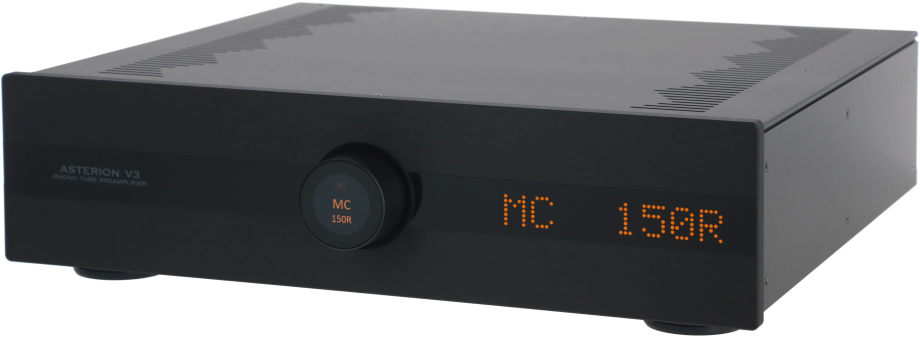

  • The touch screen integrated in the control panel allows easy and intuitive access to all device functions and settings.

  • The massive control knob uses a pair of precision bearings for smooth operation.

  • The device combines high-quality materials, aluminum and steel.



Gain

MM 46 dB
MC 70 dB
Input impedance MC 10, 20, 40, 80, 150, 300, 600, 1200 Ω
Input capacitance MM 50, 150, 270, 370, 520, 620, 740, 840 pF
Output impedance < 500 Ω

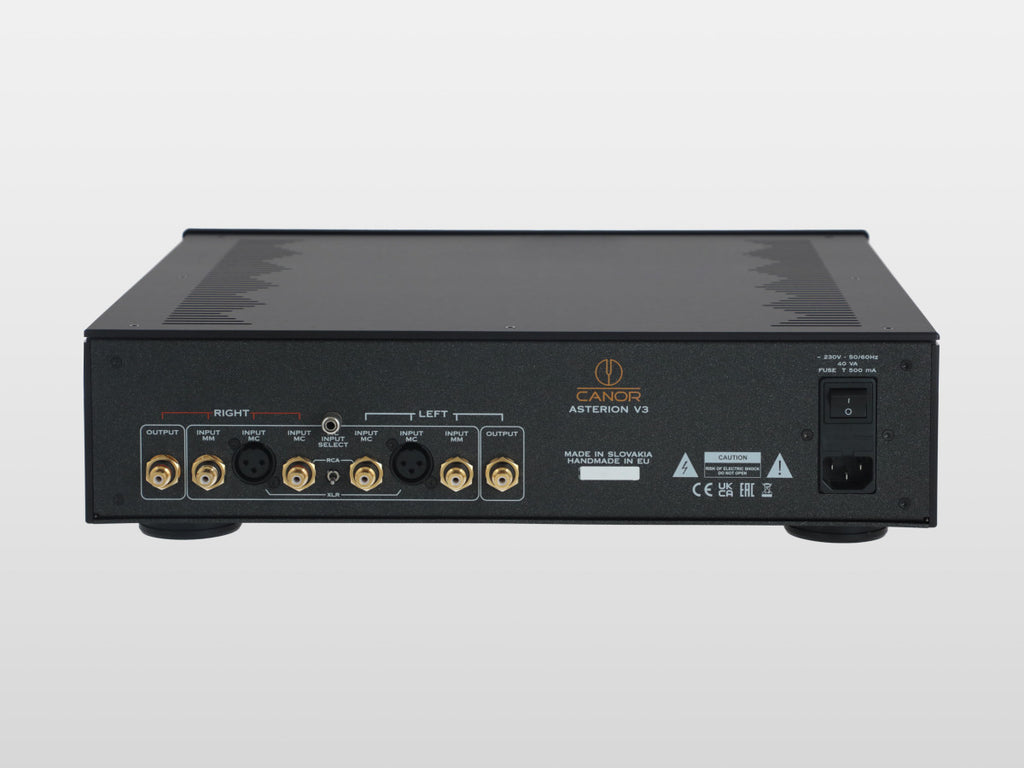

Inputs 2 RCA pairs, 1 XLR pair
Output 1 RCA pair
Total harmonic distortion (MM, MC) < 0.2 % / 1 Vrms
Subsonic filter 18 dB / Octave
RIAA accuracy (MM, MC) +- 0.3 dB / 20 - 20 000 Hz
Signal-to-noise ratio MM > 71 dBV (86 dBV - IEC - A)
Signal-to-noise ratio MC > 68 dBV (82 dBV - IEC - A)
Tube Complement 2 x ECC83S, 2 x ECC81
Power 230 V / 50 – 60 Hz / 40 VA
Dimensions (W x H x D) 435 x 122 x 370 mm
Dimensions (W x H x D with knob & connectors) 435 x 122 x 415 mm
Weight (Net) 12 kg
Weight (Gross) 17 kg
