THÖRESS 300B Single-Ended Triode Mono Power Amplifier

Dette produkt kan købes ved personlig henvendelse!

Bestillingsvare, forvent 4-8 ugers leveringstid!

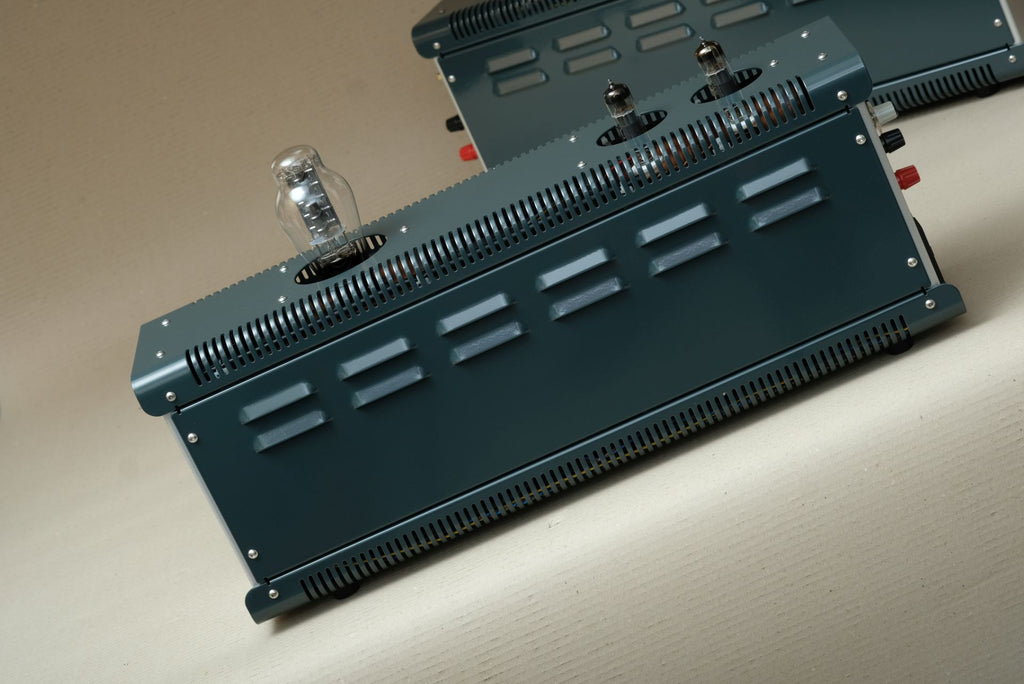

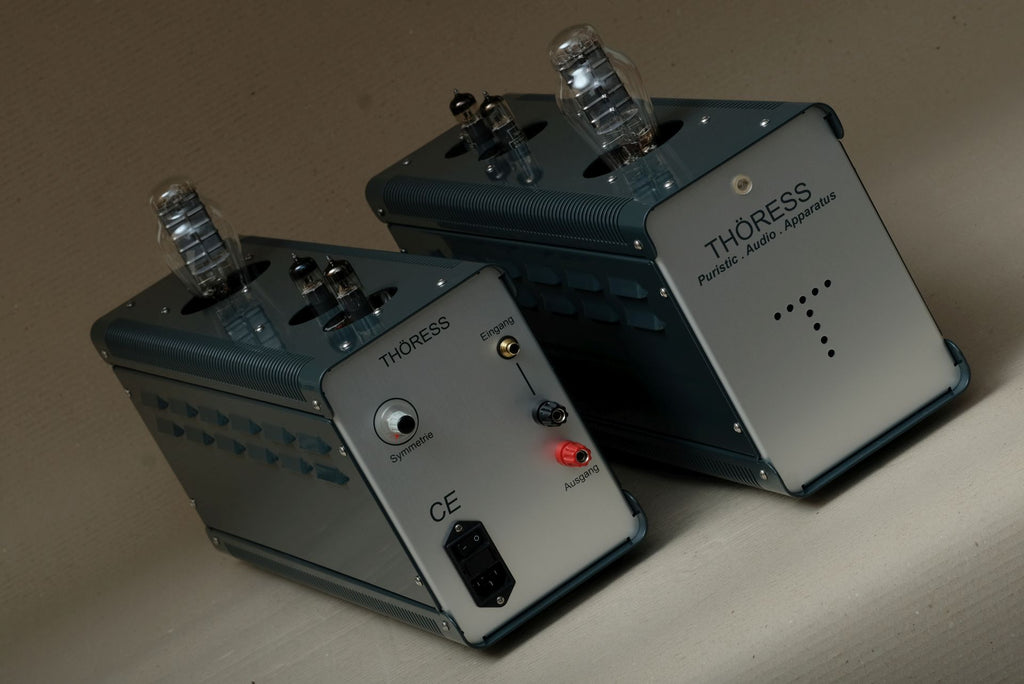

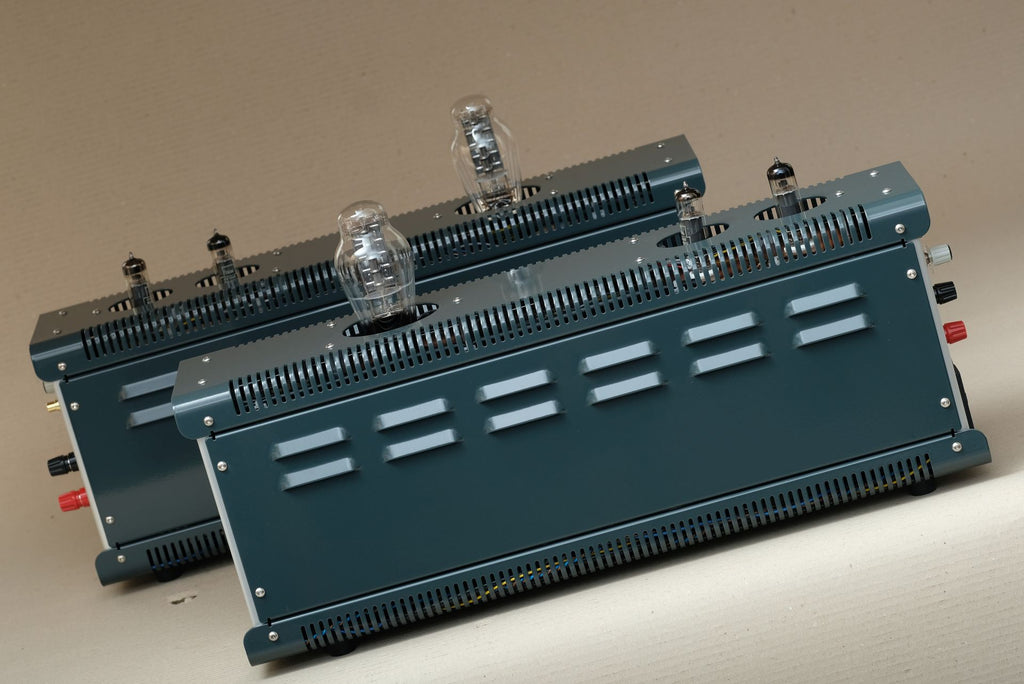

The SE300B Mono Amplifier is an all-tube power amplifier employing the famous
300B filamentary triode in single-ended (Class-A) operation mode for an output of
up to 10 watts into a 4, 8 or 16 ohm loudspeaker load.
The power tube is modulated by an extraordinary single-stage taylored around a pair
of 2xEL822/CV2382 power tubes operated in triode mode with high idle current.
And is combined with a proprietray C-core output transformer (OPT) produced inhouse to meet the highest possible standards and to perfectly suit the circuit
context. These design choices are to a large extent responsible for the richly
textured, clear, warm and dynamic sonic presentation of our amplifier. The SE300B
Mono Amplifier is an ultimate component which easily measures up to the highest
expectations of even the most critical and experienced music lover. And as such a
perfect complement to our DFAmp or FFPre.
BUILT

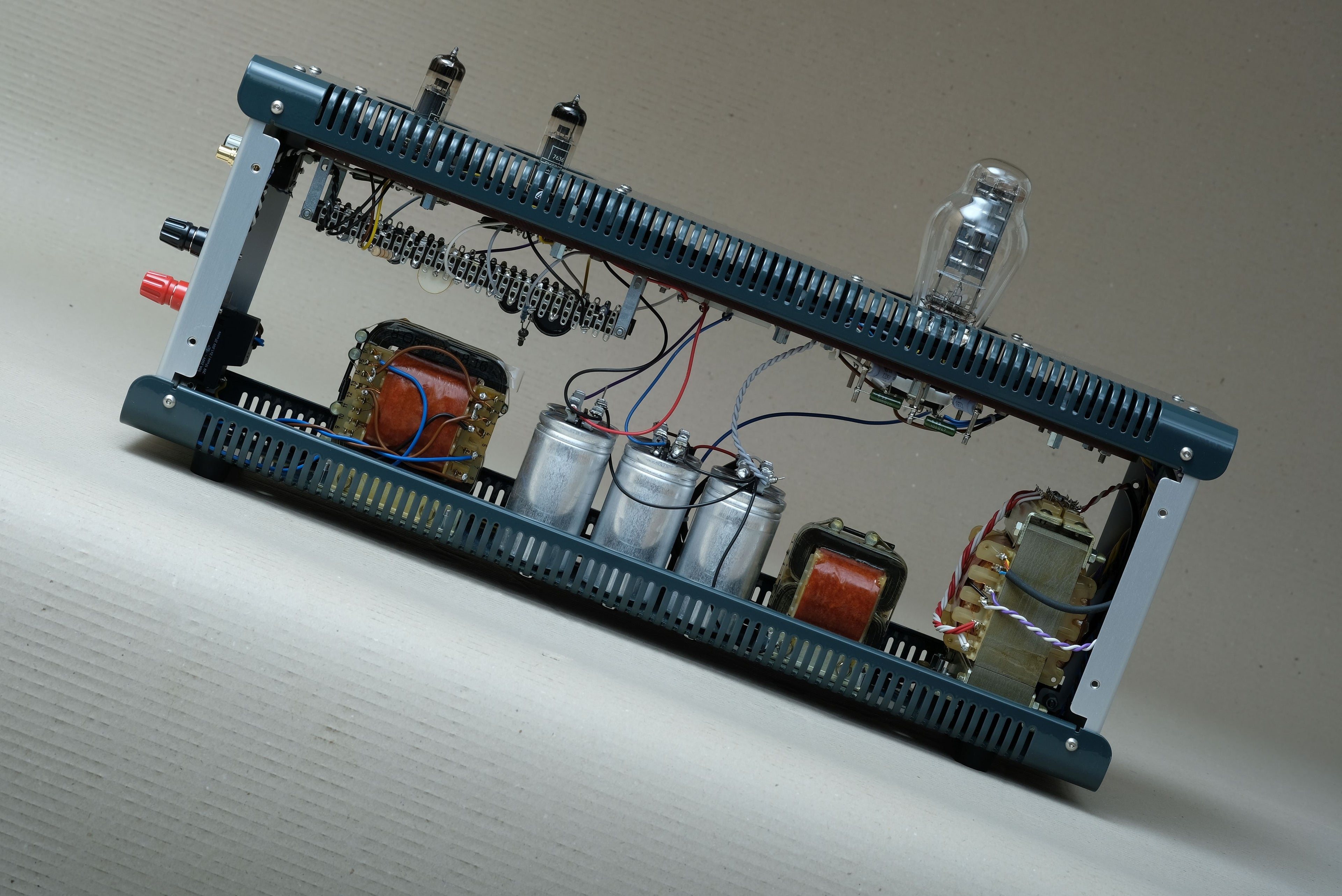

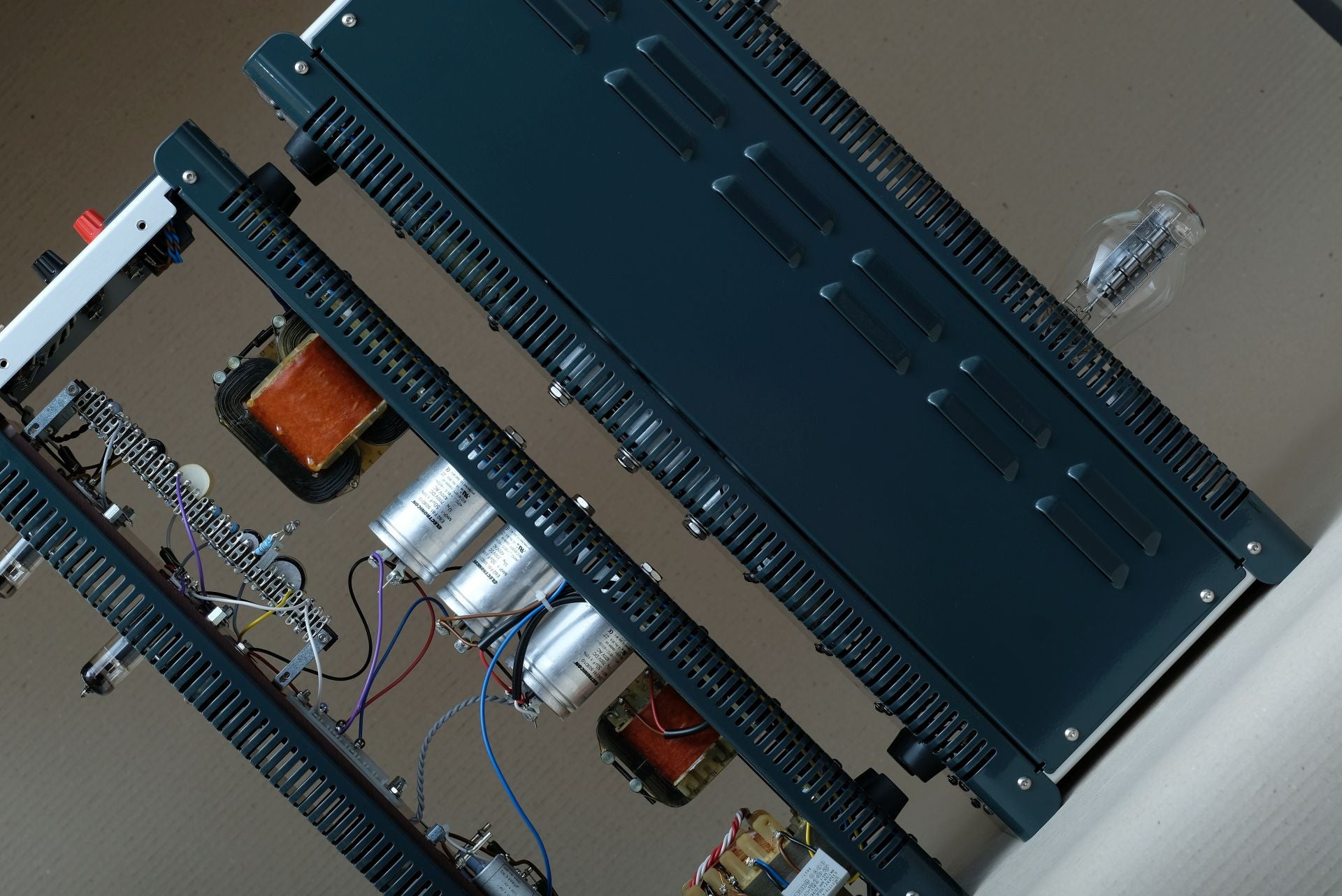

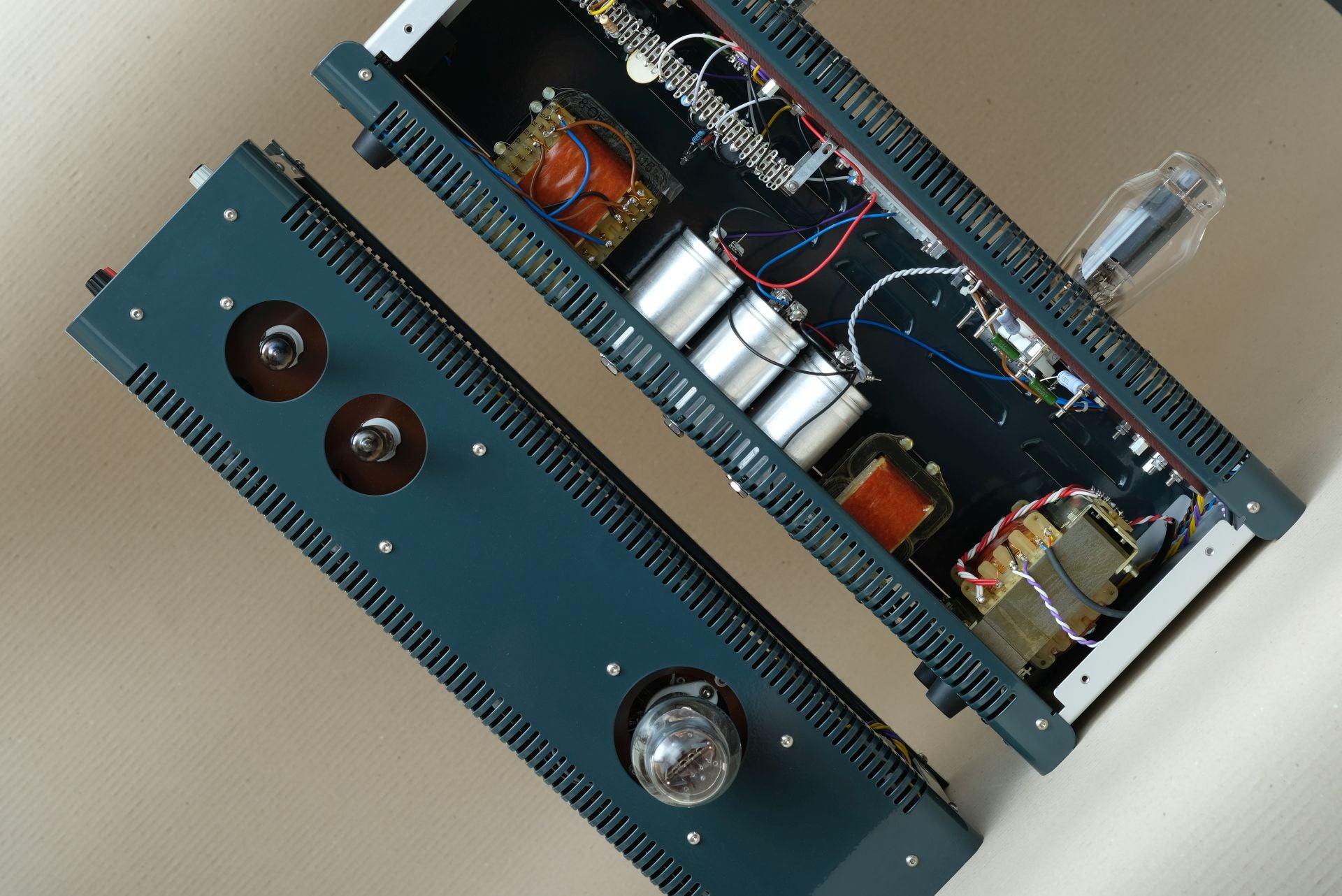

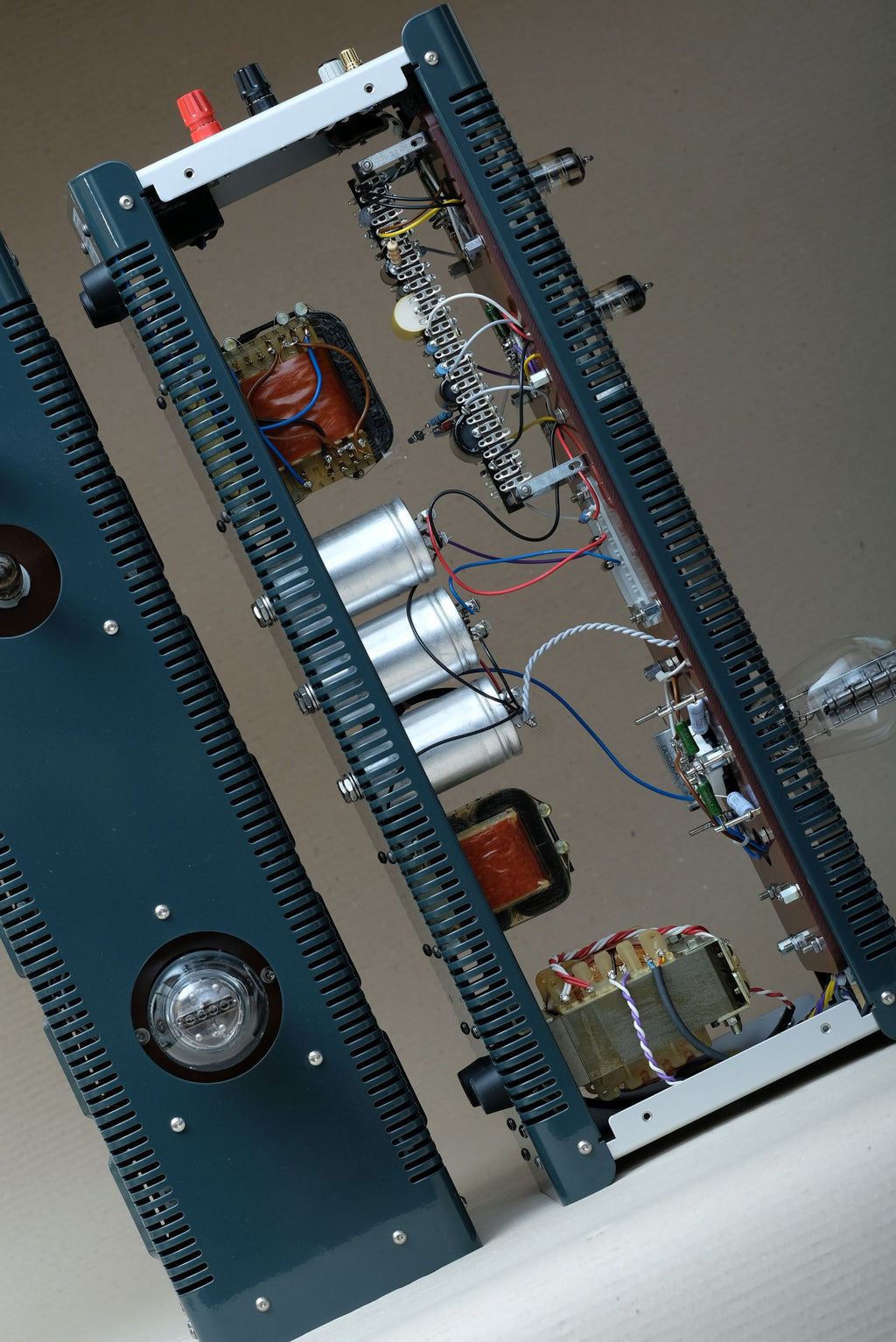

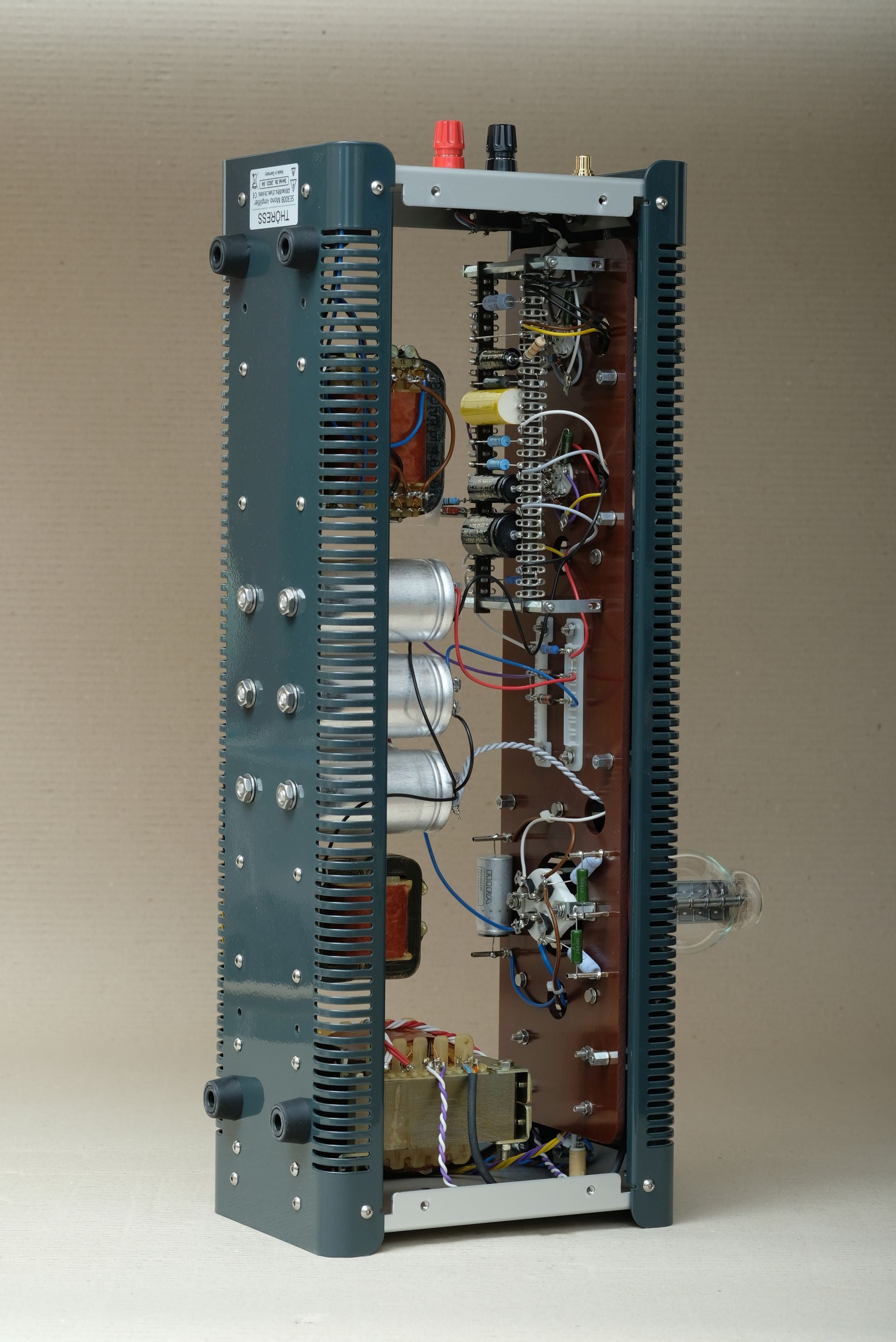

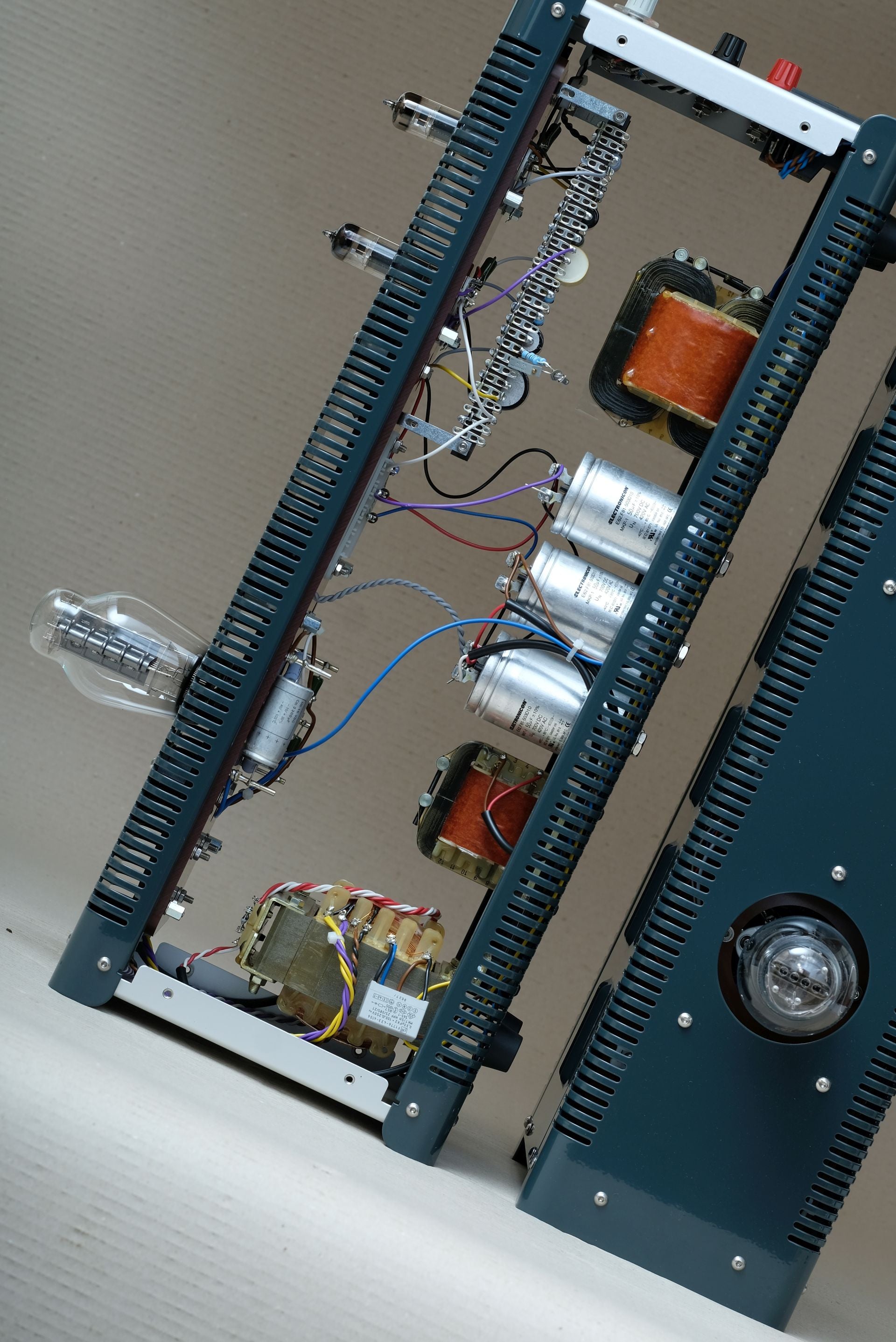

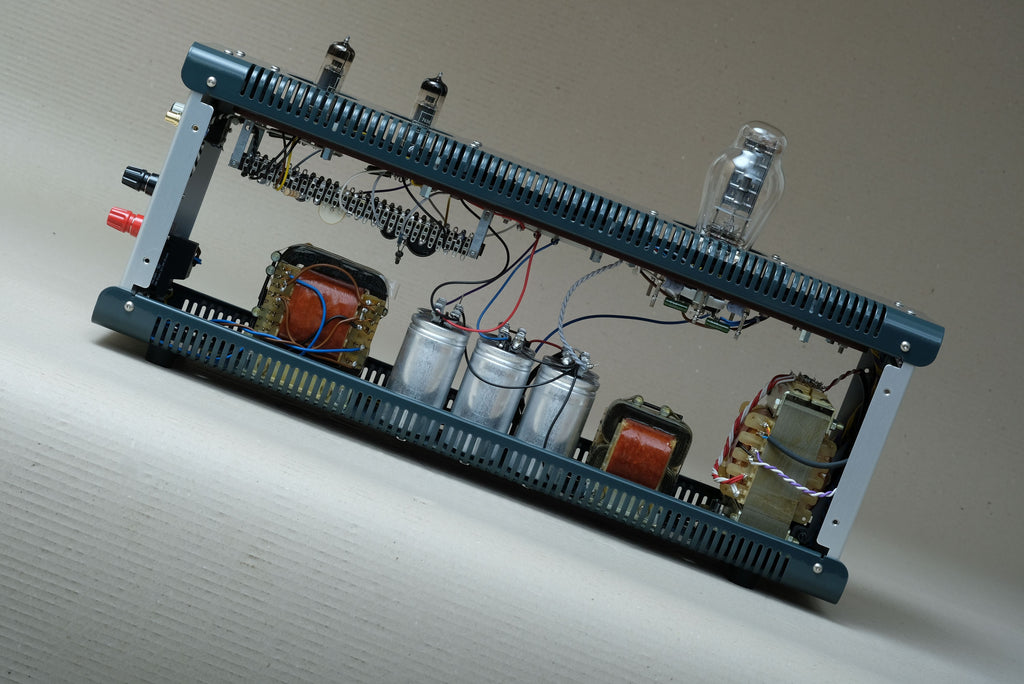

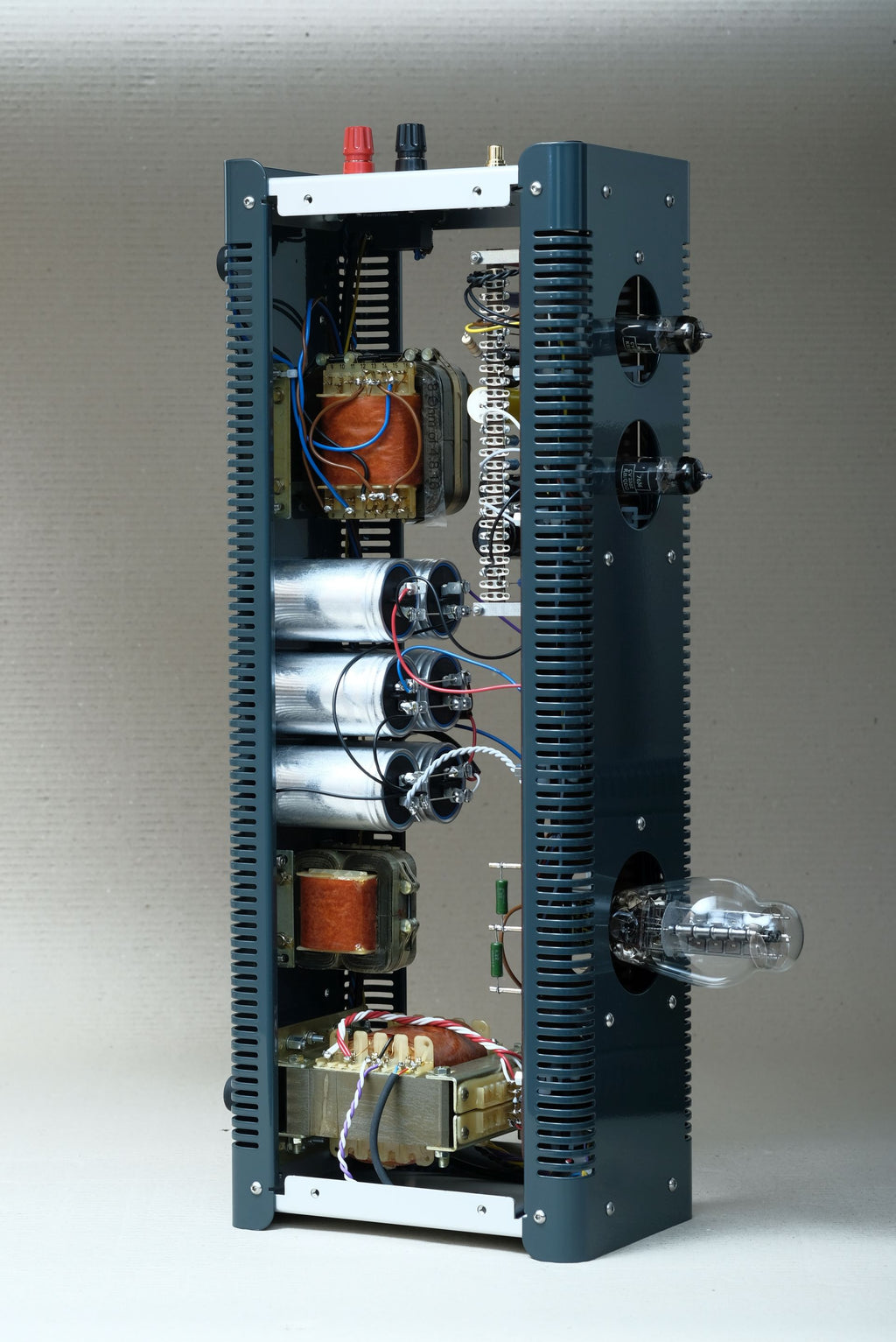

The amplifier is built with meticulous hand construction using our proven point-topoint wiring techniques. Much care has been taken in arranging each aspect of the
internal construction to ensure low noise performance, ease of service and the
highest reliability for many years to come.

TOPOLOGY
The amplifier is entirely based on SINGLE-ENDED ZERO-FEEDBACK schematics.
Decidedly ignoring the fact that many music lovers still persistently believe in the
myth that balanced technology (and the associated cable configuration with XLR
connectors) is generally superior to single-ended concepts. Readers who want to
learn more about our view on balanced techniques and our general design approach
are encouraged to read the paper (THÖRESS - Behind the Curtain) downloadable on
the ABOUT button of our website.

LOW NOISE OPERATION
Specific design choices guarantee low noise operation of the amplifier, even when it
is combined with a highly efficient loudspeaker. At first, the 300B triode is DC heated
whereas the cathode point of the output circuit can be balanced with respect to the
filament of each individual 300B tube by means of a rotary potentiometer. Once the
balance adjustment has been made, the signal current is distributed evenly over
both ends of the filament and residual hum due to heater voltage ripple vanishes!
Secondly, the amplifier has been specifically designed to have a moderate gain (low
input sensitivity). This design choice helps to avoid idle noise issues (and ensures
conveniently fine volume adjustment) in a wide variety of setup scenarios.
MAINS TRANSFORMER
The SE300B mono amplifier is equipped with a mains transformer produced inhouse to ensure the highest possible quality and reliability. This part has been
optimized for low body noise emission and low leakage. Nevertheless, it is mounted
to the chassis via isolation elements in order to eliminate even the slightest
interference of residual transformer vibrations with the circuit. Since the mains
transformer is produced in-house we can readily customize the amplifier for all kinds
of mains voltages, such as 230Vac, 100Vac (Japan), 120Vac (USA, Canada), 220Vac
(South Korea, China, Thailand, Indonesia), 240Vac (UK) or 245 Vac (Australia).

F E A T U R E O V E R V I E W
• All-Tube Mono Power Amplifier utilizing the famous classic
300B filamentary power triode in single-ended (class-A) operation mode.
• 2x10 watts of output power.
• Powerful single-stage driver utilizing two EL822/CV2382 pentodes
operated in triode mode at high idle current.
• Minimalist (pure class-A) zero-feedback schematic.

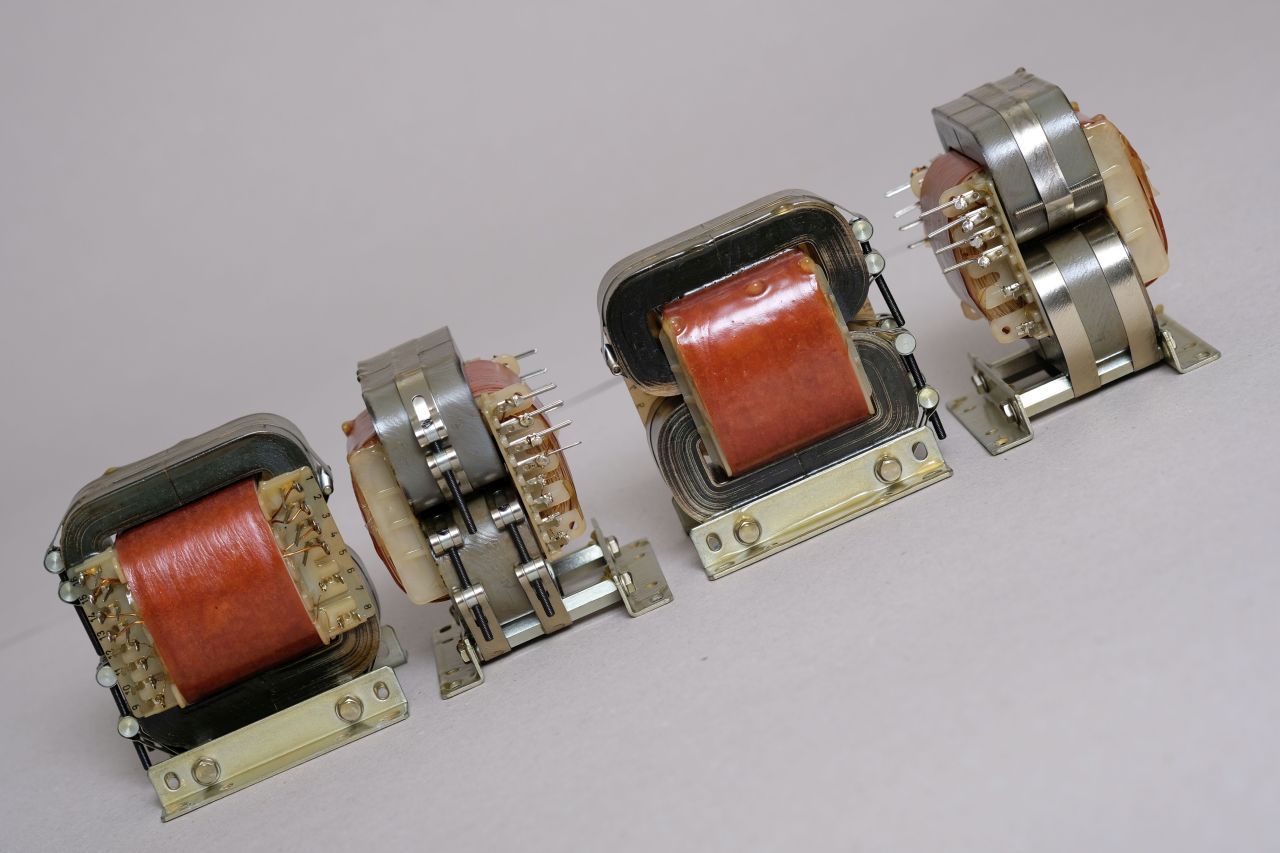

• Ultimate tape wound cut core (C-core) output transformer
manufactured in-house.

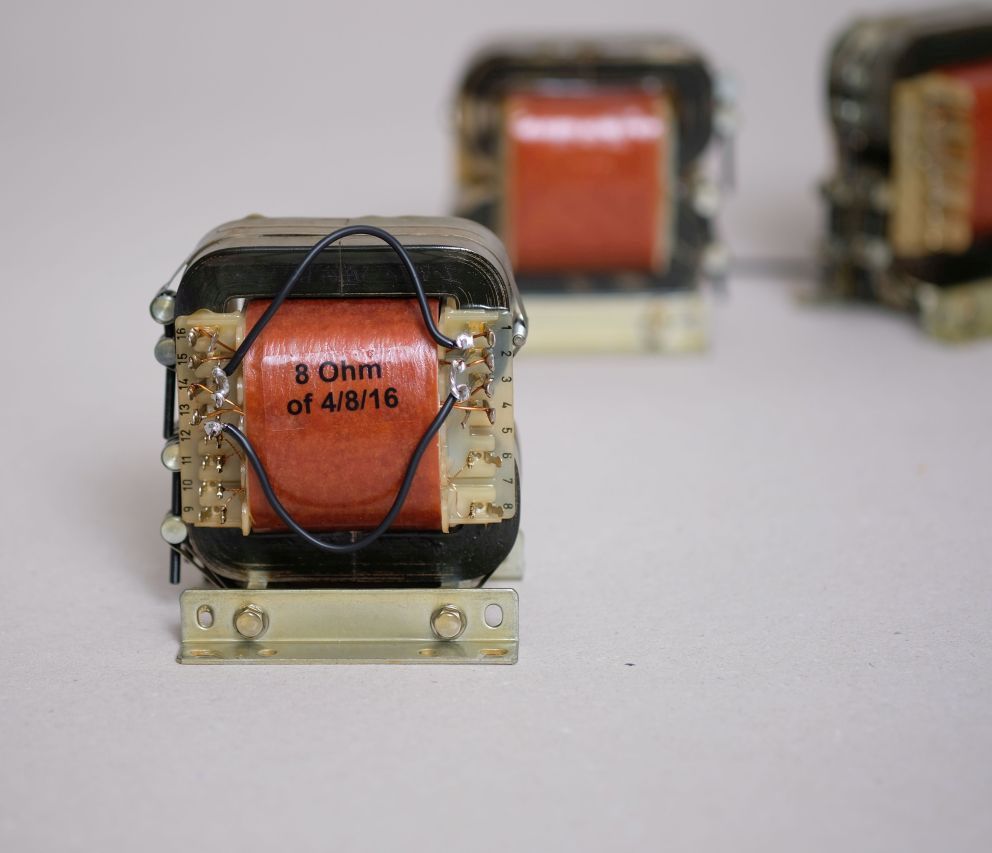

• Precise 4, 8 and 16 ohm loudspeaker load matching via jumpers soldered
to the secondary terminals of the output transformer.
• C-core filter choke made in-house.
• High grade foil-in-oil capacitors made in Germany in the power supply.
• Ultra-low noise mains transformer produced in-house for 230Vac, 100Vac
(Japan), 120Vac (USA, Canada), 220Vac (South Korea, China, Thailand, Indonesia),
240Vac (UK) or 245 Vac (Australia).
• Full hand construction, point-to-point wiring throughout.

Non-magnetic (aluminum) case, anodized printing on front and rear panel,
powder-coated chassis and lids.
• Dimensions: 150x595xH330 mm,
330=20/feet+210+100/power tube over case,
595=575+20/speaker binding posts;
• weight: 14 Kg each Mono Block.
• Dimensions of the shipping crate: 950x400xH460 mm.
