AMC 2N100 MKII-2 Effektforstærker

AMC 2100 MK2 - stereo transistor power amplifier - also mono bridgeable

The AMC 2100MK2 is a very high quality, well-equipped and yet affordable stereo power amplifier. High quality can be determined by the performance, the structure and the sound. At 8 ohms the continuous power is 100 watts per channel. At 4 ohms it is even 2 x 200 watts. It can boast an impulse output of 150/300 watts at 8/4 ohms.
The AMC2100MK2 draws this power from a powerful toroidal transformer with 400 VA output and 4 filter capacitors, which together have a capacity of 32,800 microfarads.

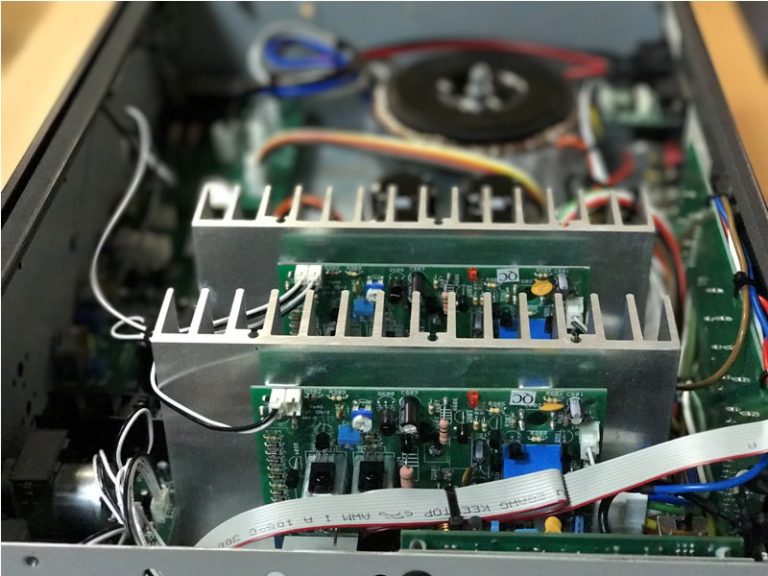

Two channel-separated power amplifier modules with their own heat sink are used in the power amplifier. If required, up to 32 amps peak current is available.



Now the question arises as to what features a power amplifier can offer.

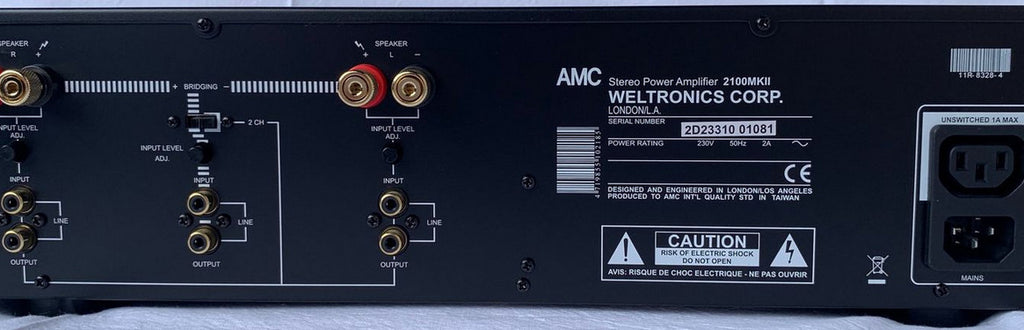

• Not just signal inputs, but also signal outputs. These are used, for example, to set up a bi-amping system. This means that many speaker inputs finally make sense. All AMC integrated amplifiers are ideal for bi-amping in conjunction with the 2100MK2.
• Adjustable input sensitivity. This means that the 2100MK2 can be ideally adjusted to the required conditions.
• Mono-bridgeable. This turns the powerful stereo power amplifier into a mono power amplifier with a pulse power of 500 watts.

Specifications

• Concept: Stereo - transistor power amplifier - Class A/B technology
• Power delivery capability: HCO power supply with 32 amps peak current
• Special feature: mono-bridgeable
• Power amplifier: 2 x 2 Sanken power transistors
• Special feature: Channel-separated power amplifier modules
• Sieve capacity: 32,800 microfarads
• Continuous power: 2 x 100/200 watts at 8/4 ohms
• Impulse line: 2 x 150 / 300 watts at 8 / 4 ohms
• Damping factor: > 200
• Continuous power mono: 250 watts at 8 ohms
• Impulse power mono: 500 watts at 8 ohms
• Impedance: 4 - 8 ohms
• Frequency response: 5Hz - 110KHz
• Frequency response: 20Hz - 20KHz, +/- 0.2dB
• THD at rated power: 0.03%
• Signal/noise ratio: 100 dB
• Crosstalk attenuation 20 Hz - 20 KHz: > 70 dB
• Input sensitivity: 100 mV - 1 volt
• Input resistance: 22K ohms, 150 picofarads
• Accessories: power cable

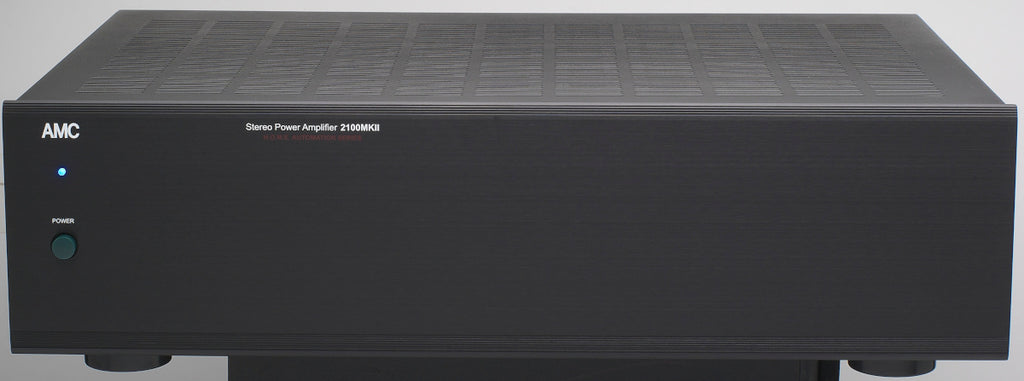

• Housing front: black aluminum
• Weight: 9.4kg
• Dimensions: w 43 x d 28.8 x h 11.2 cm
