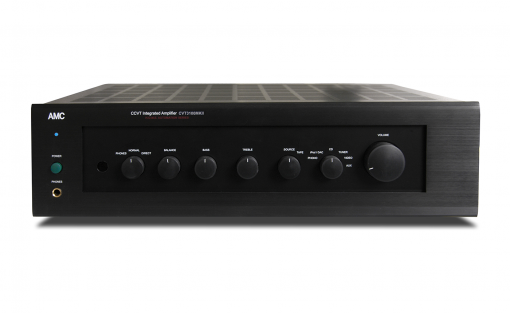

AMC CVT3100 mkII Integreret Rørforstærker

CCVT Integrated Valve Amplifier, Class A, 80W x 2

AMC er ansvarlig for nogle af verdens mest berømte mærker og avanceret esoterisk elektronik. Deres hovedfokus siden 1970 er at bygge pålidelige og kraftfulde forstærkere med en forventet levetid på mindst 25 år.

The AMC CVT3100MKII is a hybrid Mosfet-Valve design that represents outstanding value.

It has been designed with components of the highest quality to give a superb - "best of both worlds" -  sound quality.

​Key Features of AMC's proprietary Class A hybrid MOS-FET amplification topology :

A. 1000V MOS-FETs configured in exactly the same way as Classical Valve Class A amplifier stages. This approach offers excellent dynamic range.

B. FETs provide greater pre and driver stage amplification accuracy to the final Power Tube Stage. The result is a more coherent Frequency Response a more stable Soundstage.

C. Operational Life and Reliability are significantly better compared to Classical Valve designs.

Product features

KT88 Power Tubes x 4
Tube Rolling : YES
VRC Volume Rotary Control
Switches and relay-free source selection
Phono MM
Phono MC
TOS Hi-Res Streamer Input

e.g. Primo-HD for Tidal, Qobuz etc ​
Bypass-able tone control
Headphone output
System Remote Control
Removable power cord
Optional module :

24bit PCM DAC module S/PDIF digital input (user-swappable for phono board) - $199
Inputs (line / phono) - 5/1
Tape output - 1
Pre-Out - 1

Specifications

Rated Power into 8/4ohms

80W - RMS both channels driven

Rated THD

45Hz-20KHz - 1.0%

Clipping @ 1kHz into 8/4ohms

85W

Input Sensitivity

High level inputs - 20mV/180mV

Phono MM Input -  0.4mV/2.2mV

Phono MC  Input - 0.04mV/0.2mV

Input impedance

High Level Inputs - 12K ohm/100pF Phono Input - 47Kohm /100pF

Frequency Response

Tone Bypass 20Hz-20KHz  +/-0.5dB

Normal 20Hz-20KHz   +/-1.0dB

High level inputs 15Hz/40KHz  -3dB

Dimensions (WxHxD)

430 x112 x 389 mm

Net Weight

19 Kgs
