CANOR AI 1.20 Integreret forstærker
Sort
44.500,00 DKK
Gå til produktoplysninger

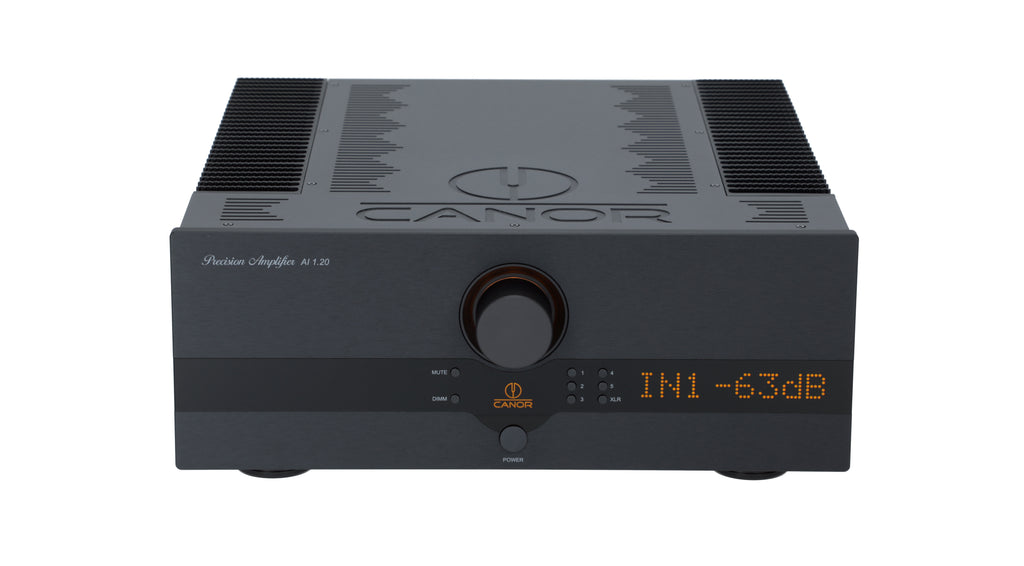

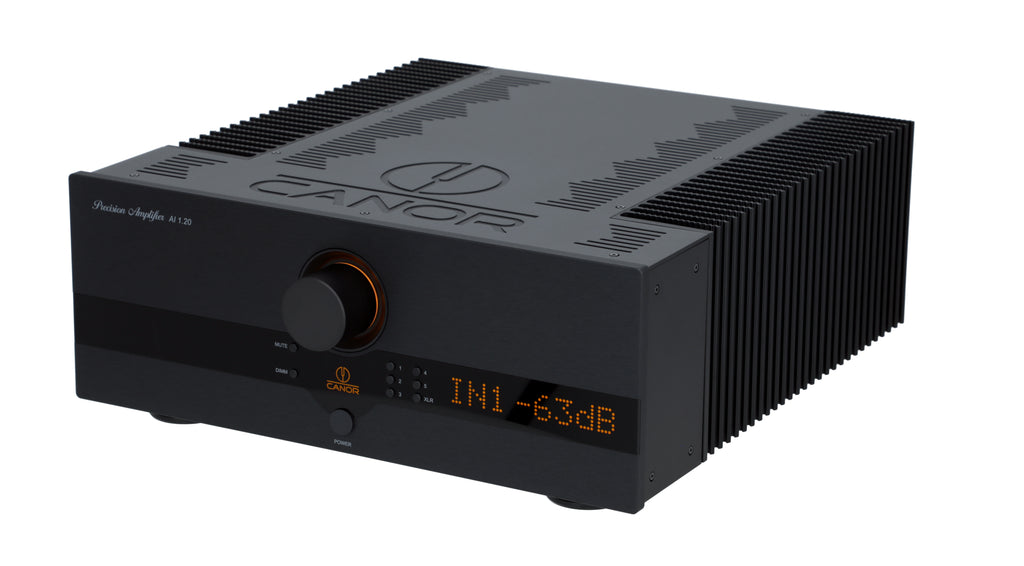

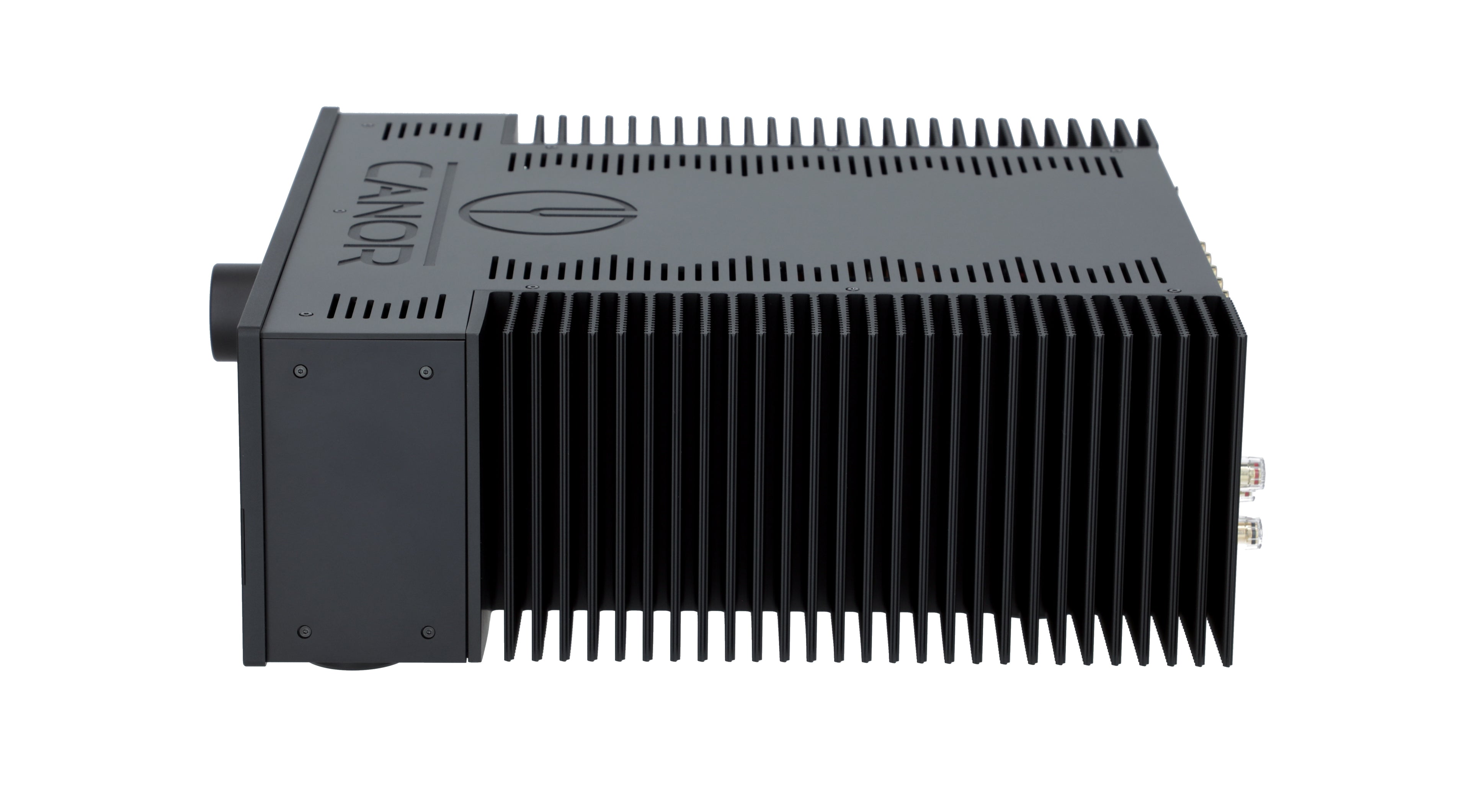

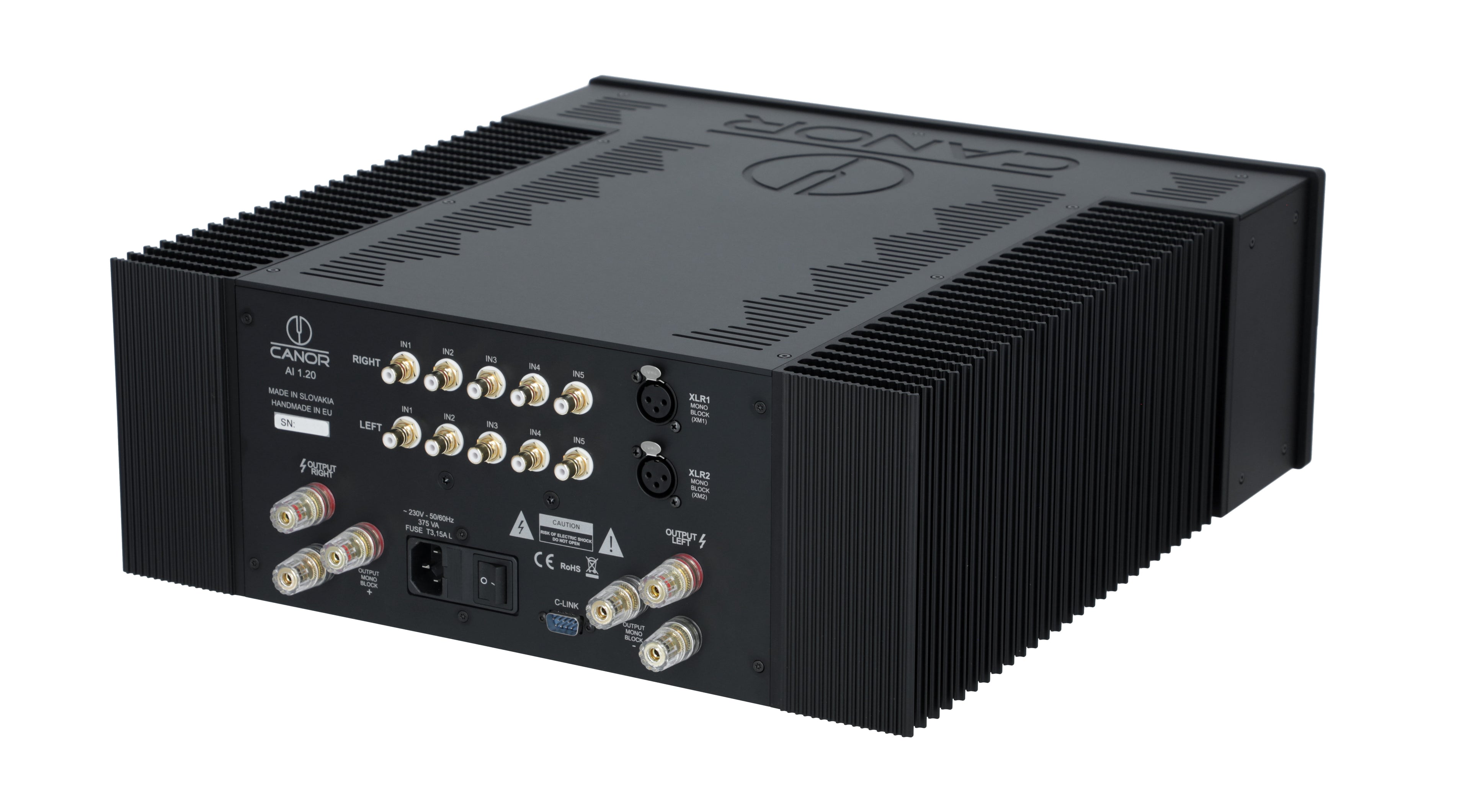

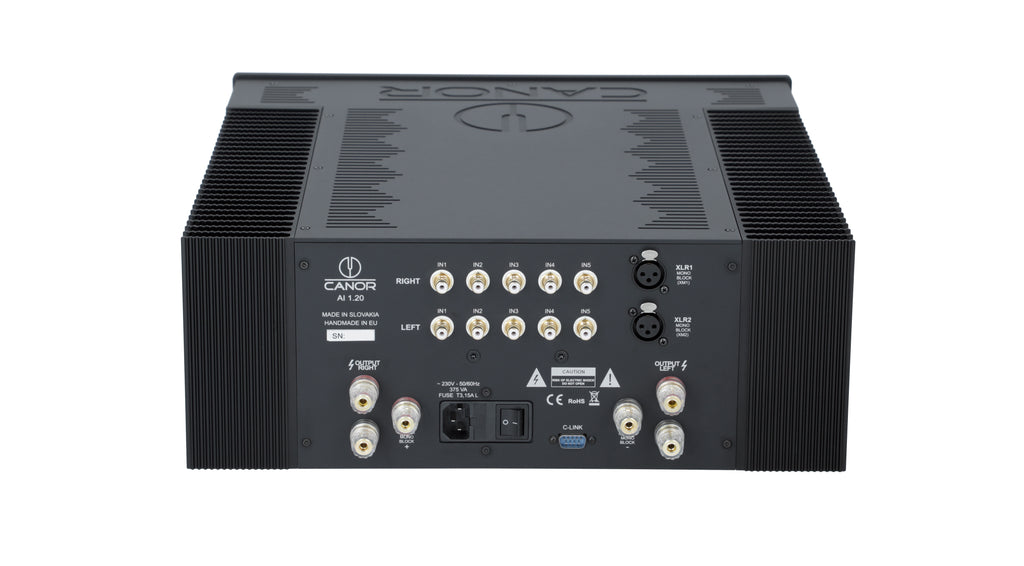

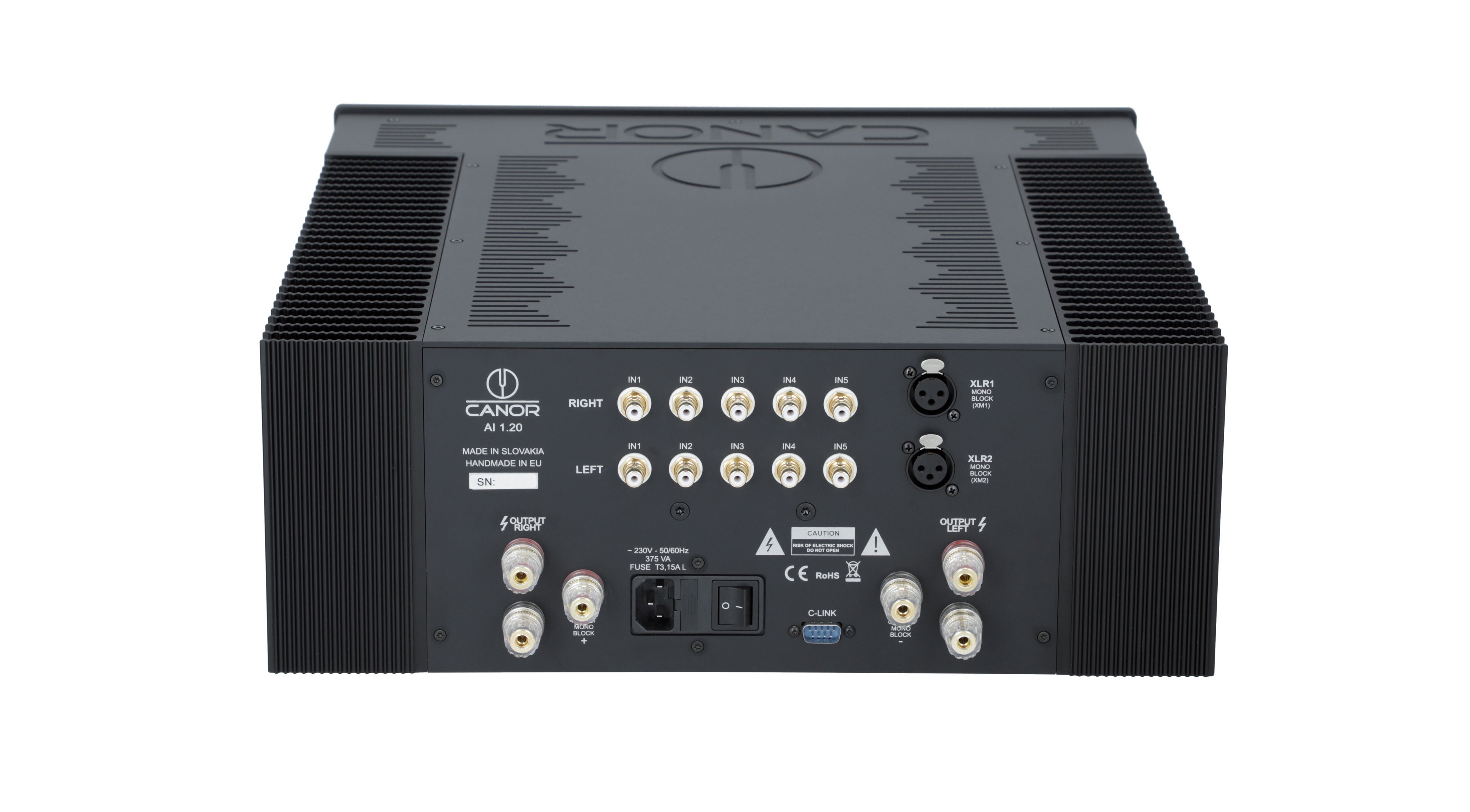

CANOR AI 1.20 Integreret forstærker
44.500,00 DKK
CANOR AI 1.20 is an integrated solid-state amplifier in pure class-A up to 50 W per channel with a relay attenuator with two standalone blocks for each channel.
Product features
- an integrated solid-state amplifier in pure class-A up to 50 W per channel
- a relay attenuator with two standalone blocks for each channel
- PCB’s utilize our premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
- CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
- power supply units with filtered out interfering signals from the mains supply
- interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
- 264 000 uF of filtering capacitance simulates a nearly stabilized supply voltage
- an option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel
Technical specifications:
| Stereo output power | 2 x 50 W / 4 Ω 2 x 30 W / 8 Ω |
| Monoblock output power |
1 x 130 W / 4 Ω 1 x 100 W / 8 Ω |
| Gain | 30 dB |
| Frequency range | 20 – 25 000 Hz -0,5 dB / 5 W |
| Input impedance | 30 kΩ |
| Inputs | 5 x RCA, 2 x XLR (XLR active only in monoblock connection) |
| Total Harmonic Distortion | <0,0009% / 1 kHz, 5 W |
| Signal-to-noise ratio | > 90 dB |
| Signal-to-noise ratio monoblock | > 100 dB |
| Filtration capacity | 132 000uF (per channel) |
| Damping factor at 4 Ω load at the output | 250 (based on measured output impedance) |
| Damping factor at 8 Ω load at the output | 500 (based on measured output impedance) |
| Power | 230 V / 50 Hz / 375 VA |
| Dimensions (w x h x d) | 435 x 170 x 485 mm |
| Weight (net) | 28 kg |
