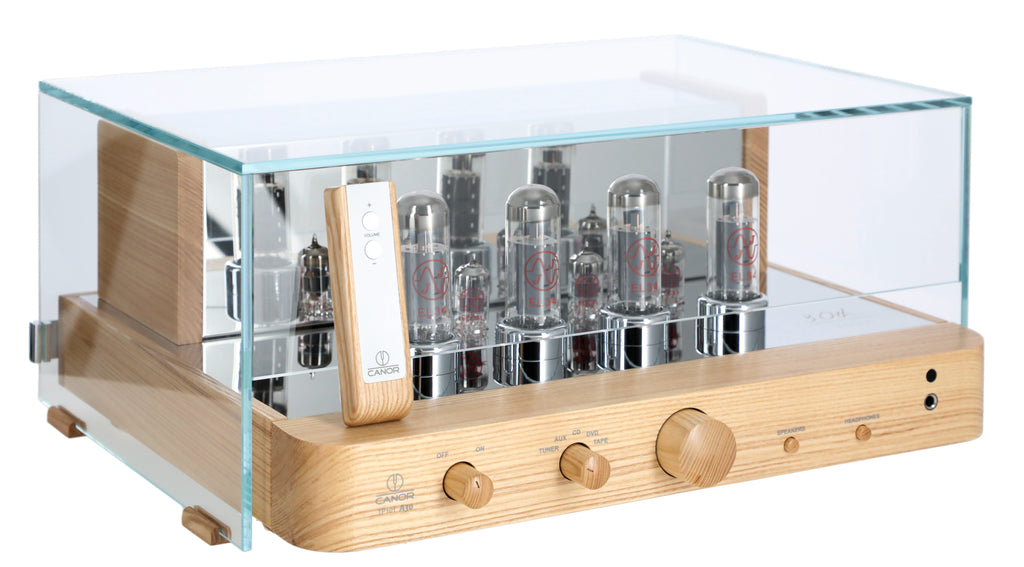

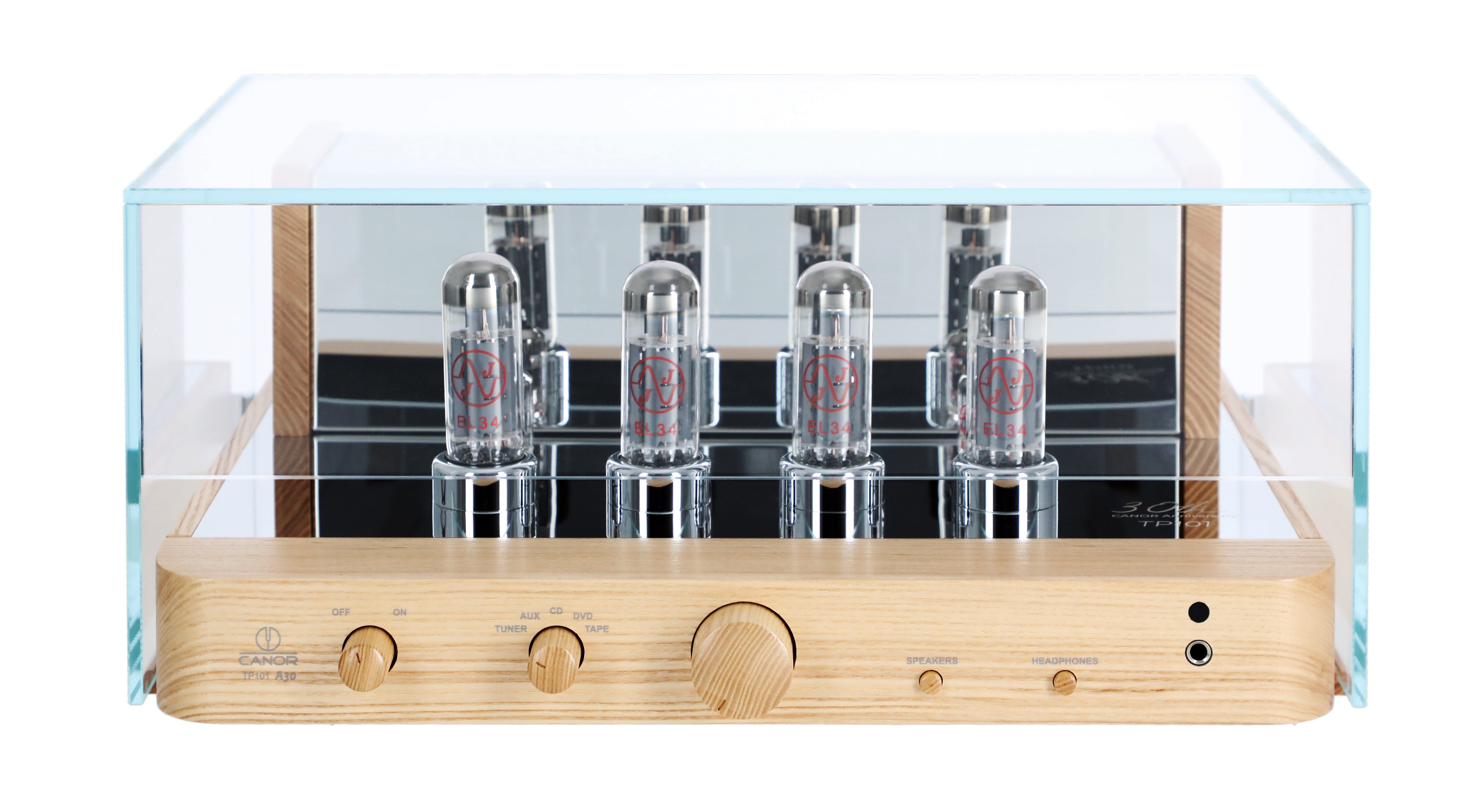

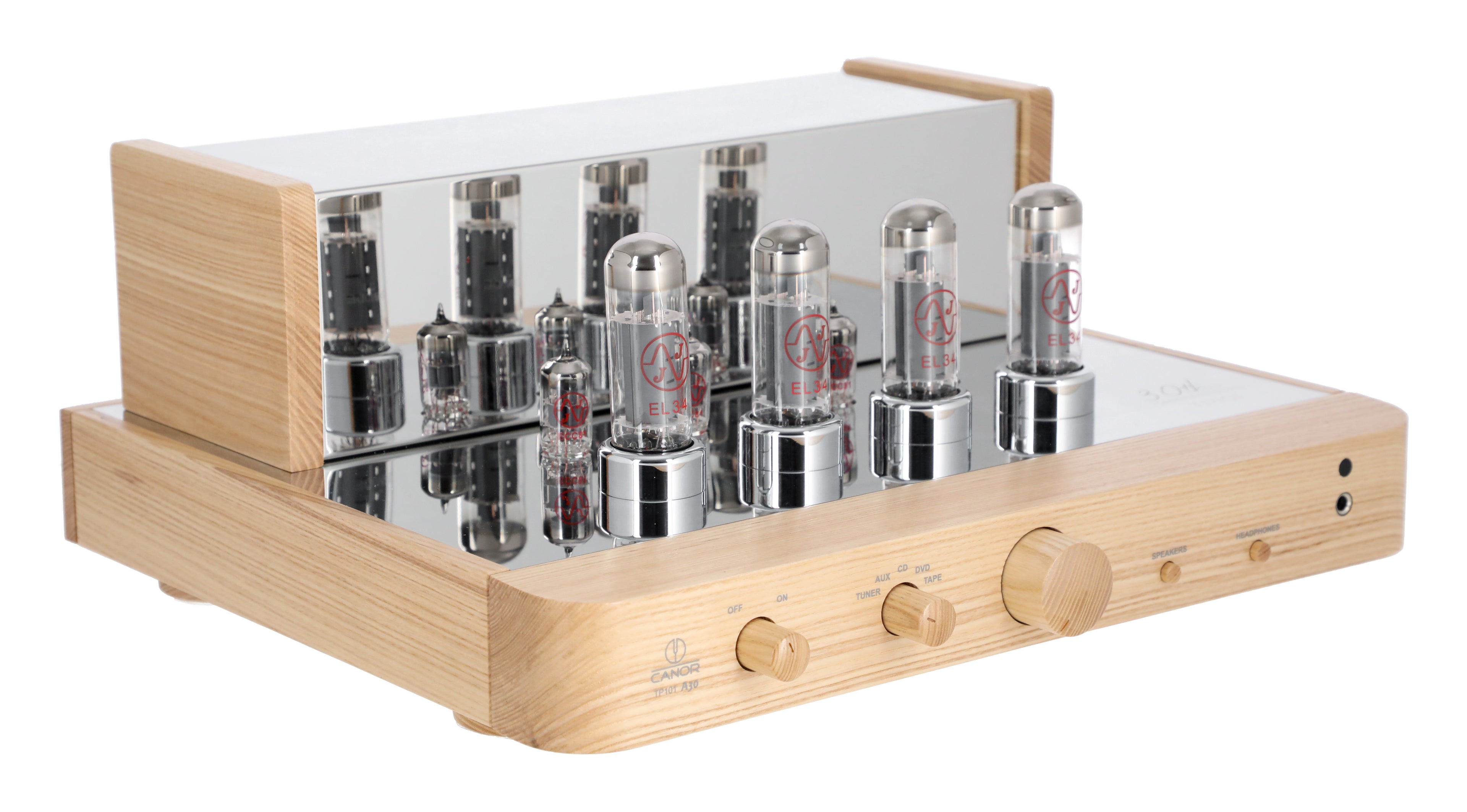

CANOR TP101 A30 Integreret Rørforstærker - 30th Anniversary Edition
56.500,00 DKK
Dette produkt kan købes ved personlig henvendelse!
The TP101 A30 pays tribute to CANOR's very first tube amplifier, built three decades ago with a passion for natural sound and uncompromising craftsmanship. Reimagined for today, it blends classic tube warmth with refined engineering, offering a modern listening experience rooted in tradition.
Pure sound. Nothing less.
At the heart of the TP101 A30 is a carefully tuned push-pull ultralinear class AB amplifier. Alongside custom-designed permalloy output transformers, the amplifier delivers an unmatched sound experience. The major innovation, the CMT, in TP101 A30, is significantly enhancing the amplifier's parameters.
Product features

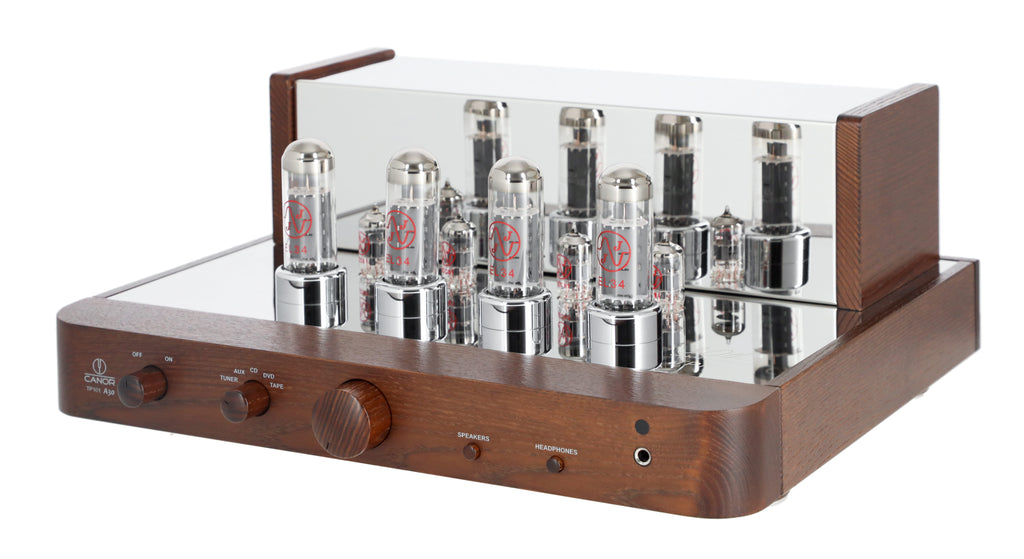

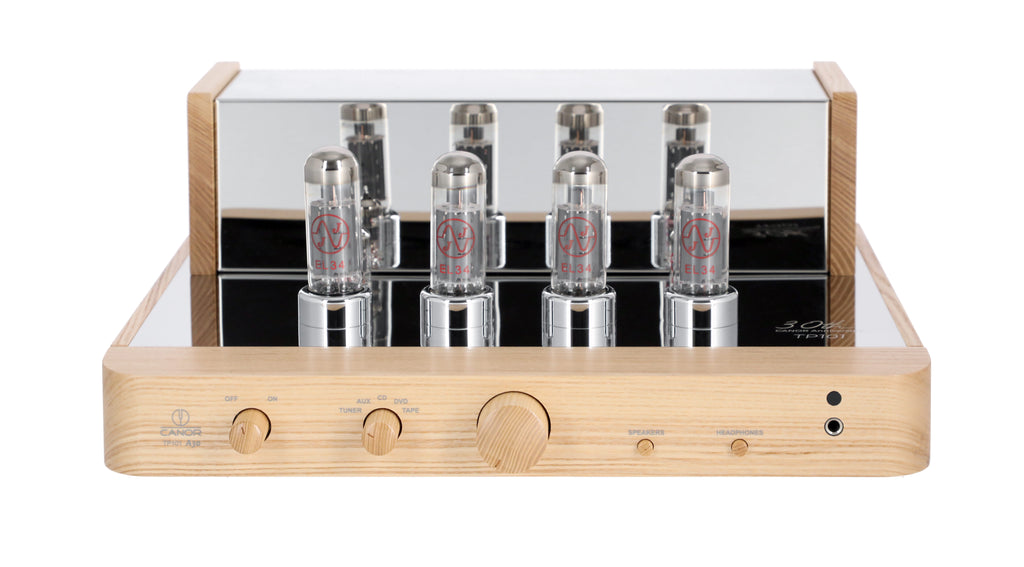

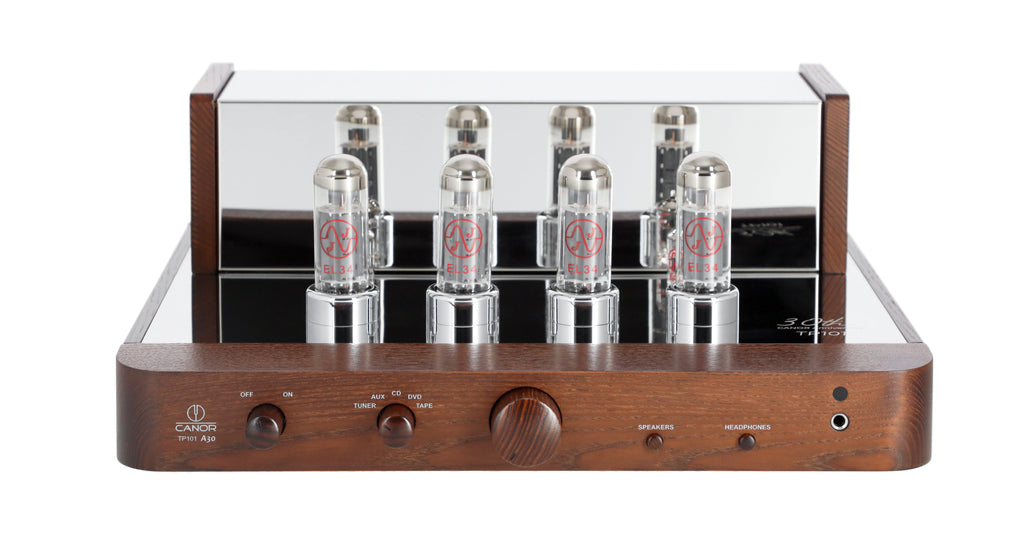

- An integrated tube amplifier based on EL34 tubes operating in class AB, providing an output power of 2 x 35 W.
- High input filtration capacity.
- The product uses premium, high-quality Mundorf coupling capacitors.
- Precise selection and tube pairing meet above-average parameters.
- Premium silver-plated internal signal wiring to preserve even the finest musical details.
- Special output permalloy transformers.
- High-end two-way Alps potentiometer.
- PCBs utilize our premium CMT ™ technology.
Technical specifications:
| Stereo Output Power | 2 x 35 W / 4, 8 Ω (1 %) |
| Headphone Output Power | 2 W / 30 Ω (< 1 %) 4 W / 300 Ω (< 1 %) |
| Gain | 30 dB (at 4 Ω) 33 dB (at 8 Ω) |
| Input Sensitivity | 380 mV |
| Frequency Range | 18 – 55 000 Hz -0.3 dB |
| Damping Factor | 6.5 / 4 Ω load 7 / 8 Ω load |
| Input Impedance | 30 kΩ |

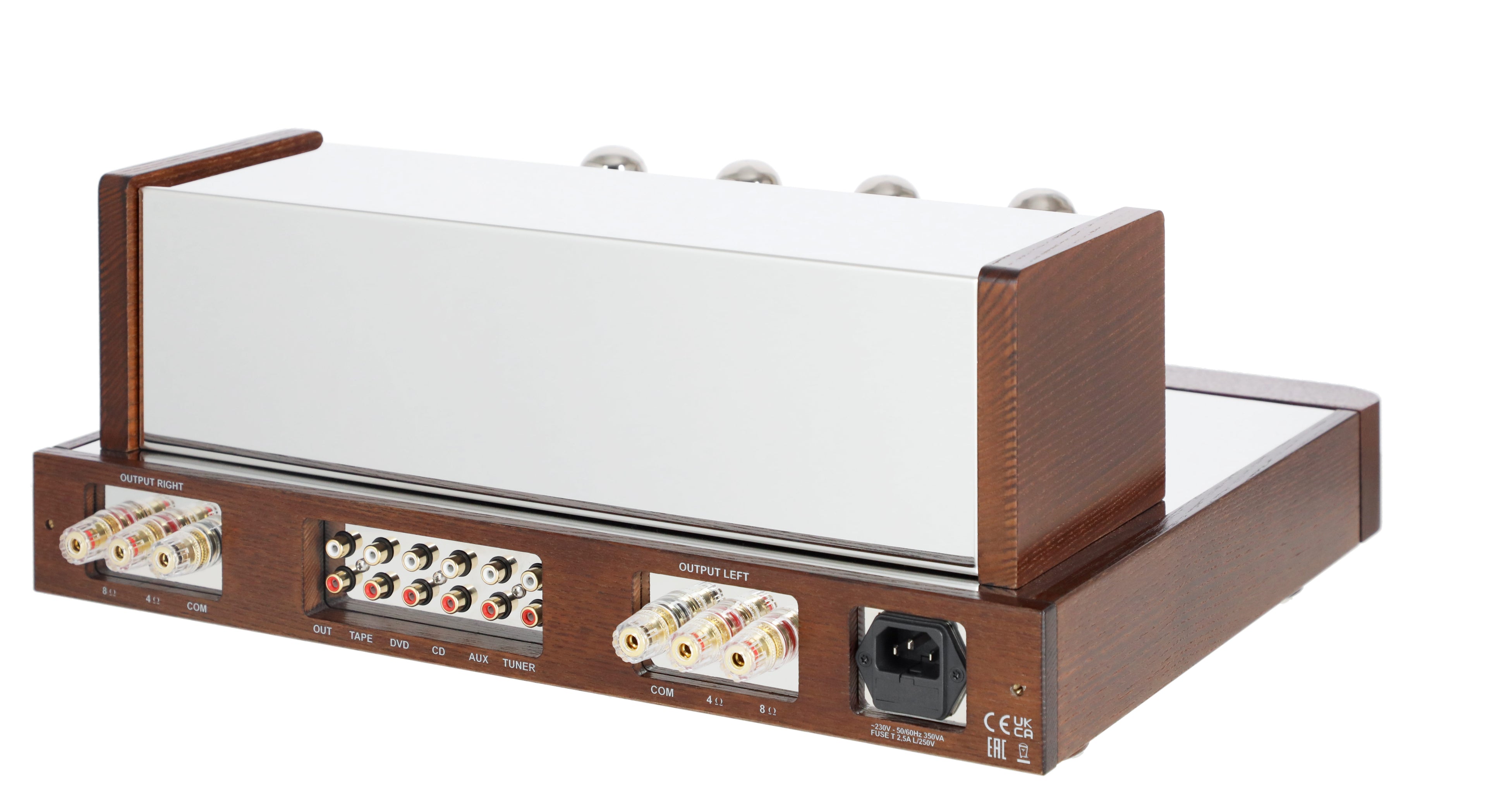

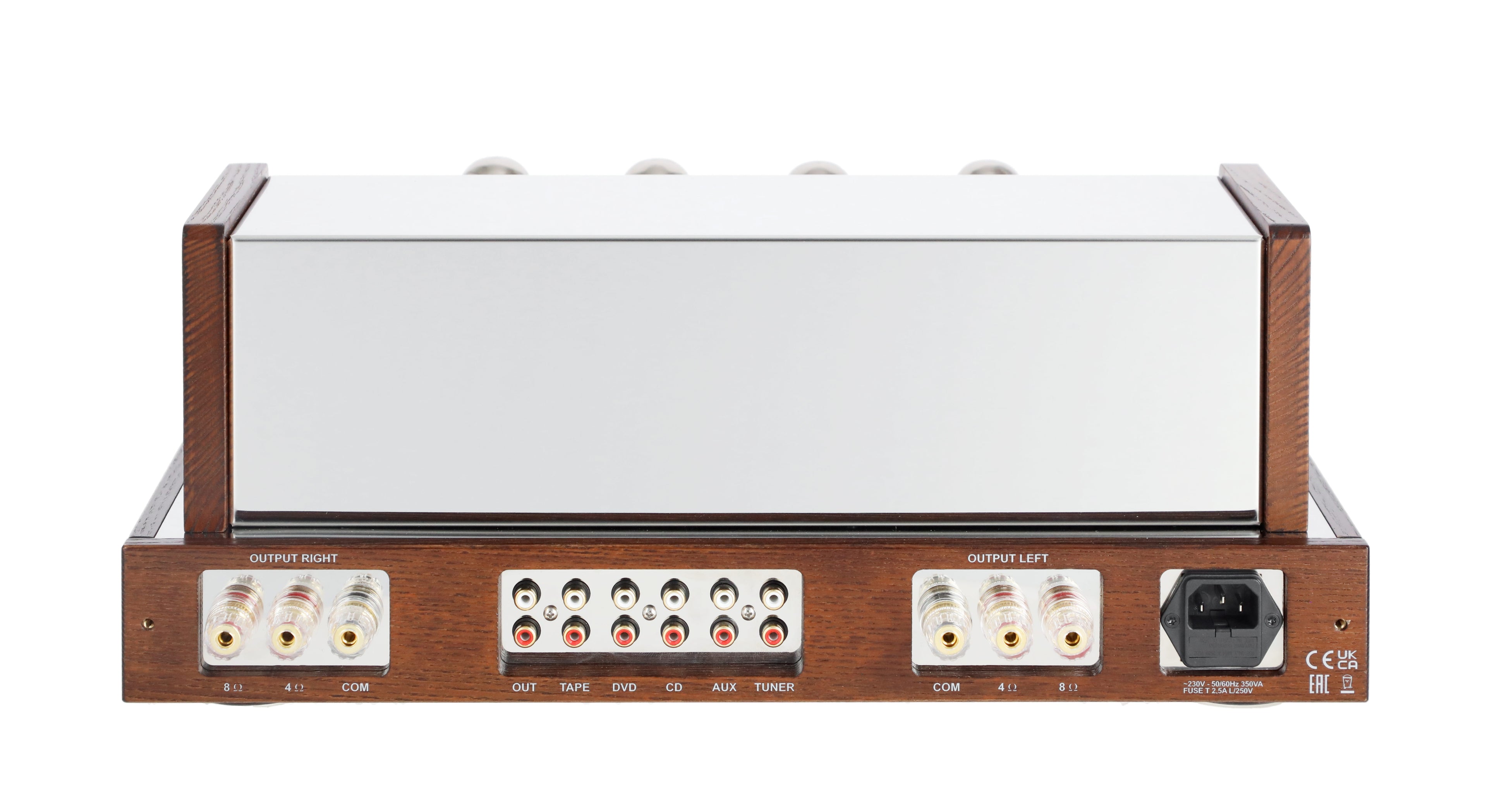

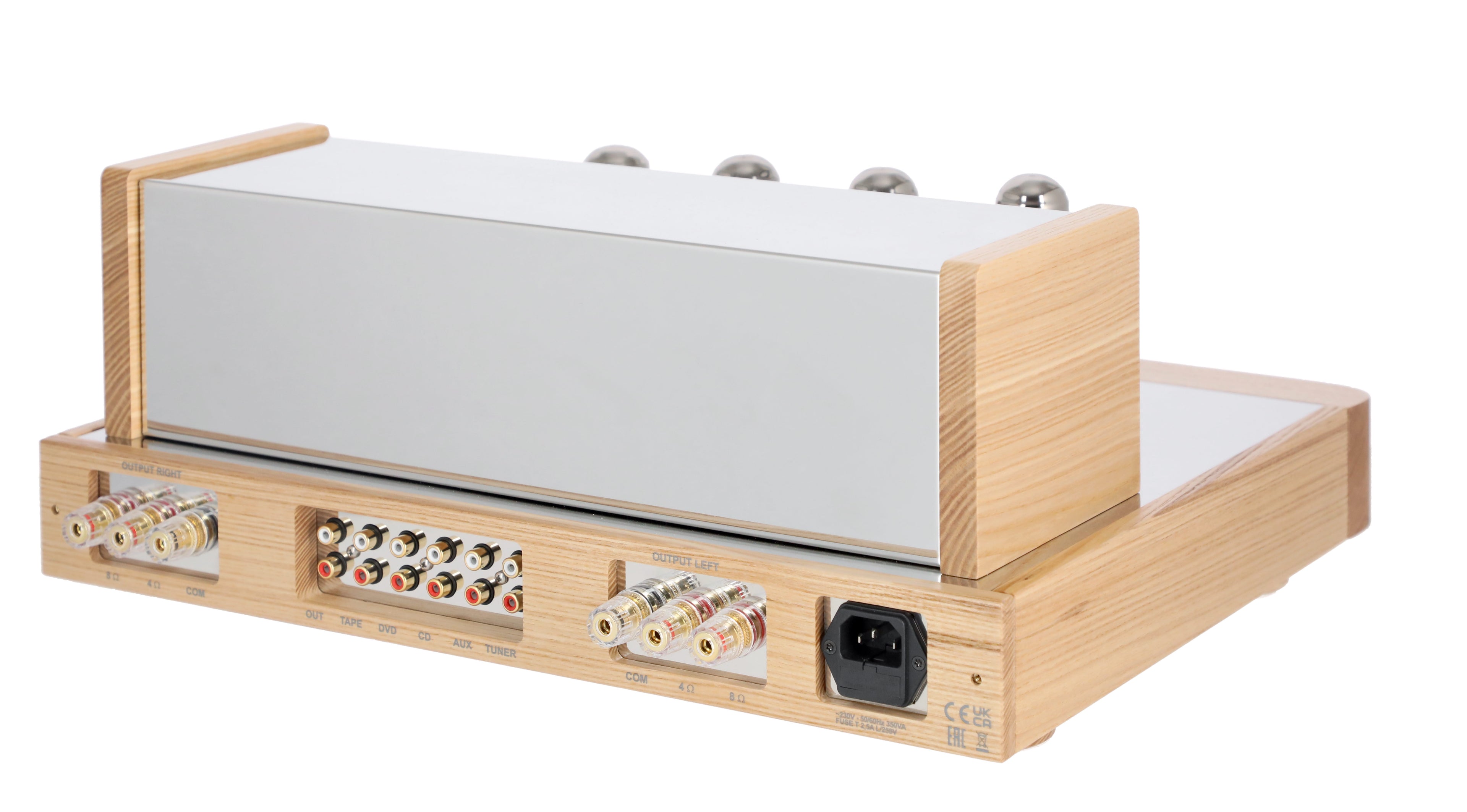

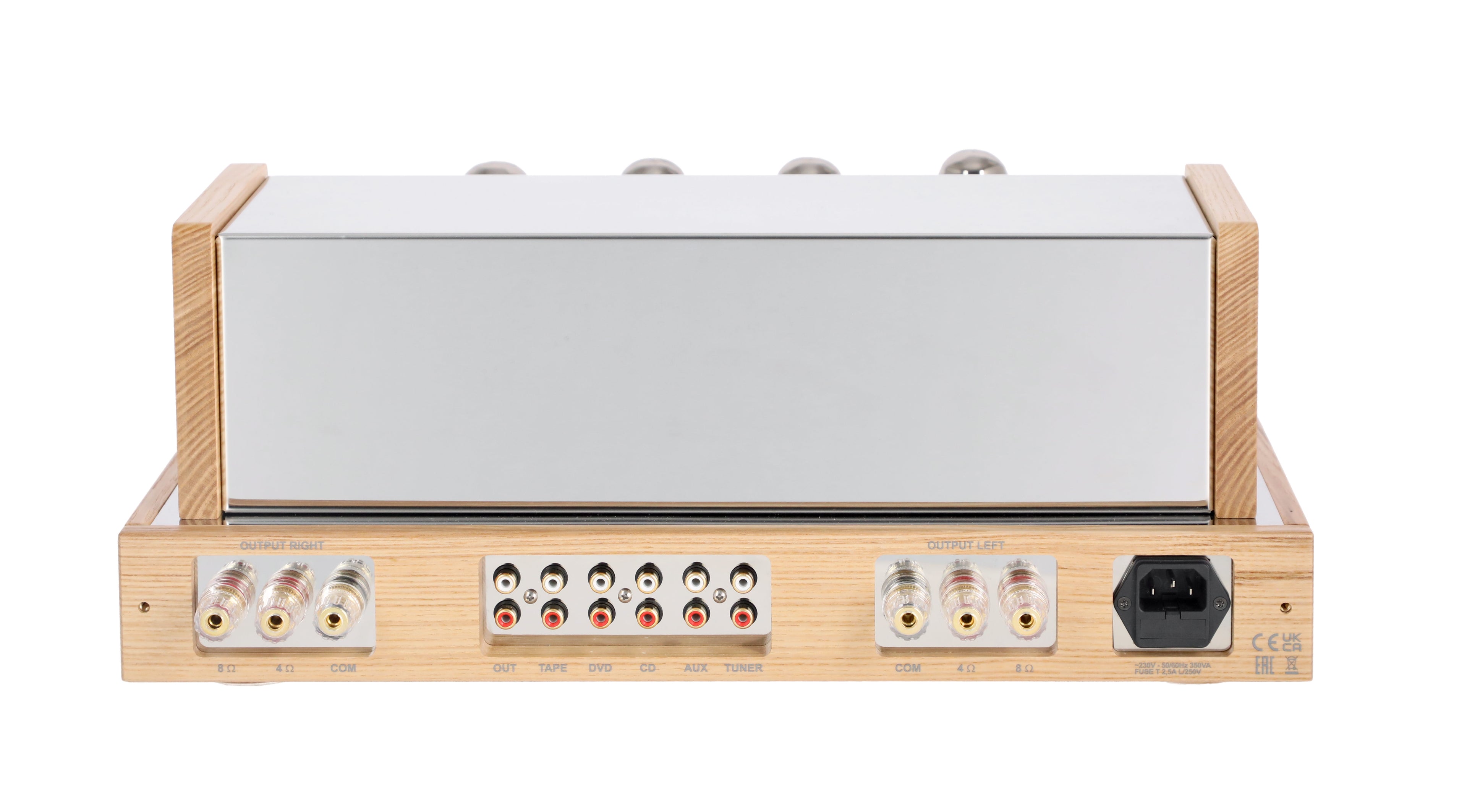

| Analog Inputs | 5 x RCA pair |
| Analog Outputs | 1 x RCA pair (Fix Out) |
| Headphone Output | 1 x 6.3 mm jack |
| Total Harmonic Distortion | < 0.025 % / 8 Ω (1 kHz, 1 W) < 0.1 % / 8 Ω (1 kHz, 5 W) |
| Signal-to-noise ratio | > 96 dB |
| Tube Complement | 4 x ECC81, 4 x EL34 |
| Power | 230 V / 50-60 Hz / 290 VA |
| Dimensions (W x H x D) | 450 x 185 x 390 mm |
| Weight (Net) | 23 kg |
| Weight (Gross) | 35 kg |
