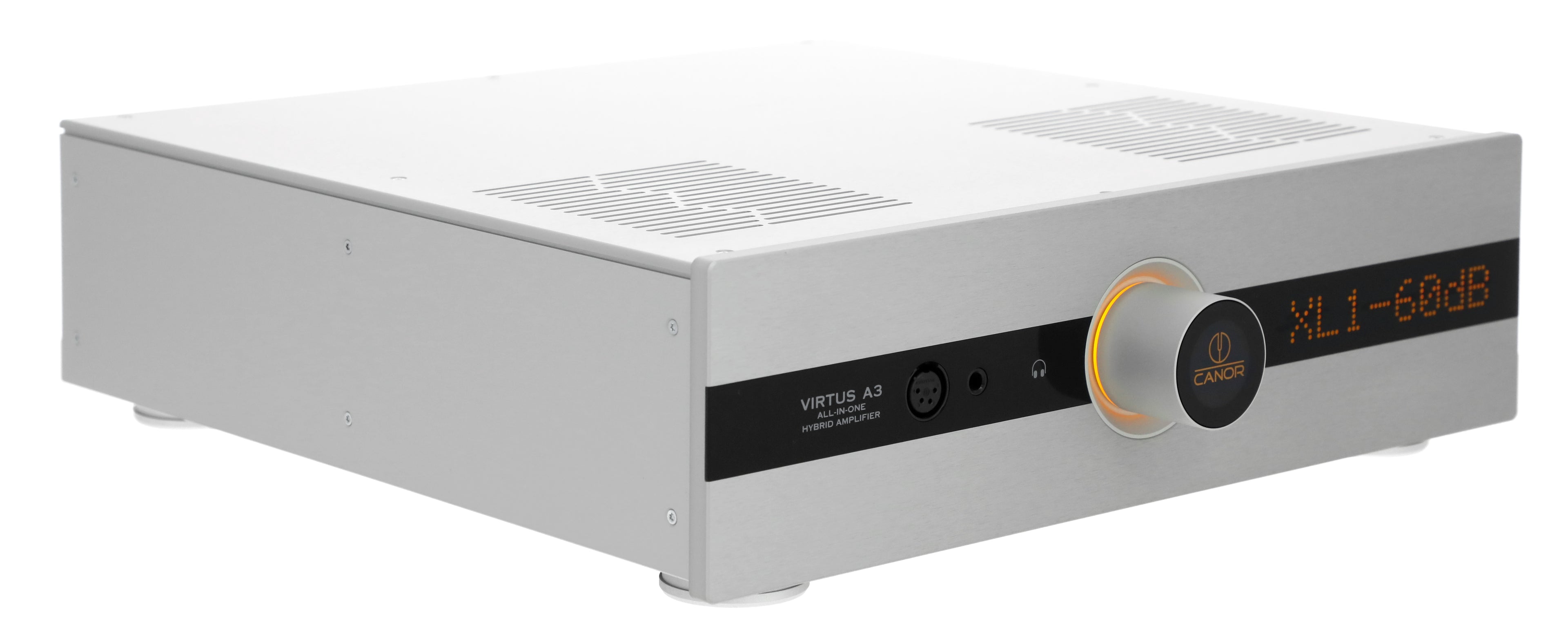

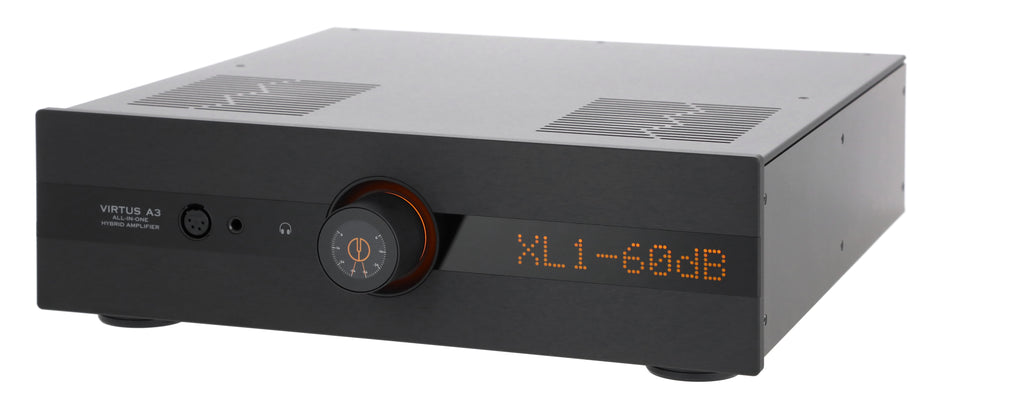

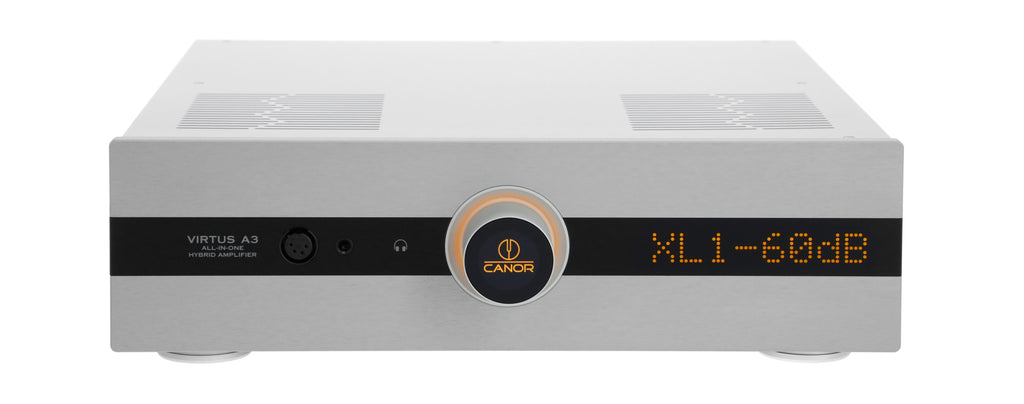

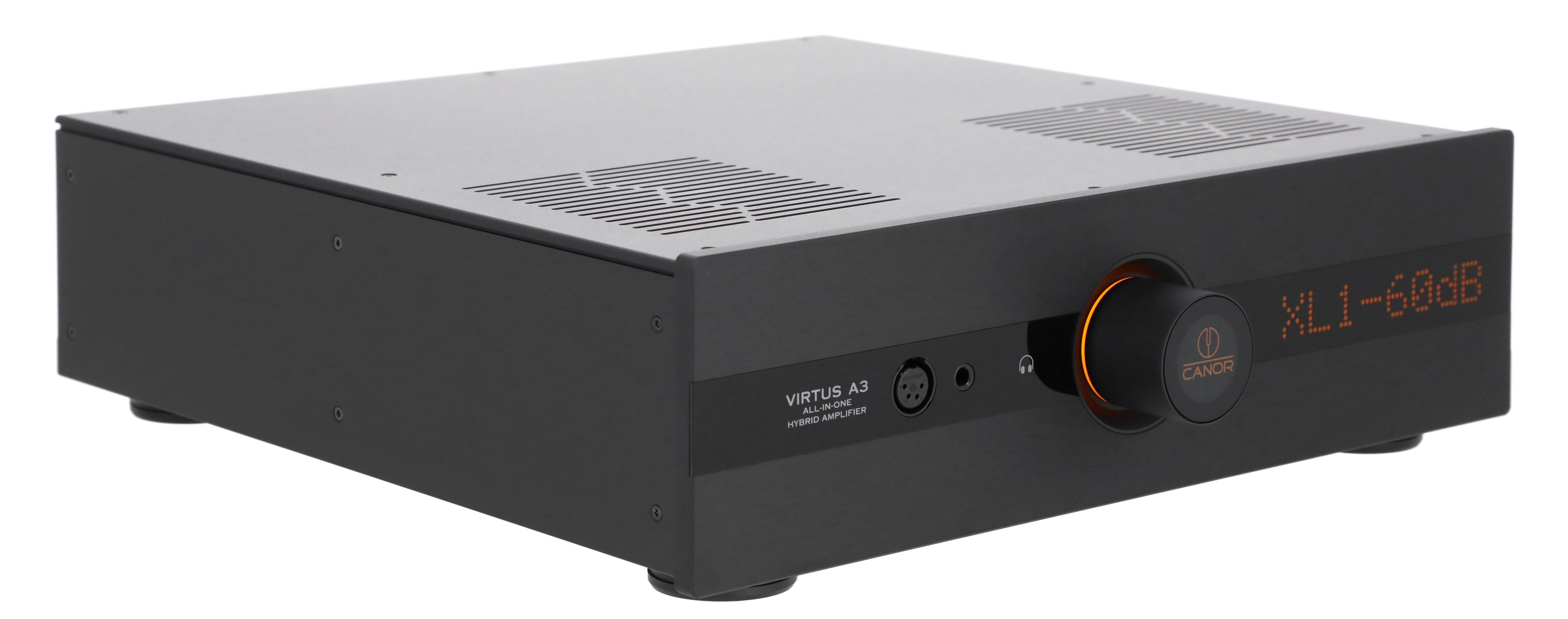

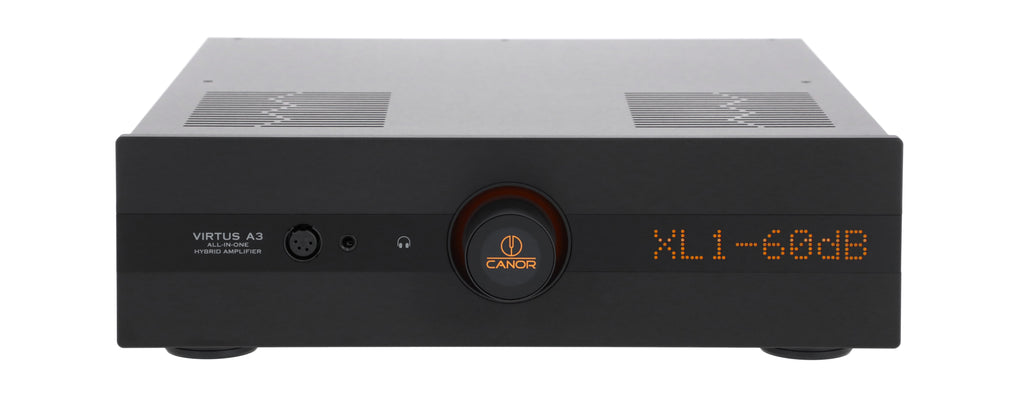

CANOR Virtus A3 Integreret Hybrid Rørforstærker m/DAC, Riaa, Hovedtelefon
37.500,00 DKK
Virtus A3 is an All-In-One Dual Mono Hybrid Class A/AB Amplifier with a full suite of digital and analog inputs, integrating a power amplifier, phono preamplifier, headphone amplifier, and DAC.
Product Features
- Four products in the single housing – a Hybrid Power Amplifier of class A/AB, a Phono Preamplifier, a Headphone Amplifier, and a DAC.
- The analog and digital signal paths are designed in dual mono configuration with fully independent multi-stage regulated power supplies for each channel.
- A fully discrete Phono Preamplifier supports both MM and MC cartridges.
- A discrete fully symmetrical balanced headphone amplifier stage for both Single-Ended and Balanced headphone outputs is included.
- The Virtus A3 also offers Class A Single-ended and Balanced Preamplifier line outputs to facilitate additional external Power Amplifiers supporting Active speaker or Sub-Woofer systems.
- A custom-designed highly efficient cooling system using heat pipe heatsinks.
- The control knob is securely housed in a precision double-row bearing.

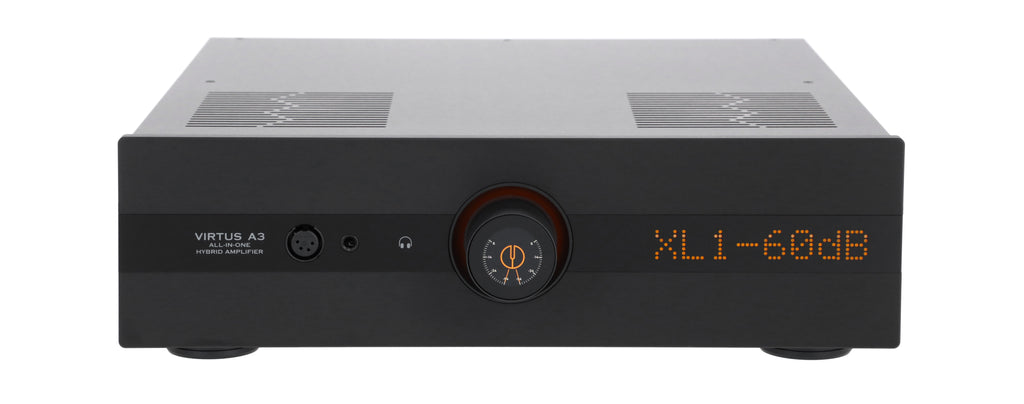

- A touch display located in the control knob provides easy and intuitive access to all device features and settings.
Technical specifications:
| Stereo Output Power | 2 x 150 W / 4 Ω (IHF Dynamic Power) 2 x 100 W / 8 Ω (IHF Dynamic Power) |
| Headphone Unbalanced Output | 500 mW / 30 Ω 70 mW / 300 Ω |
| Headphone Balanced Output | 500 mW / 30 Ω 270 mW / 300 Ω |
| Gain | 34.5 dB |
| Input Sensitivity | 550 mV |
| Gain Phono | MM 40 dB MM 46 dB MC 60 dB MC 66 dB |
| Damping Factor | 180 / 4 Ω 380 / 8 Ω |
| Frequency Range | 10 – 35 000 Hz (± 0.5 dB / 5 W) |
| Input Impedance | 50 kΩ |

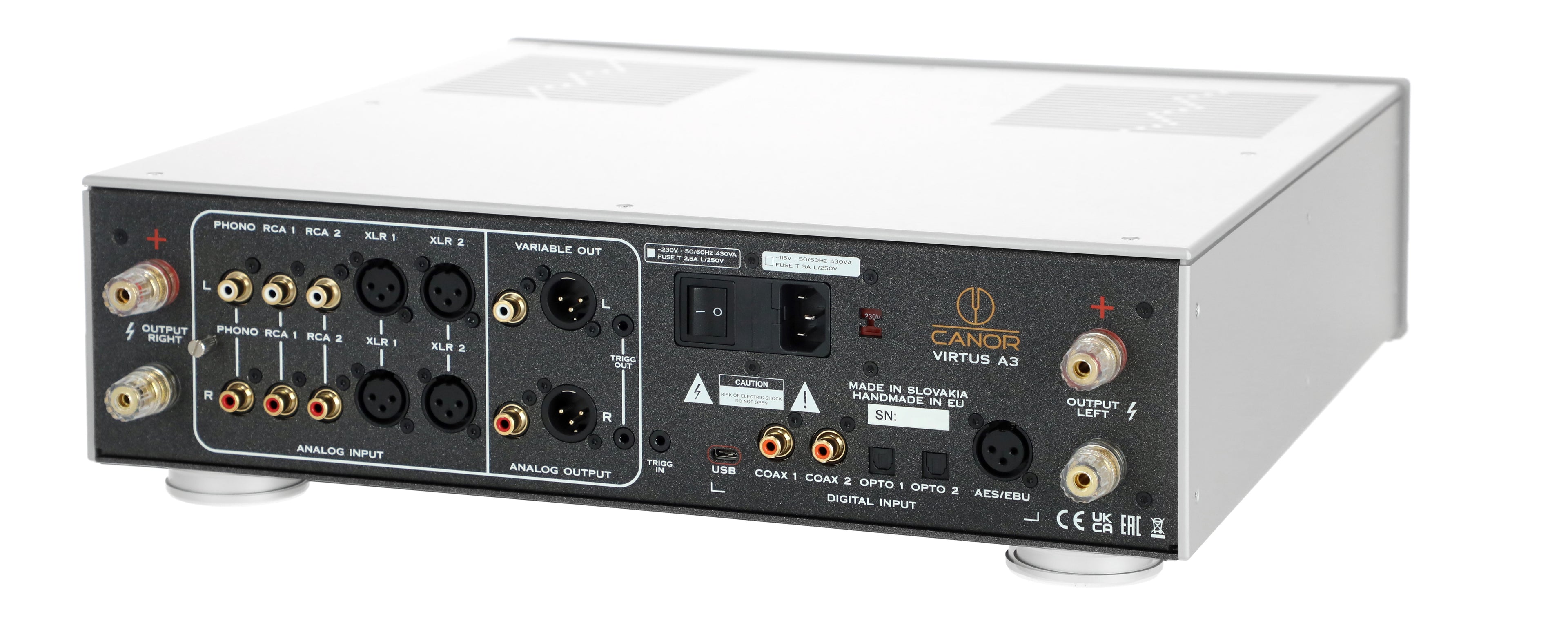

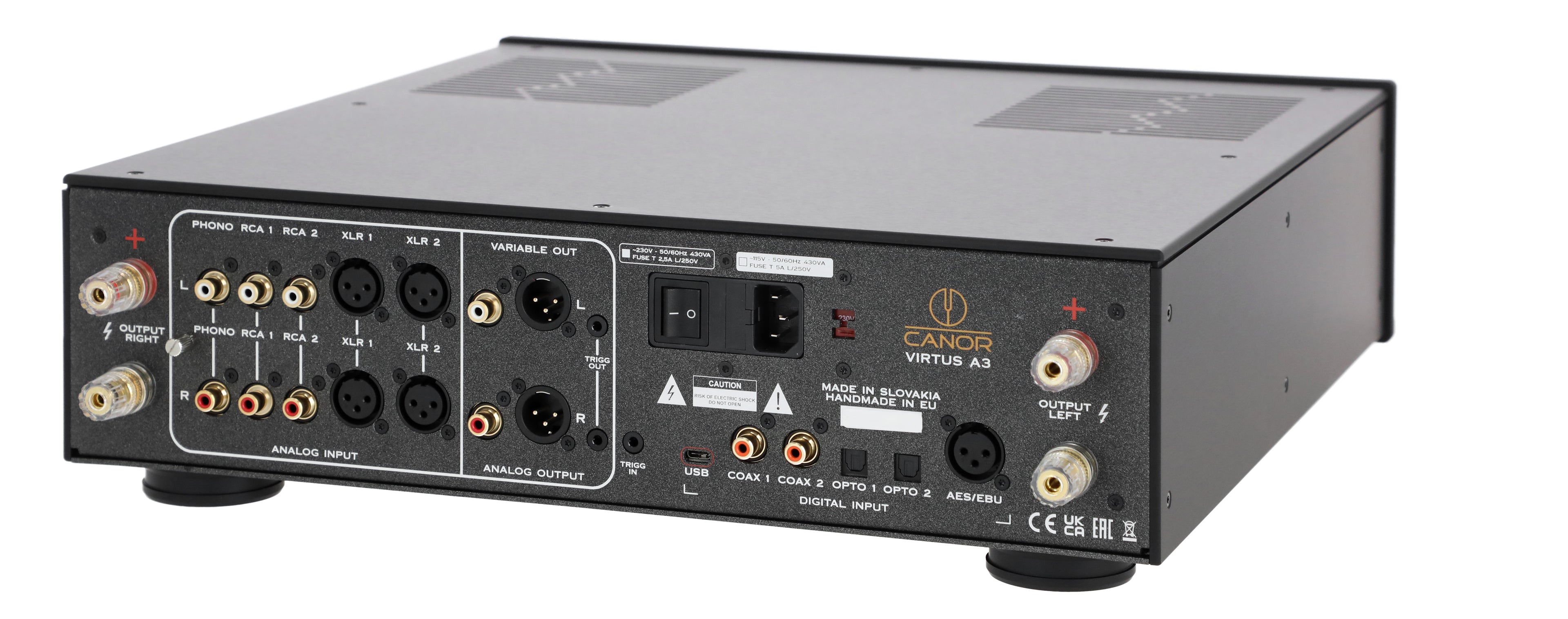

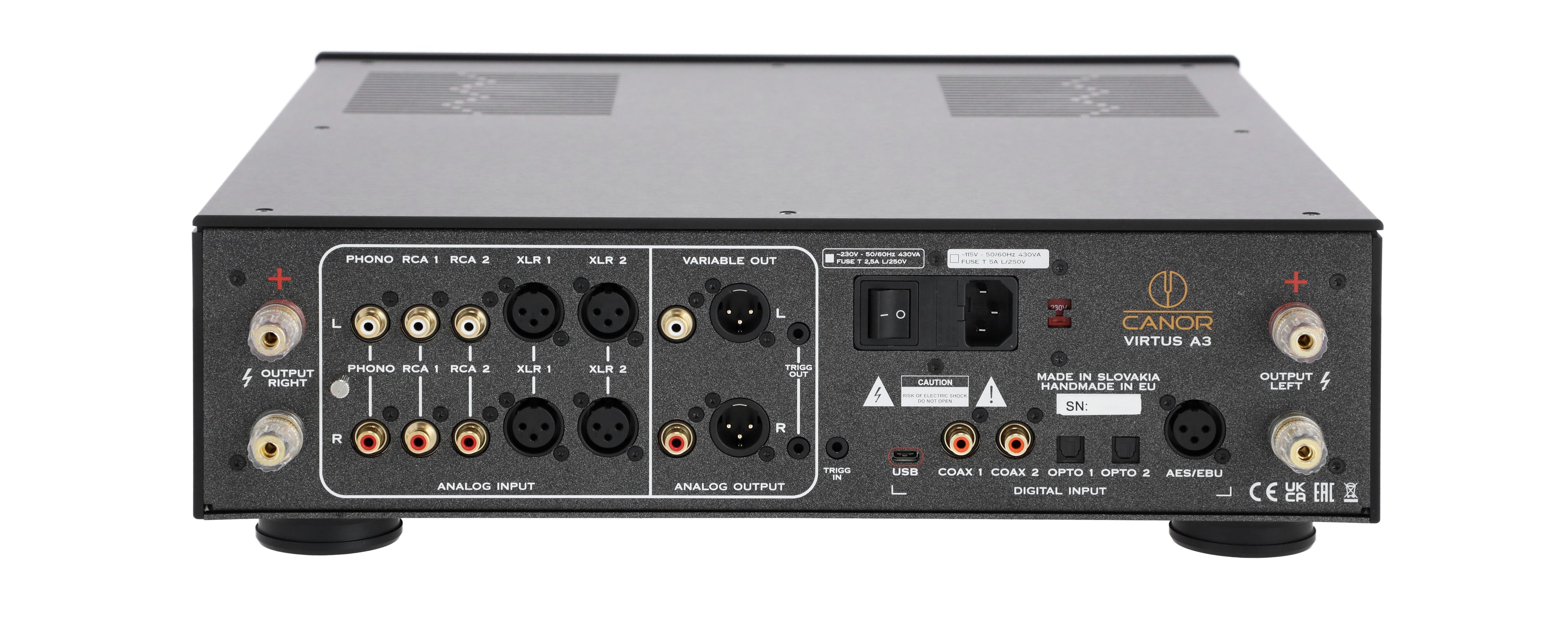

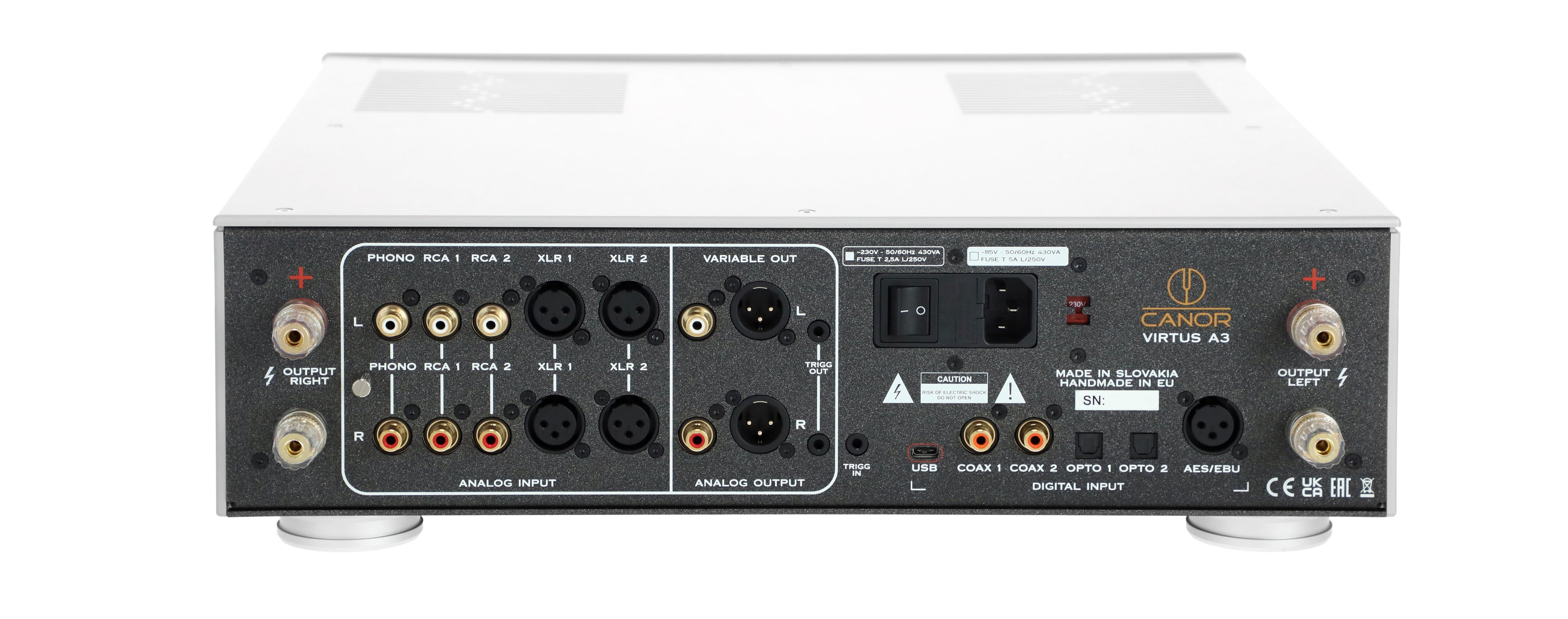

| Analog Inputs | 1 pair RCA (Phono) 2 pairs RCA 2 pairs XLR |
| Analog Outputs (Variable Out) | 1 pair RCA 1 pair XLR |
| Digital Inputs | 2 x COAX (PCM up to 24-bit / 192 kHz) 2 x OPTO (PCM up to 24-bit / 192 kHz) 1 x USB (PCM up to 32-bit / 768 kHz & Native DSD up to DSD512 & DoP up to 256) 1 x AES/EBU (PCM up to 24-bit / 192 kHz) |
| DAC Configuration | 2 x ES9038Q2M (Dual Mono) |
| Headphone Outputs | 6.3 mm jack 4-pin XLR |
| Total Harmonic Distortion | < 0.005 % / 1 kHz, 5 W < 0.008 % / 1 kHz, 1 W |
| Signal-to-noise ratio | > 90 dB (20 Hz – 20 kHz) |
| Tube Complement | 2 x E88CC |
| Trigger Connectors (12 V) | 1 x IN (3.5 mm jack) 2 x OUT (3.5 mm jack) |
| Power | 115 / 230 V, 50 – 60 Hz, 820 VA |
| Dimensions (W x H x D) | 435 x 130 x 460 mm |
| Weight (Net) | 18 kg |
| Weight (Gross) | 23 kg |
