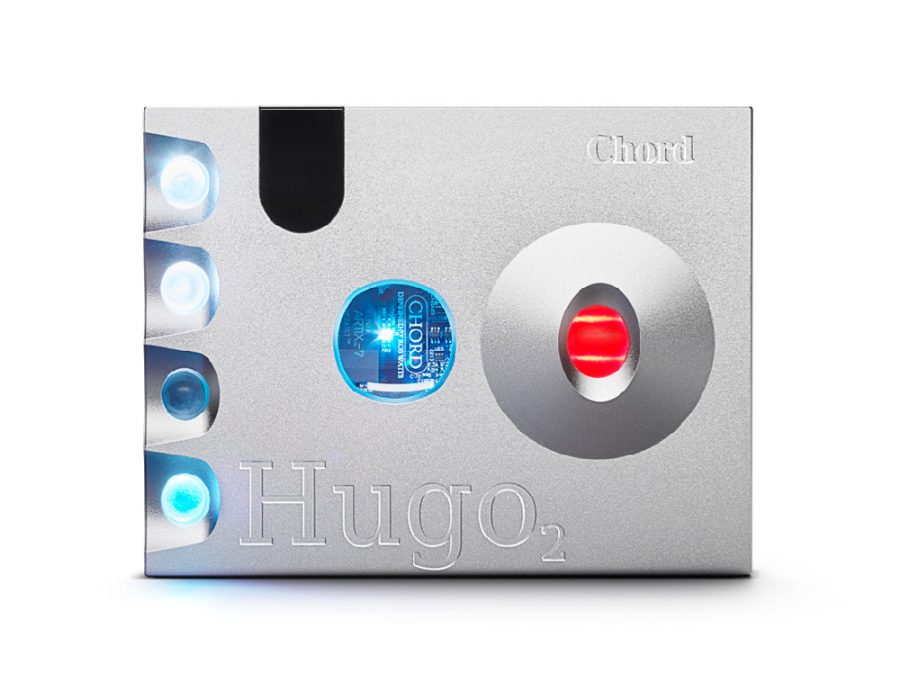

Chord HUGO 2 Transportable DAC/Headphone Amplifier!

"Bedste DAC over 1200£ - for 3. år i træk – There’s nothing else anywhere near this price that’s as good!" Igen i 2020 blev Hugo2 "Best DAC over GBP 1200" hos What HiFi? Hugo 2 is a powerful DAC and headphone amp that builds on the ground-breaking original. Designed for both home and mobile use, Hugo 2 transforms headphones and audio systems’ sound quality with its cutting-edge proprietary DAC technology.

Læs mere her: https://chordelectronics.co.uk/product/hugo-2/

Leveringstid: På lager.

Materials: Clamshell precision machined aluminium casing.

Battery: 2x Rechargeable custom Enix Energies 3.7v 9.6Wh Li-ion (lithium-ion (2600mAh) batteries*

Tap length filter: 49,152 – 10 element Pulse Array design

Play time: In excess of seven (7) hours

Charging: Nominal six (6) hours via Micro USB at 1.8amps (fast charge)

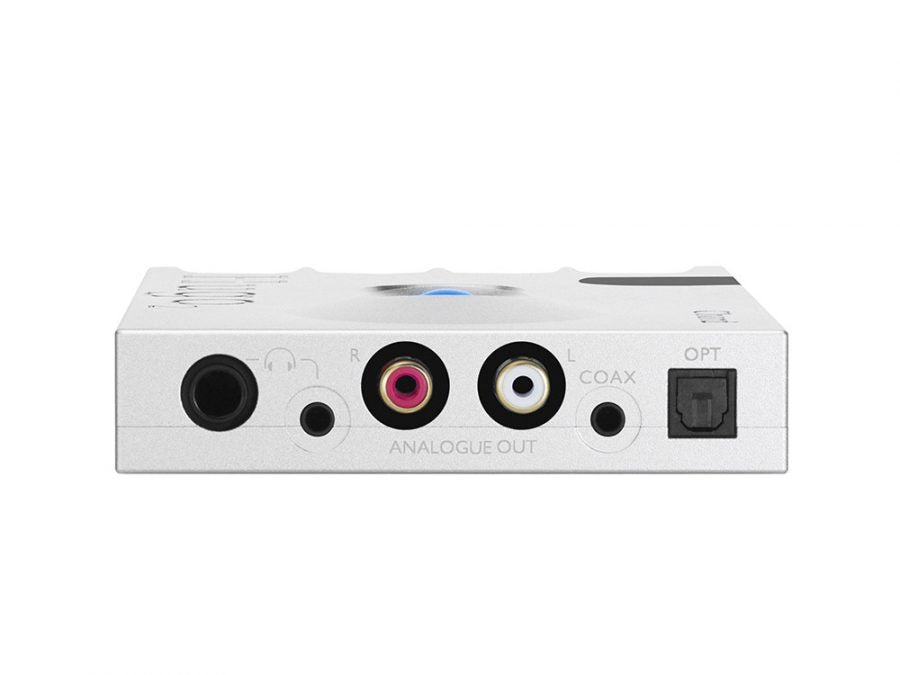

Connectivity (input): Micro USB (White): 44.1kHz to 768kHz – 16bit to 32bit

Coax via 3.5mm jack (Red): 44.1kHz to 384kHz – 16bit to 32bit

Coax via (same) 3.5mm jack (Dual data mode: Yellow): 44.1kHz to 768kHz – 16bit to 32bit

Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit

Connectivity (input wireless): Bluetooth (Apt X) (Blue): 44.1kHz to 48kHz – 16bit

1x 3.5mm jack headphone output

PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit

DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)

Line-level mode: Activated via dual press of middle ‘Source’ and ‘Crossfeed’ buttons. Line level = 3v via all outputs.

Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS

Filters (Digital):

Incisive neutral (Ultimate reference) (White)

Incisive neutral HF roll-off (High Frequency roll off) (Green)

Warm (‘Smooth’) (Orange)

Warmer HF roll-off (High Frequency roll off) (Red)

Crossfeed (Digital IIR):

Off – No Crossfeed

Level 1 – Light

Level 2 – Medium

Level 3 – Heavy

Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA

Tap-length: 49,152

Pulse array: 10 element pulse array design

Frequency response: 20Hz – 20kHz +/- 0.2dB

Output stage: Class A

Output impedance: 0.025Ω

THD: <0.0001% 1kHz 3v RMS 300Ω

THD and noise at 3v RMS: 120dB at 1kHz 300ohms ‘A’ wighted (reference 5.3v)

Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation

Signal to noise ratio: 126dB ‘A’ Weighted

Channel separation: 135dB at 1kHz 300Ω

Power output @ 1kHz 1% THD: 94mW 300Ω, 740mW 32Ω, 1050mW 8Ω
