A flagship phonostage preamplifier!
To meet the demands of vinyl lovers the world over, ESOTERIC has poured knowledge accumulated over many years of developing audio technology into the E-02, ESOTERIC’s newest phonostage preamplifier. The E-02 inherits the philosophy that guided our highly acclaimed E-03 phonostage to be a continual best-seller for the last decade and adds the new fully balanced transmission and amplification circuit utilizing MC cartridges to achieve a level of analog playback that was previously unimaginable.
Læs mere HER
Fully Balanced Circuit Design
The E-02 is a fully balanced phonostage preamplifier that features fully balanced circuits from the input stage right through to the final output stage. It is perfectly designed for handling the extremely low level signals from a MC cartridge, minimize noise interference and powerfully amplify signals with low impedance to bring the very best sound out of your beloved MC cartridge collection.
Dual Mono Construction

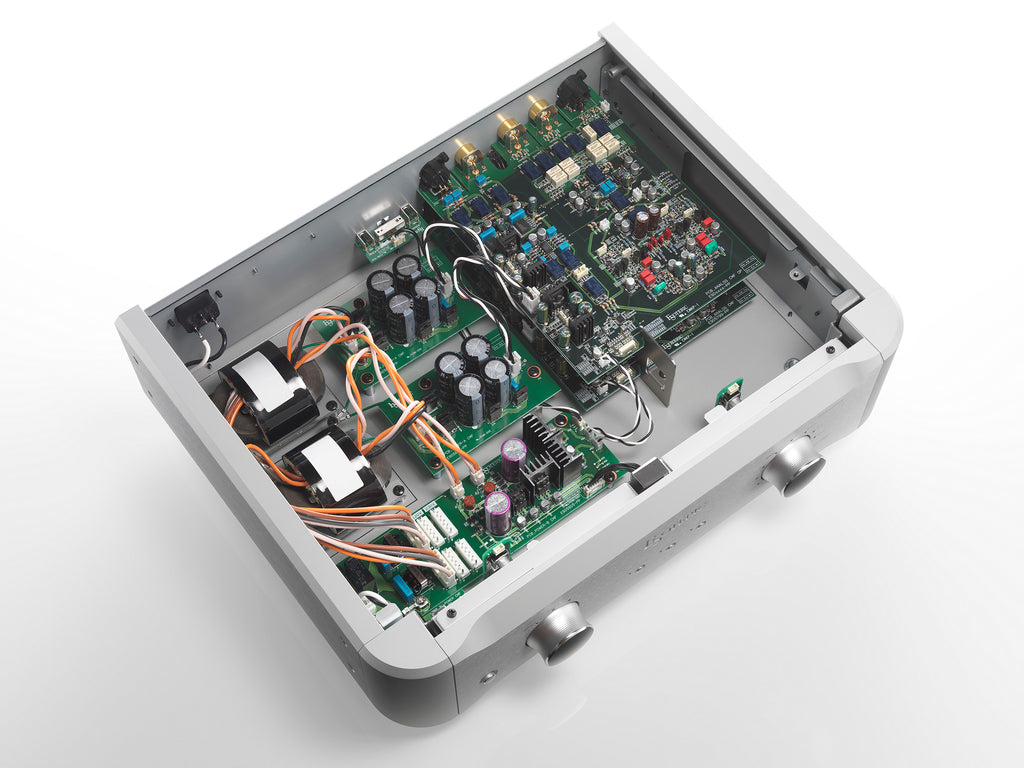

Identical power supply transformers, power boards and amplifier circuits are mounted independently on each channel. Outstanding channel separation and robust power supply components deliver solid, powerful, and exceptionally high quality audio playback.
Super High Quality MC Head Amplifier and RIAA Amplifier
The E-02 features a newly designed fully balanced MC head amplifier and RIAA amplifier. The NF-CR type RIAA amplifier achieves outstanding RIAA characteristics of ±0.2dB together with minimum Negative Feedback, and the high voltage power supply delivers an exceptionally wide dynamic headroom.
ES-LINK Analog Output

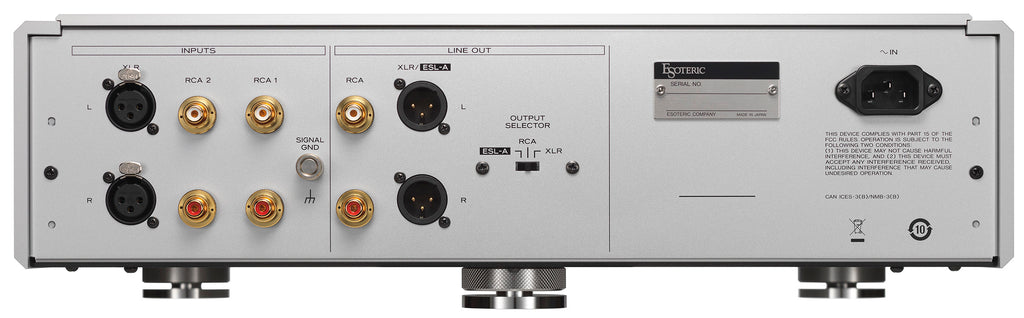

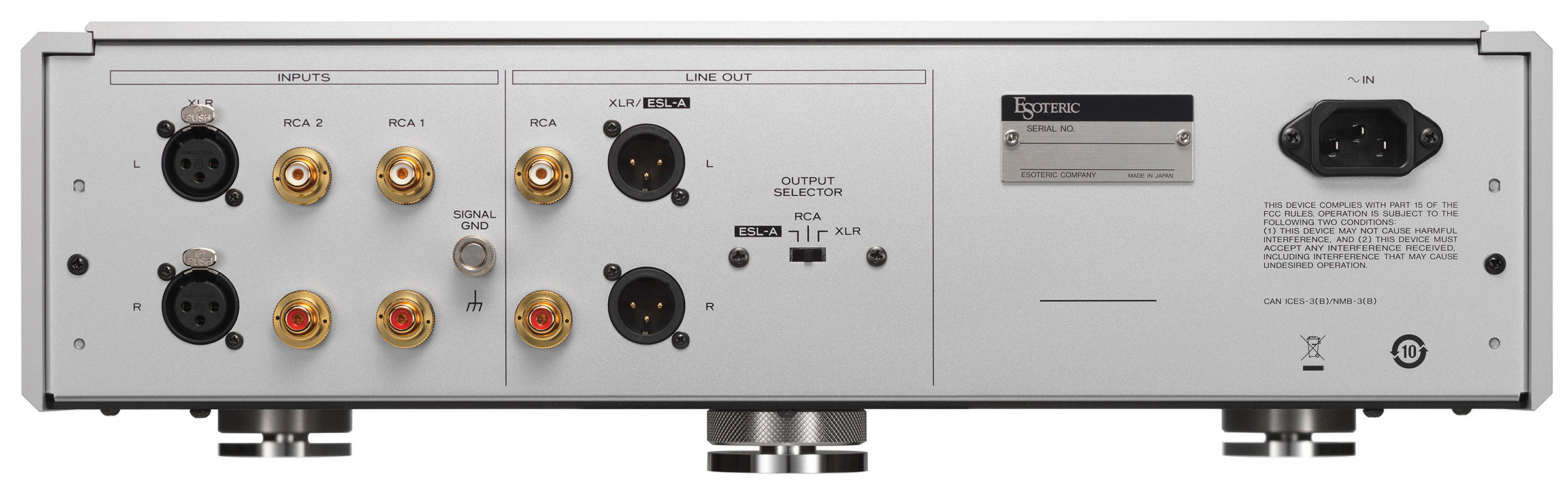

The E-02 is compatible with ESOTERIC's unique ES-LINK Analog current transmission in addition to regular XLR and RCA outputs. ES-LINK Analog is a current transmission method that fully utilizes the high speed and powerful capabilities of the HCLD circuit to fully maximize the potential of compatible devices.
Spec description
| Phono inputs | |
| XLR | 1 pair (exclusive for MC) |
| Input impedance | 10, 50, 100, 200, 300, 500, 1k, 10kΩ (MC, switchable) |
| Input sensitivity | 1mV (MC, 1kHz, at rated output) |
| Maximum input level | 4.8mV (MC, THD 0.1%) |
| RCA | 2 pairs (MC/MM) |
| Input impedance | |
| MC | 10, 50, 100, 200, 300, 500, 1k, 10kΩ (switchable) |
| MM | 47kΩ |
| Input sensitivity | |
| MC | 1mV (1kHz, at reated output) |
| MM | 20mV (1kHz, at rated output) |
| Maximum input level | |
| MC | 4.8mV (THD 0.1%) |
| MM | 100mV (THD 0.1%) |
| Analog audio outputs (switchable) | |
| XLR/ES-LINK Analog | 1 pair |
| Output impedance | 20Ω |
| Rated output level | 4Vrms |
| RCA | 1 pair |
| Output impedance | 23.5Ω |
| Rated output level | 2Vrms |
| General | |
| Power supply | |
| AC 230V, 50Hz | |
| AC 120V, 60Hz | |
| AC 220V, 60Hz | |
| External dimensions (W×H×D) | 445 × 131 × 377mm 17-⅝" × 5-¼" × 14-¼" (including protrusions) |
| Weight | 12.5kg / 27-⅝ lb |
