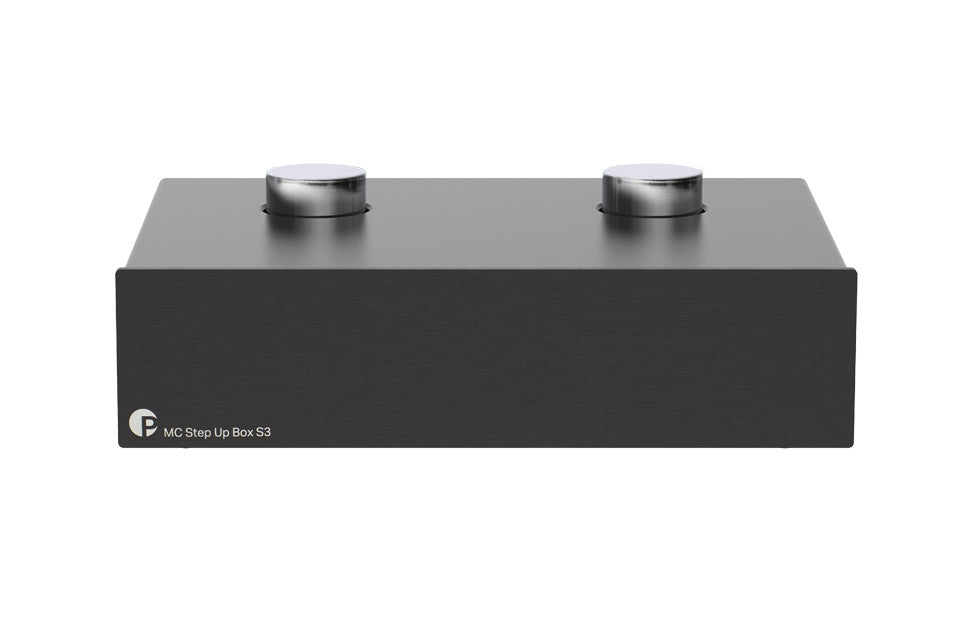

Pro-Ject MC Step Up Box S3 - Step Up Transformer
Pro-Ject MC Step Up Box S3 - Step Up Transformer
Oplev en markant forbedring i din musikoplevelse med Pro-Ject Audio Systems' MC Step Up Box S3. Denne step-up transformer for MC cartridges er designet til at levere en overlegen lydkvalitet og en helt ny lyddynamik til dit anlæg. Udført i solidt aluminium og tilgængelig i både sølv og sort.
Sound upgrade for your MC cartridge
The output level of MC cartridges is very low, compared to a MM (Moving Magnet) one it is about 10x lower, which means, you need a special phono amplifier. A higher gain is needed to utilize the signals, which can result in a higher noise level and distortion. The MC Step Up Box S3 is the solution.
Lively, dynamic & natural
The MC Step Up Box S3 works very differently compared to a phono preamplifier. The windings ratio of the transformer determines the gain factor. As it works completely passive and no external power is needed, no extra power can be produced. The increase in voltage is achieved by a coresponding decrease is current. As there is no amplification, the MC Step Up Box S3 has a remarkable noise performance and a very low level of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.
Gold plated
Premium RCA terminals
Gold plated in- and output RCA terminals for optimum signal transmission.

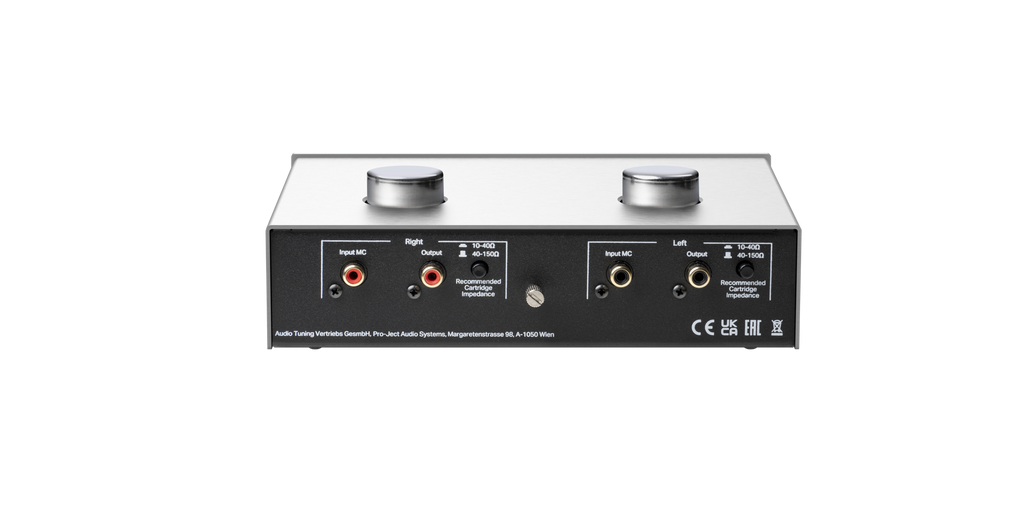

Impedance
Cartridge impedance setting
Cartridge impedance matching button on the back. Two different settings available: 10-40Ω & 40-150Ω
Made in EU
High-quality materials
The new Step Up Box S3 is carefully designed and handmade in Europe.
Technical Specifications
| Frequency response 10Hz - 55kHz: | +/- 1dB |
| Gain at 10-40 Ohm: | 21dB at 1kHz |
| Transformation ratio: | 1:16 |
| Gain at 40-150 Ohm: | 24dB at 1kHz |
| Recommended load: | 47 kOhm / 100pF |
| Input MC: | 1x pair RCA phono sockets |
| Output: | 1x pair RCA phono sockets |
| Dimensions WxHxD: | 206 x 65 x 153 (164 with sockets) mm |
| Weight: | 940g |
