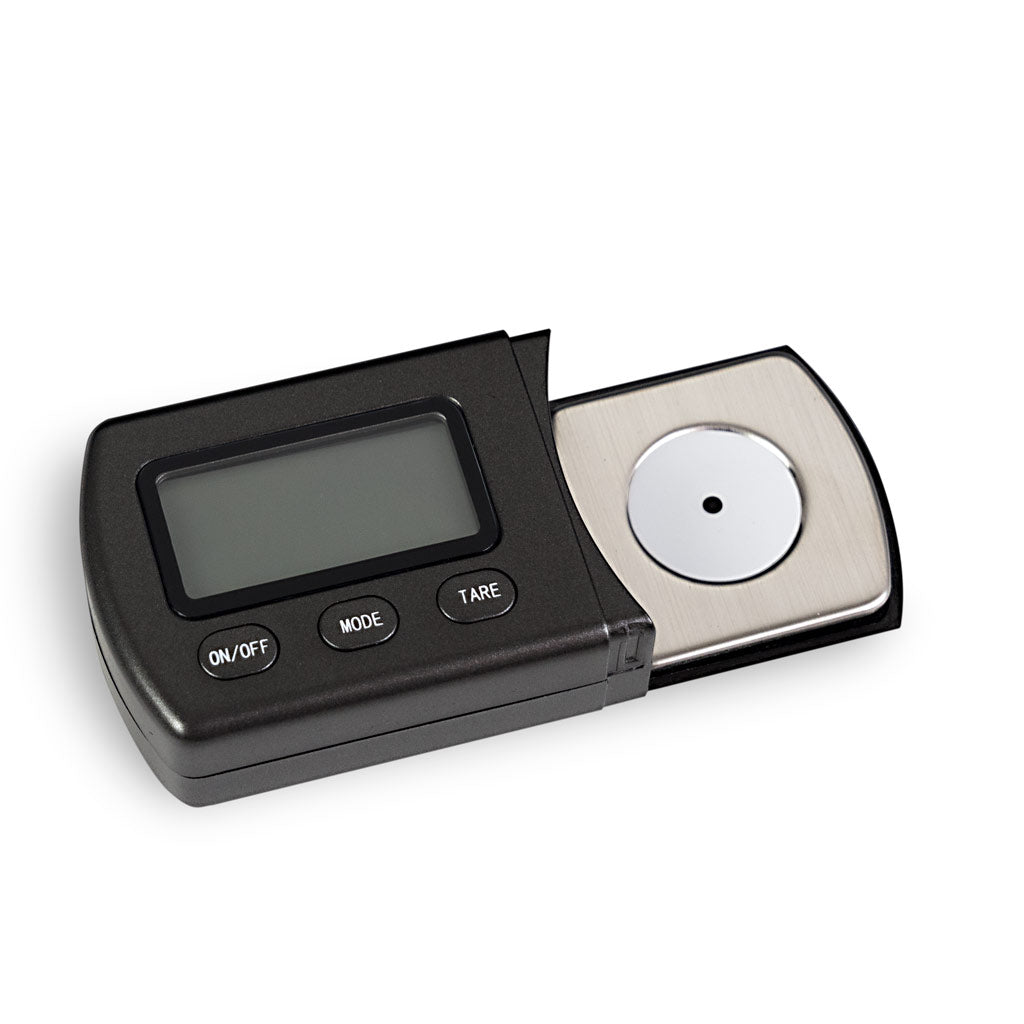

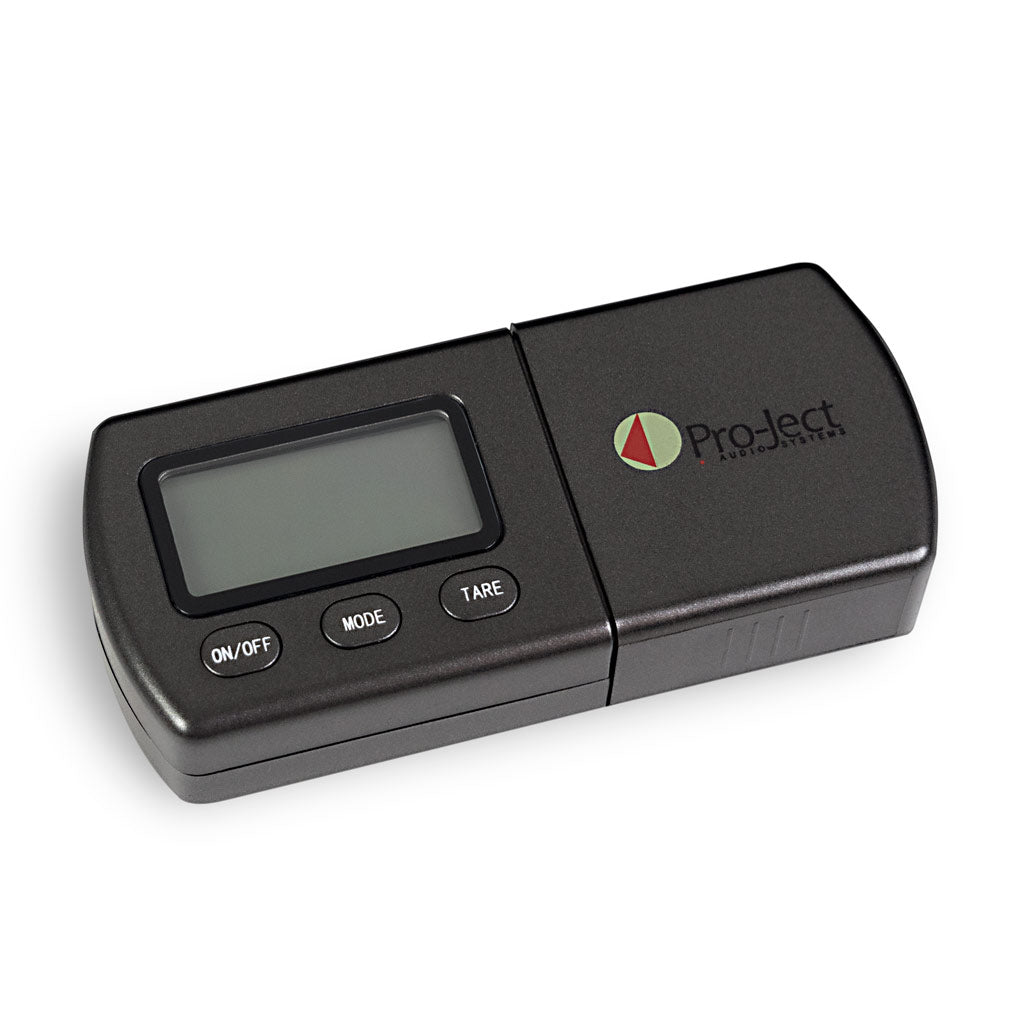

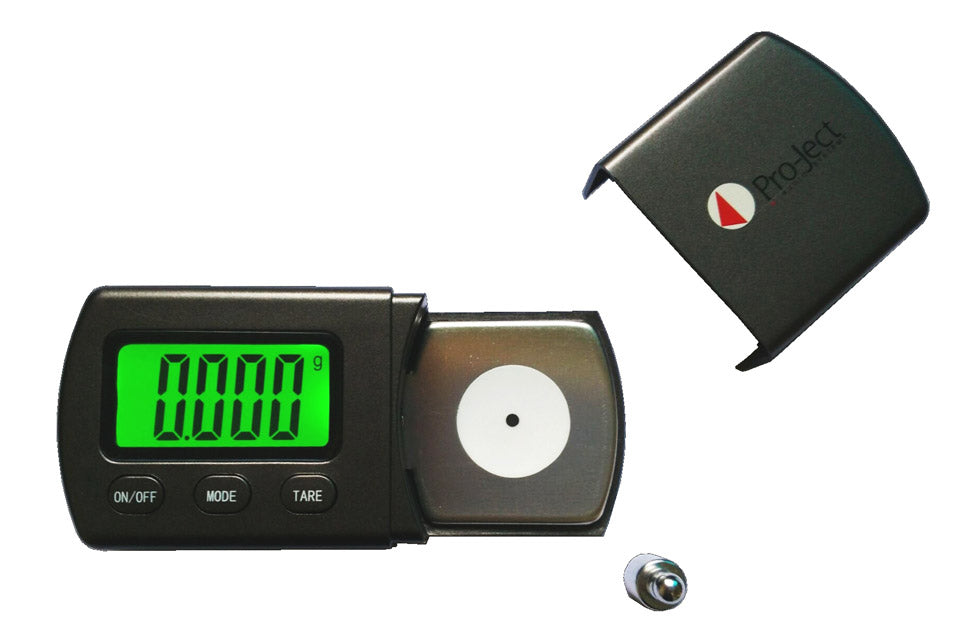

Pro-Ject Measure it E pickup nåletryksmåler

Electronic stylus balance

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.002 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

Scope of delivery:

stylus balance
calibration weight (5 g)
2x LR43 (AG12) button cell batteries + 2 pieces as backup

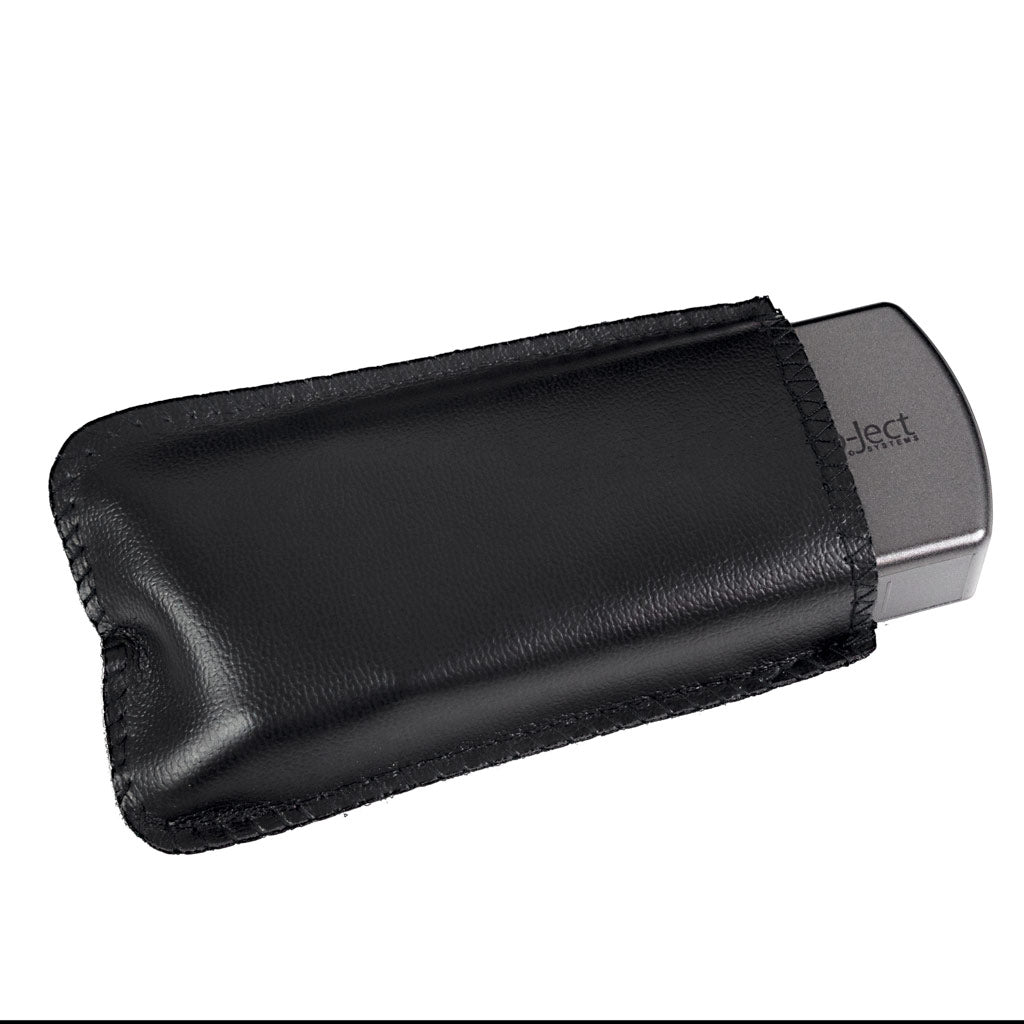

protection pouch for the meter

user guide

Features
4 digit LCD display with backlight
4 weighing modes
Wide capacity 0 - 5g
Calibration weight
Precision data readouts with low variance
Auto calibration function
Auto power off after 30 seconds
Low power consumption
Button cell batteries included

Technical Specifications
Capacity
0 - 5g
Variance
±0,002g
Weighting modes
gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct)
Display
4 digit LCD with backlight
Calibration
auto calibration using a 5g weight
Auto off
30 seconds off
Replacement battery
2 x LR43 (AG12) button cells, 1,5V
Operating temperature
+10 - +30° C (50 - 86 degrees Fahrenheit)
Dimensions (W x H x D)
96 x 21 x 43mm
Weight
49g
