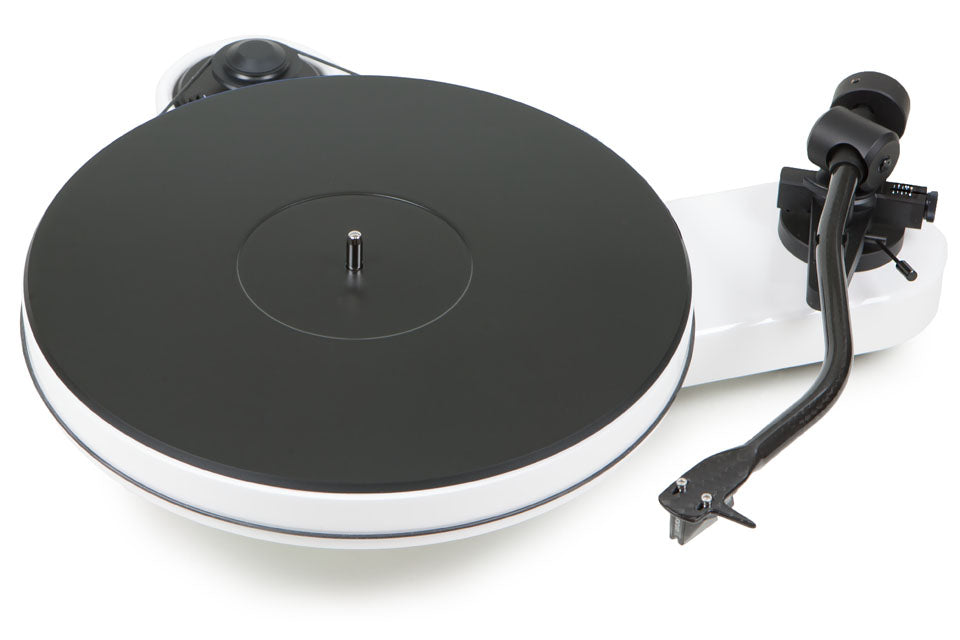

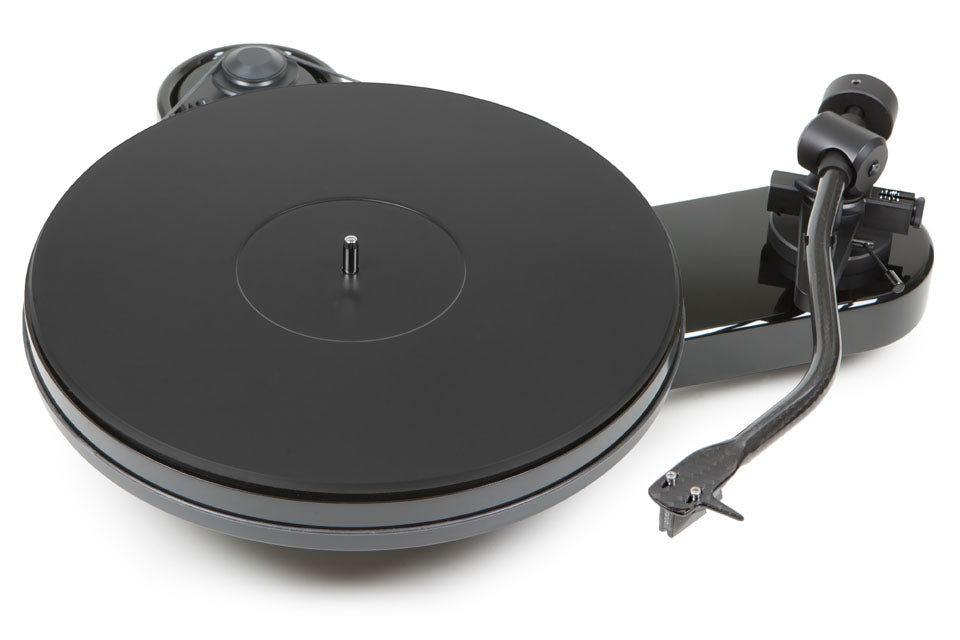

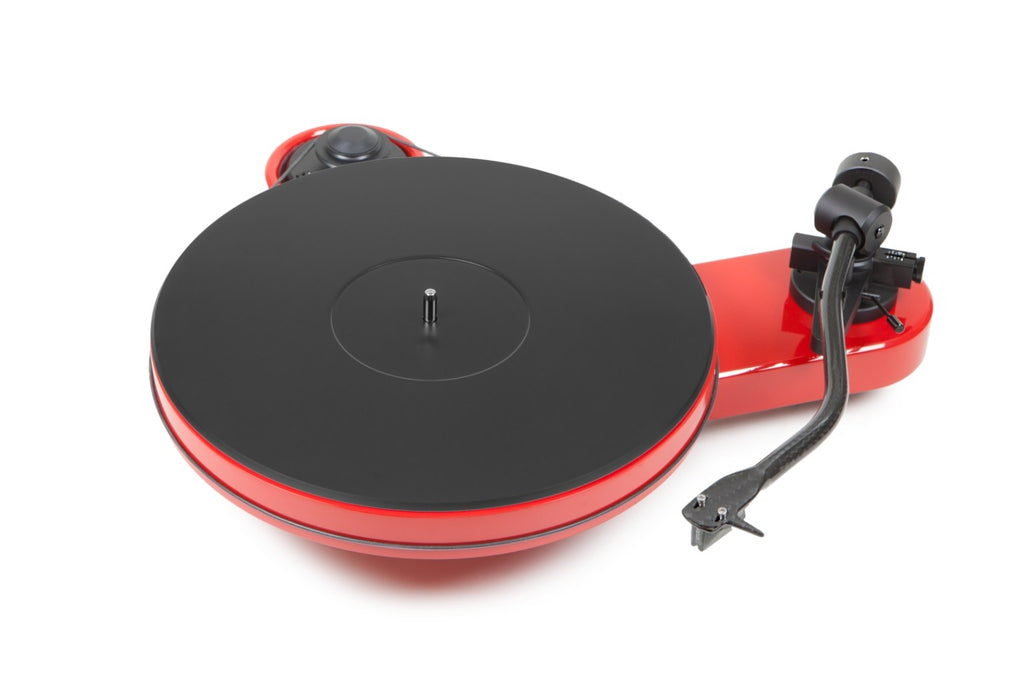

Pro-Ject RPM 3 Carbon Pladespiller

Forbedret version af RPM1. Keramisk leje! Fås med eller uden Ortofon 2M Silver pickup.

Vinder af EISA Award - Best Product!

Manual turntable with 10'' carbon tonearm

The entry into the RPM world

RPM 3 Carbon utilises evolutionary enhancements to improve the performance of the RPM series: A low resonance chassis holds an inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra precision AC generator with DC power supply for further enhanced speed stability. A 10“ S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, the arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges. Additional features are a magnetic antiskating mechanism and a TPE-damped counterweight.

The RPM 3 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

In the box:

RPM 3 Carbon (with or without Ortofon 2M-Silver)
Connect it E Phono Cable
Felt mat
Adapter for 7“ singles
Power supply
Allen key, stylus pressure gauge

Features
Precision belt drive using free-standing synchronous motor
Central mass point optimizes vibrancy behaviour
Ultra precision DC-driven AC generator motor power
Inverted platter bearing with ceramic ball
Platter made from MDF using vinyl mat
10” S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments
Magnetic antiskating
Counterweight with TPE damping

Technical Specifications
Speed
33, 45 (manual speed change)
Drive principle
Belt drive
Platter
300 mm MDF
Mains bearing
Stainless steel axle with ceramic ball
Speed drift
33: +/- 0.14% I 45: +/- 0.11%
Wow & flutter
33: +/- 0.19% I 45: +/- 0.08%
Signal to noise
- 71dB
Tonearm
10” carbon; aluminium and resin
Effective arm length
254 mm
Effective arm mass
16 g
Overhang
16 mm
Tracking force
0 - 25 mN
Included accessories
15 volts DC / 500 mA power supply
Power connection
110/240 Volt - 50 or 60 Hz
Power consumption
5 watt max / < 0,5 watt standby
Dimensions
422 x 118 x 373 mm (WxHxD)
Weight
5.5 kg net
