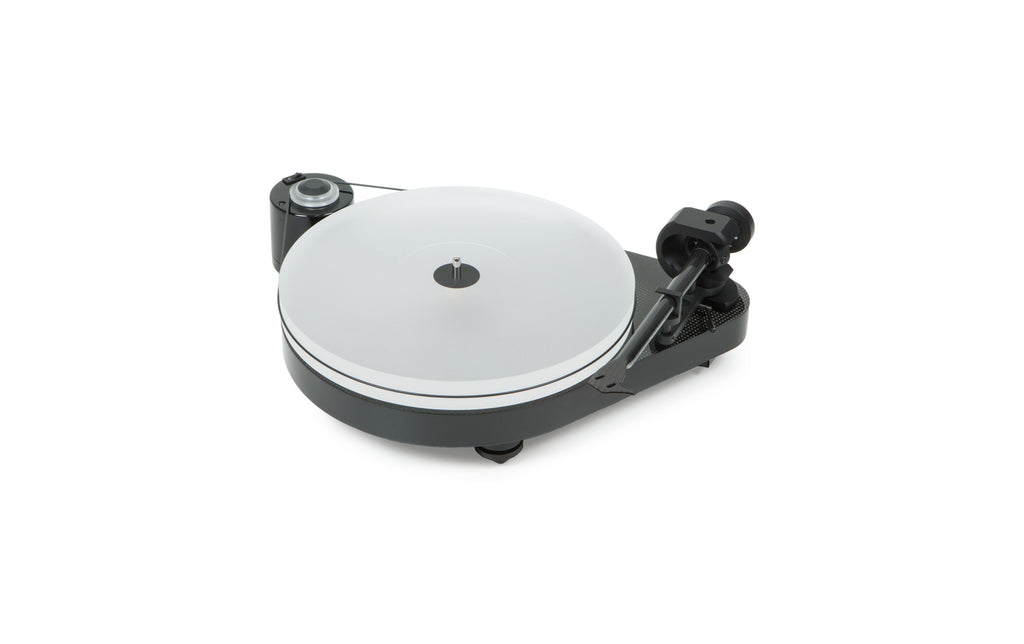

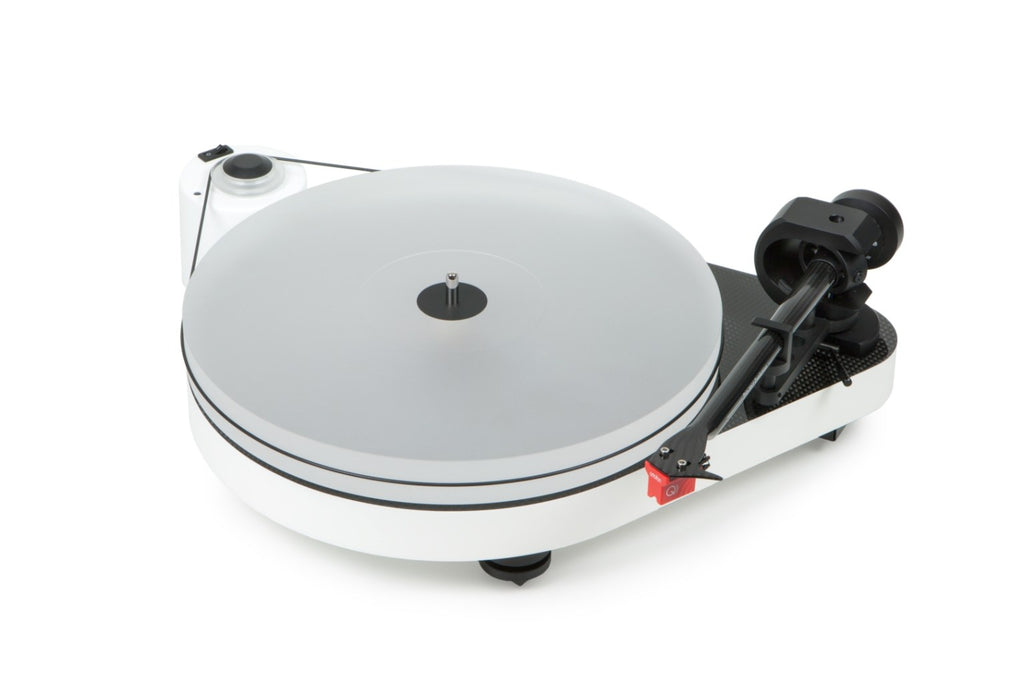

Pro-Ject RPM 5 Carbon Pladespiller

Manual turntable with 9'' Evo tonearm! "Value for money: Outstanding!!" - Anmeldelse i Audio Empfehlung.

Outboard AC Motor & Acrylic Platter

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.

In the box:

RPM 5 Carbon
Connect it E Phono Cable
Record clamp
Adapter for 7“ singles
Power supply

Features
Precision belt drive using free-standing synchronous motor
Ultra-precision DC-driven AC generator motor power
Inverted platter bearing with ceramic ball
Acoustical inert acrylic platter
9” cc EVO tonearm made from carbon
Counterweight with TPE damping
Adjustable aluminium tip-toe feet
Available with or without Ortofon 2M Bronze cartridge
Three high-gloss colours (black, red, white)
Lid available as an option

Technical Specifications
Speed
33, 45 (manual speed change)
Drive principle
Belt drive
Platter
300 mm acrylic
Mains bearing
Stainless steel axle with ceramic ball
Speed drift
33: +/- 0.12% I 45: +/- 0.10%
Wow & flutter
33: +/- 0.17% I 45: +/- 0.08%
Signal to noise
73dB
Tonearm
9” EVO carbon
Effective arm length
230 mm
Effective arm mass
8 g
Overhang
18 mm
Tracking force
0 - 25 mN
Included accessories
15 volts DC / 500 mA power supply
Power connection
110/240 Volt - 50 or 60 Hz
Power consumption
5 watt max / < 0,5 watt standby
Dimensions
430 x 150 x 323 mm (WxHxD)
Weight
8.0 kg net
