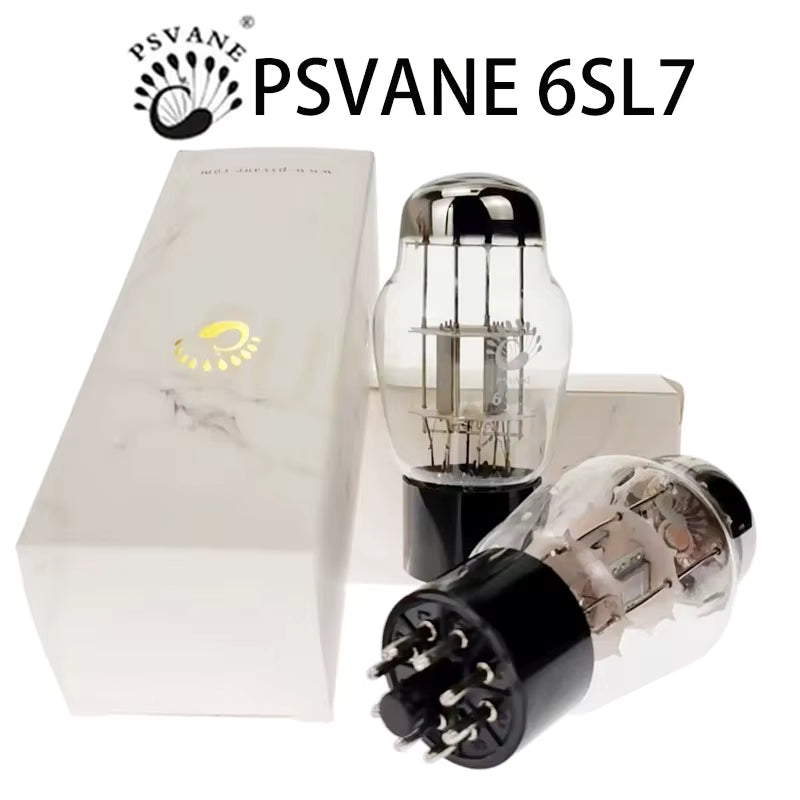

Psvane 6SL7 Classic Series Rør / 1 matched pair

PSVANE 6SL7 Vacuum Tube Upgradat 6H9C 6N9P 5691 ECC35 6SL7GT Electron Tube Amplifier Kit Hifi Audio Valve DIY Factory Matched

6SL7is high amplifier triode tube

Uh---------------------6.3 V

Ih----------------------0.3 A

Maximum Rating

Anode Voltage--------------300 V

Positive Grid--------------0 -- V

Anode Disspation--------1 W

Max Cathode current-------120 mA

Heater Filament Voltage------±90 V

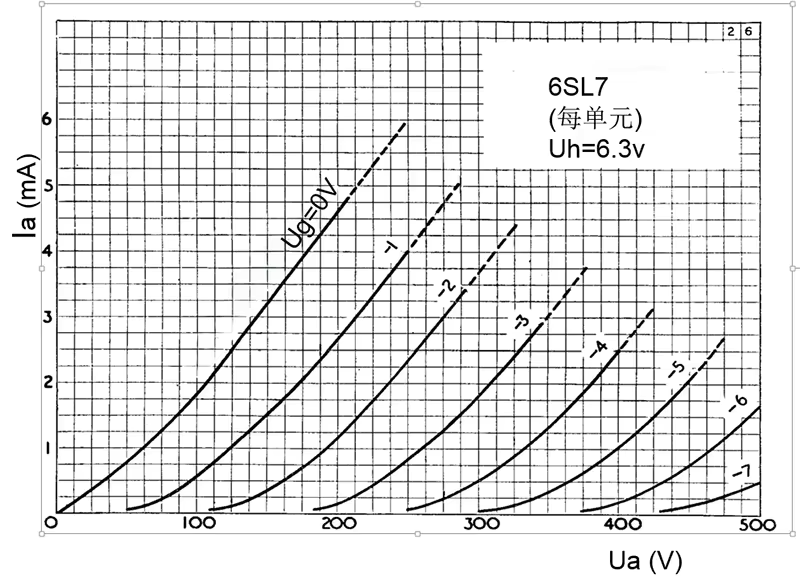

Typical Operating Conditions

Class A1 Amplifier

Ua-----------250 v

-Ug----------2 --- v

Ia-----------2.3 mA

Gm-----------1.6 mA/V

ri-----------44 kΩ

µ -----------------70

Single tube A1 Amplifier

Ua----------300 500 v
