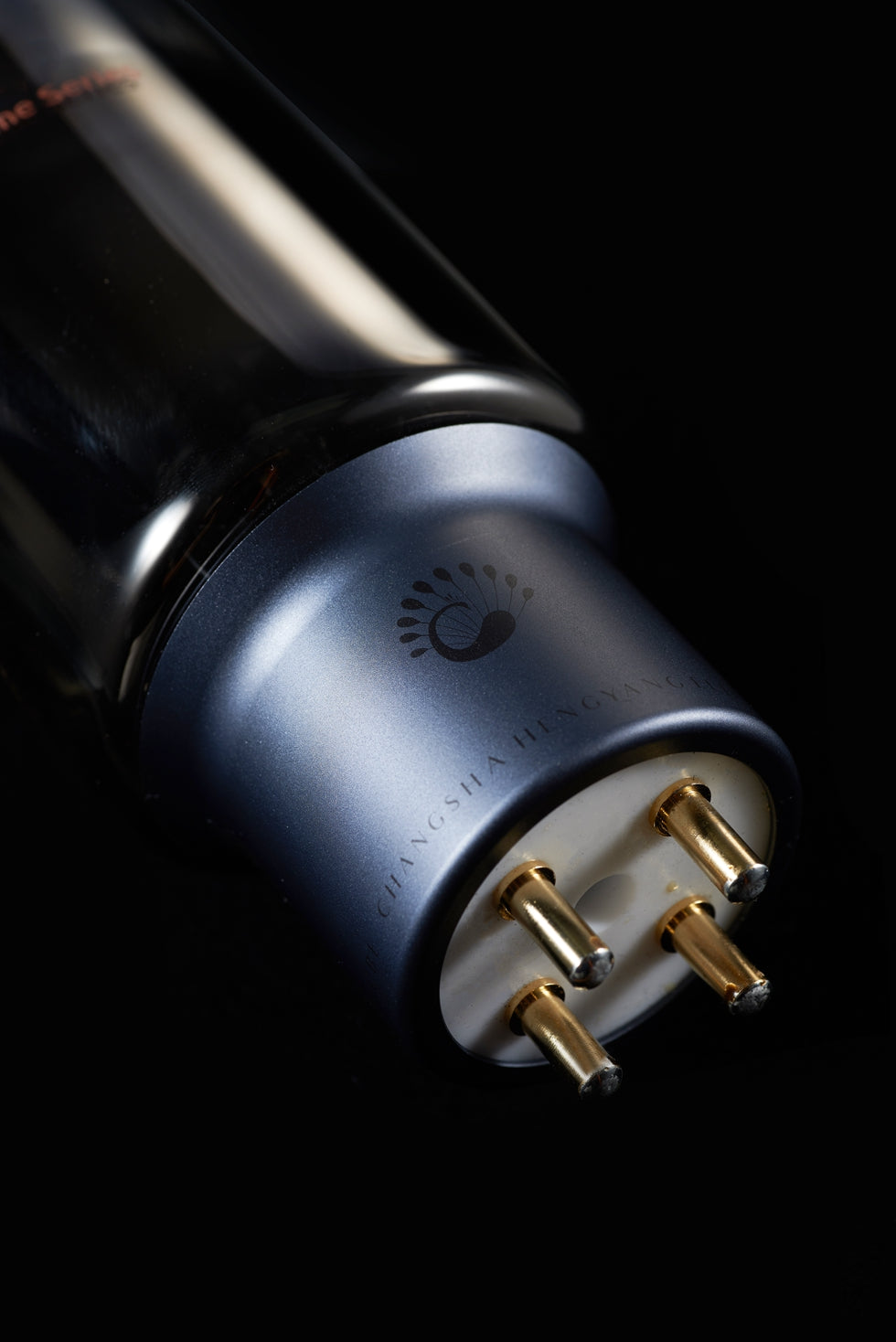

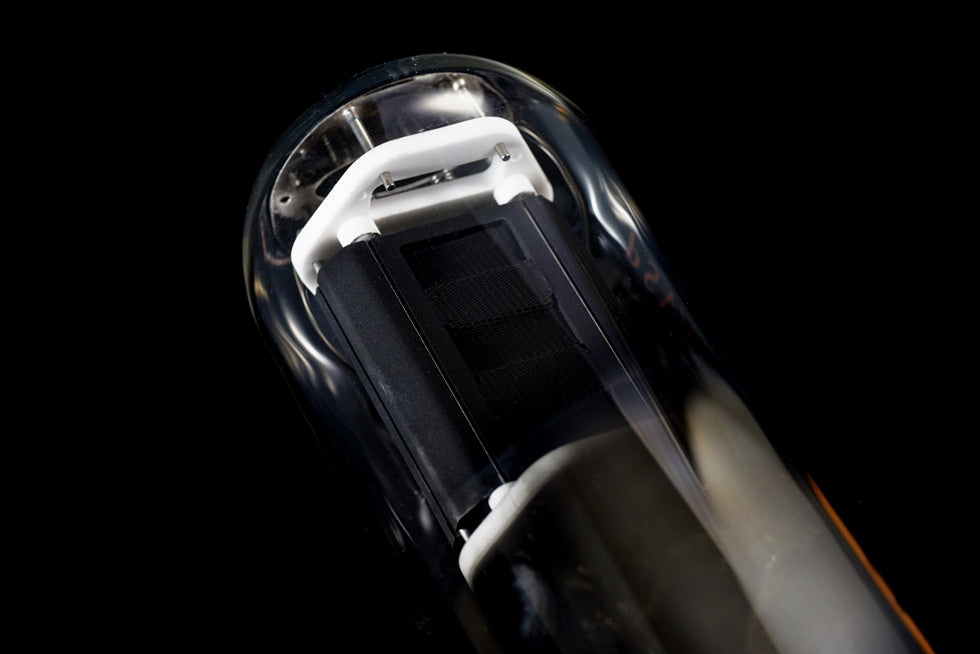

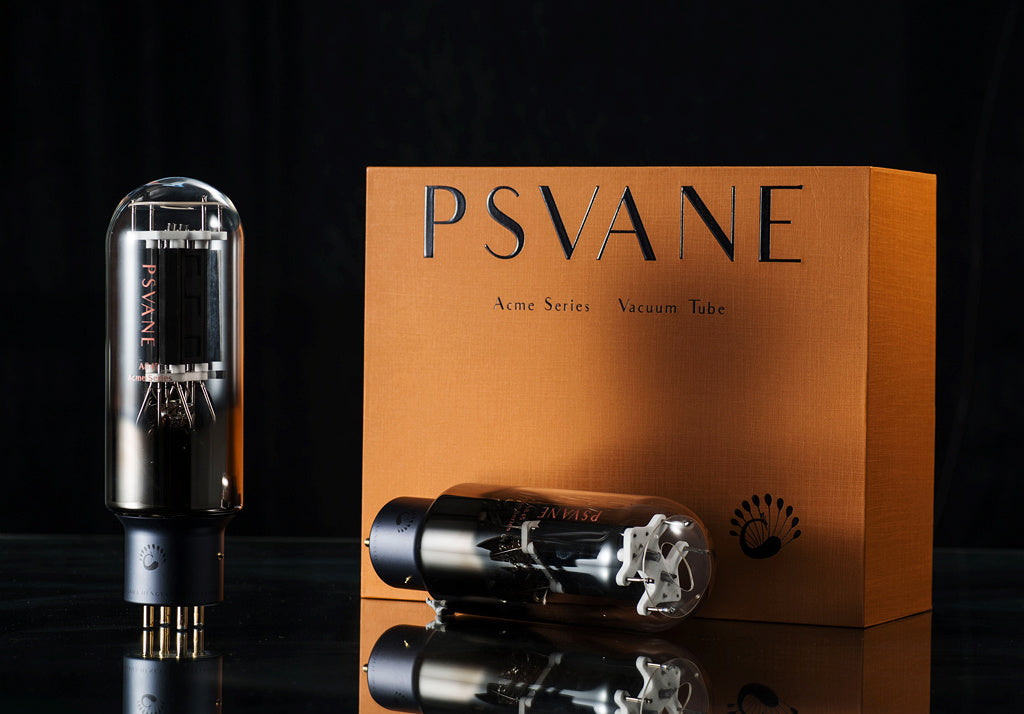

Psvane 845 Acme Rør

Psvane´s top 845 rør!

Pris er for et parret par!

Static parameter
Ua---------------------------------       1250        V
—Ug--------------------------------    200          V
Ia-----------------------------------     80            mA
Gm----------------------------------    3              mA/V
ri-------------------------------------   1.7           KΩ
u-------------------------------------   5
RL-----------------------------------   3.4           KΩ
Ug(pk)------------------------------   69             V
Pout-------------------------------      15             W
Recommended Operating Conditions(reference value)
class A1 .single tube：
Ua-----------             1000     1000      1250         V
—Ug------ --             145       155        209           V
RL-----------              6            9           16            KΩ
Ia--------- ---             90          65          52            mA
Gm-------- --             3.1          —         —            mA/V
Ug(pk)------             —          110        148           V
ri------------              1.7          1.9        2.1           KΩ
Pout------- -              24           21         24             W

Do things better now，don’t  ask the future

What kind of experience is it when you make a vacuum tube that may be the best sound on earth?
