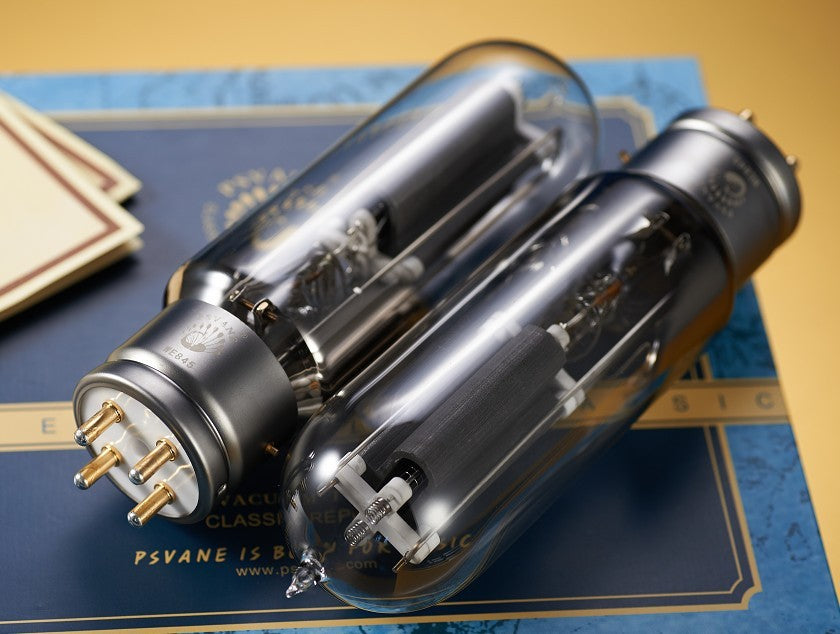

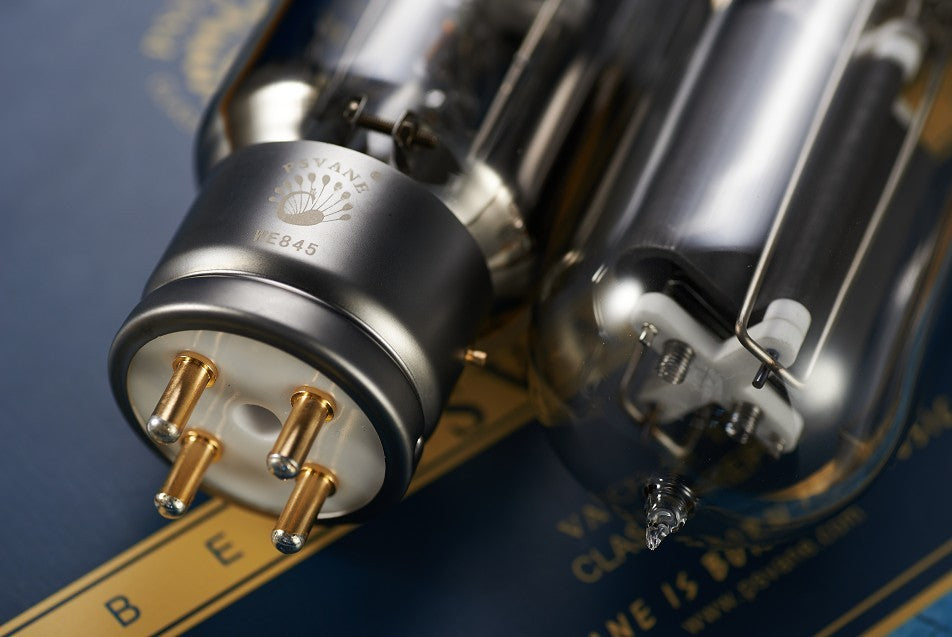

Psvane WE845 Rør

Psvane WE845 rør fra deres Western Electric replica serie!

Changsha Hengyang Electronics Co., Ltd. specializes in R & D and the sales of audio tubes. We have a professional manufacturing team and the top designing level in the industry. All the items have passed the ISO9000 Quality System Certification. Our main product, PSVANE, is the world’s leading brand of audio tubes

WE845  is direct-heated type thorium tungsten cathode triode, class A1 and AB1
Heater
Uf---------------------------------------10 V
If----------------------------------------3.25 A
Maximum Rating
Ua----------------------------------1250 V
Pa-------------------------------75 W
Pout(max.sig)--------------------------150 W
Ia(max)------------------------------120 mA;

Direct Interelectrode Capacitances

input----------------------------------6 PF
output----------------------------------4.5 PF
grid to plate----------------------------------14.5 PF

Static parameter
Ua--------------------------------------1250 V
—Ug-------------------------------------200 V
Ia---------------------------------------80 mA
Gm--------------------------------------3 mA/V
ri----------------------------------------1.7 KΩ
u----------------------------------------5
RL---------------------------------------3.4 KΩ
Ug(pk)------------------------------------69 V
Pout-------------------------------------15 W

Recommended Operating Conditions（reference value
class A1 .single tube：
Ua-----1000 1000 1250 V
—Ug--- 145 155 209 V
RL-----6 9 16 KΩ
Ia------90 65 52 mA
Gm-----3.1 — — mA/V
Ug(pk)--— 110 148 V
ri------1.7 1.9 2.1 KΩ
Pout----24 21 24 W
Push-pull.class AB1：
Ua------------------ 800 1000 1000 1250 V
—Ug---------------- 125 170 175 225 V
RL------------------ 4.5 4.6 4.6 6.6 KΩ
Ia--------------------80 70 40 40 mA
Ug(pk)----------------177 240 — — V
Ia（mAx.sig）---------170 230 230 240 mA
Pout----------------40 75 75 115 W
