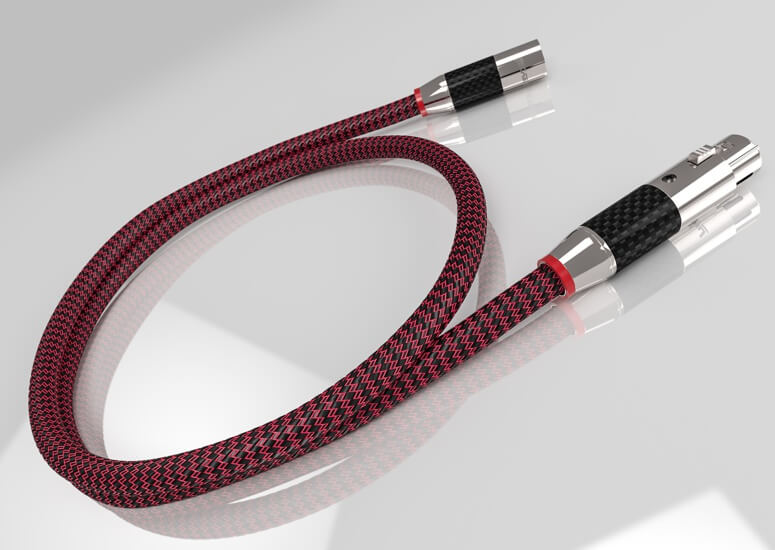

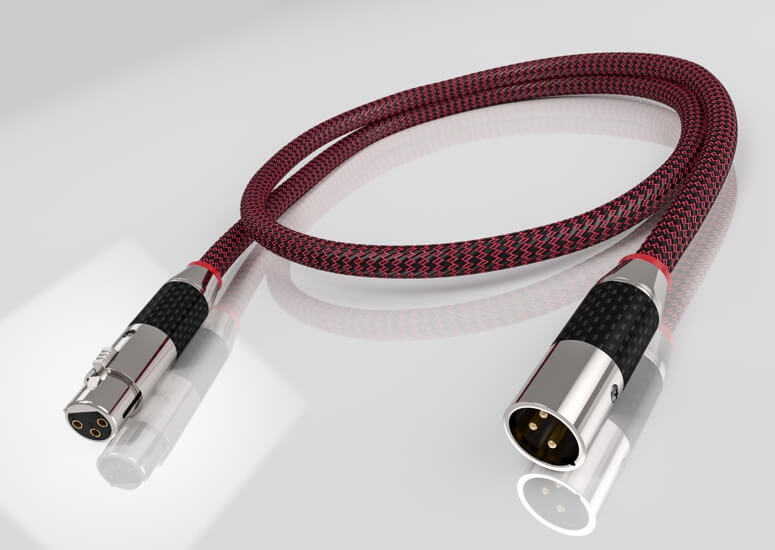

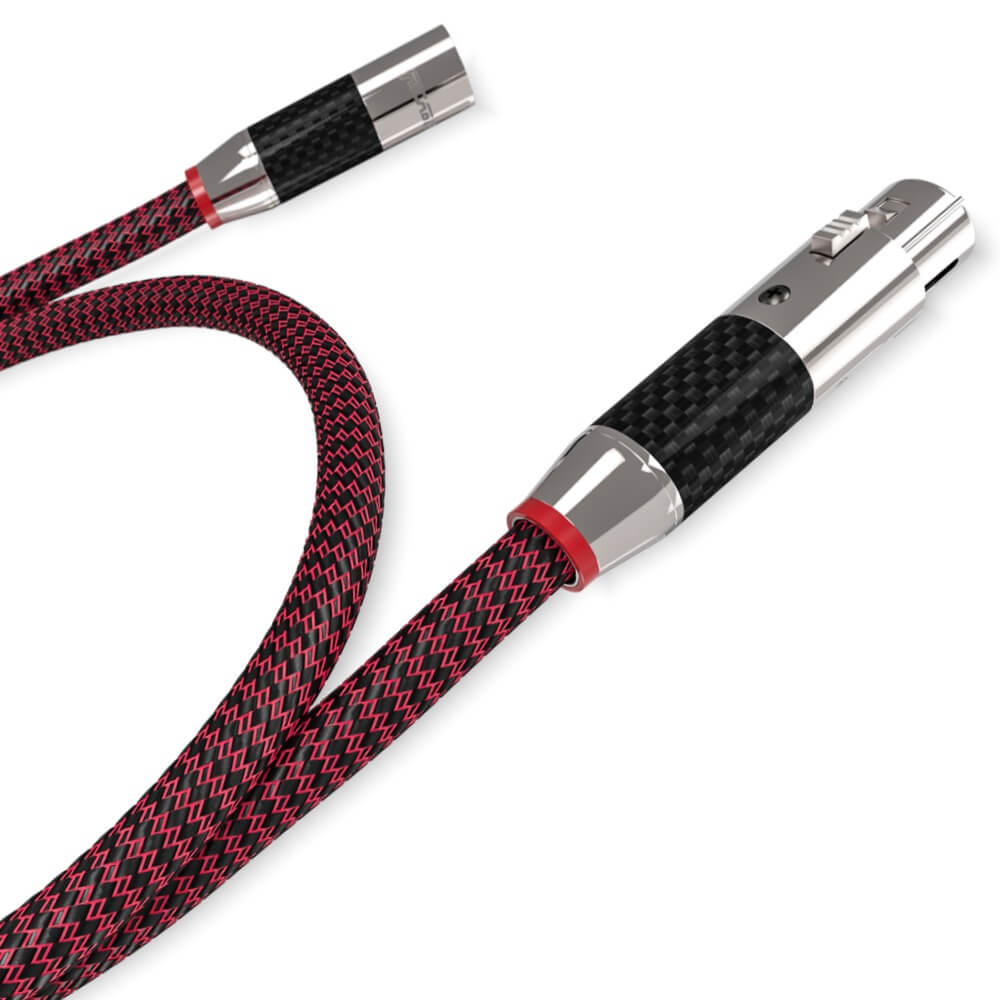

RiCable INVICTUS AES/EBU - Hi-End Audio Digital XLR 110 Ohm Hi-Fi signalkabel

INVICTUS
After more than a year of study, research and effort on improving the conductor, insulation, shielding and connectors, looking for a way to make an absolute product, the Invictus series was born. It represents the maximum expression of our production and, to date, is the best we can make in terms of interconnection for Hi-End equipment. Invictus is currently the definitive and uncompromising choice by Ricable.

Invictus AES/EBU is the flagship of our production and the Ultimate Solution for any system. It offers an exciting connection and detailed listening, with a truly stunning soundstage!

Impedance 110 Ohm
Conductors 0.51 mm2 Copper MARC©
Noise Reduction
OFC Copper RCC© Connectors
R-TEC© insulation

Invictus AES/EBU, digital perfect.
AES/EBU is a standard format for digital audio, used to interface different devices with each other. In Hi-Fi, it is mainly used to connect digital sources (CD players, Streamers, etc.) to the DAC. Some high level devices enjoy the possibility of connection with a balanced 110 Ohm XLR cable, which improves transmission performance compared to the classic RCA coaxial or BNC.
In this quest for purity, cables play a crucial role, just like every component in your system. Invictus AES/EBU is designed to cut down, practically 100%, what is generally lost in digital transmission and reveal to you the form closest to the reality that your favourite musicians intend to represent with their works, thanks to the purity of signal transmission between your electronics.

Technical specifications
Capacity
27 pF/m
Impedance
110 Ω
Resistance
42 Ω/km
External diameter
Ø 11.50 mm
Conductor Section
3 x 0.51 mm²
Structure Conductors
Twisted Pair
Strand diameter
0.08 mm
Material Conductors
MARC Pure Copper 7N 99.99999%.
Geometry
Balanced
Dielectric Insulator
Technopolymer R-TEC
Internal shielding
Aluminium/Mylar/Magnesium
External shielding
High coverage OFC copper braid
External Protection
High density sheathing with Polyethylene/Nylon overbraid
Connector material
Pure Copper OFC
Contact
Hand-welded with special Eutectic Alloy Sn/Ag/Cu
Features Connectors
Teflon dielectric, Carbon-finished non-magnetic housing, Anti-disturbance alloy housing
