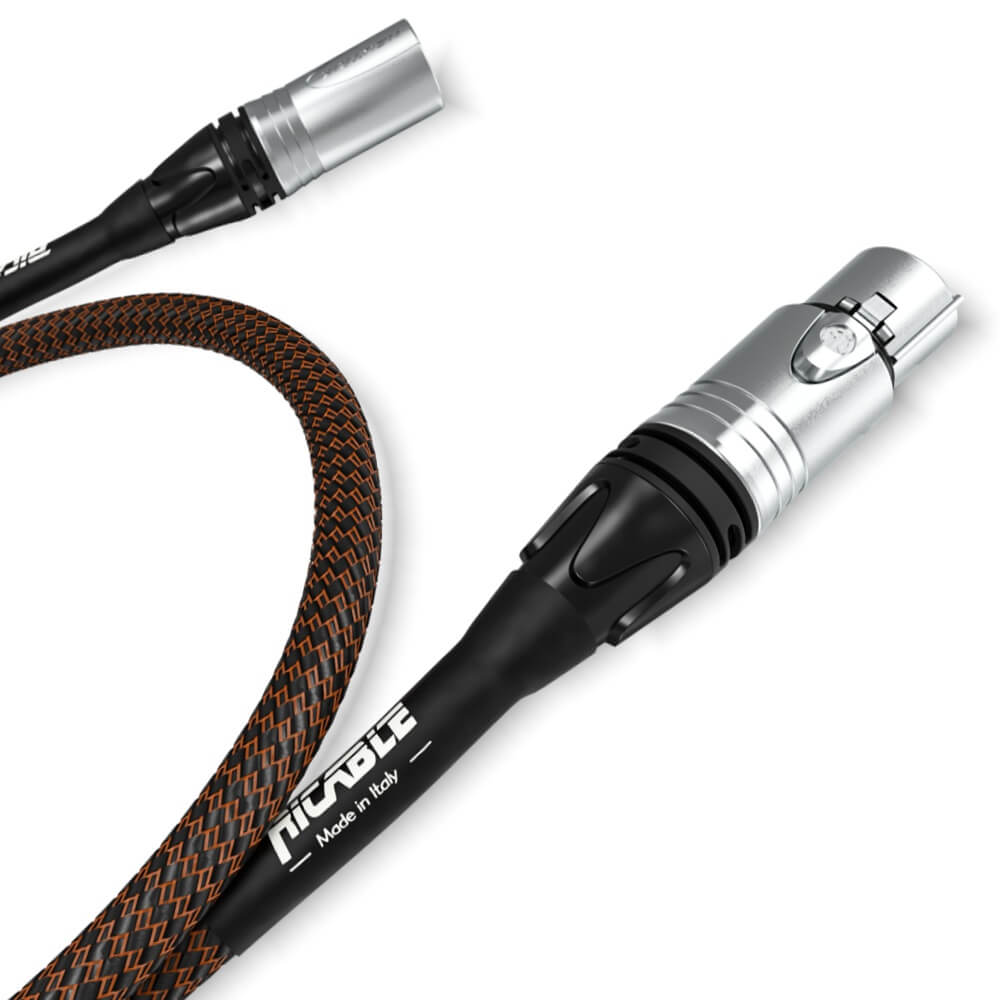

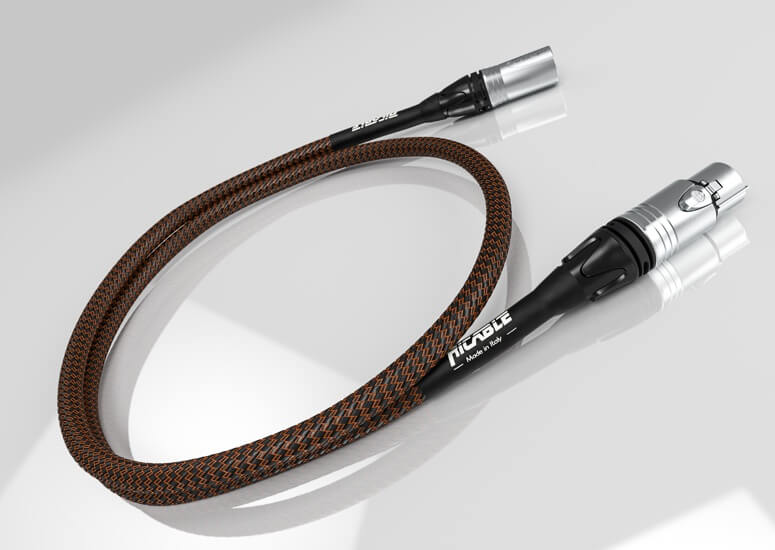

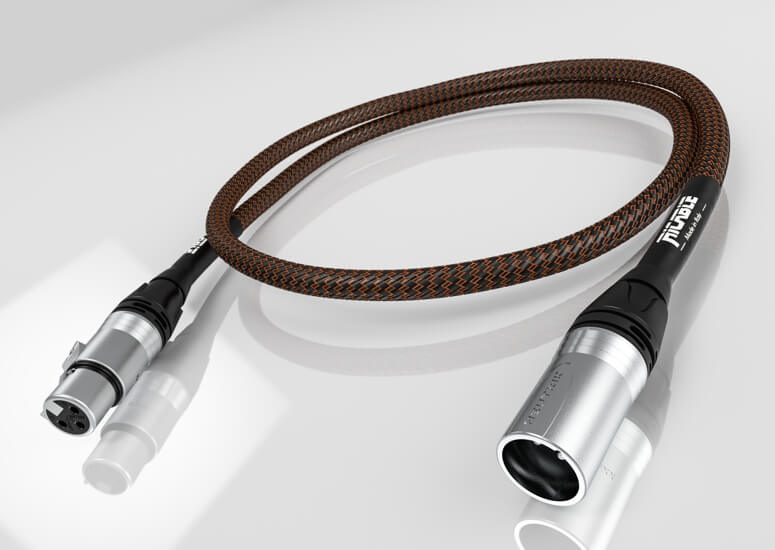

RiCable MAGNUS AES/EBU - Hi-End Audio Digital XLR 110 Ohm Hi-Fi signalkabel

MAGNUS
Designing Magnus was a real challenge, as we wanted to create a series of Hi-End connections at a competitive cost, taking advantage of the know-how derived from our Top of the Range cables. From this premise, a series of great substance and refinement was born. Necessarily, some features were removed from the top cables, but we tried to do so in less crucial places, to ensure that the interconnects Magnus would perform very well.

Magnus AES/EBU is a cable that has its big brothers Dedalus and Invictus in its DNA. Thanks to the Know-How of the latter, it delivers a Precise, Clean and Neutral feeling, ideal for all lovers of good sound.

Impedance 110 Ohm
Conductors 0.31 mm2 Copper MARC©
Neutrik connectors
Insulators from Dedalus and Invictus

Magnus AES/EBU, digital accurate.
AES/EBU is a standard format for digital audio, used to interface different devices with each other. In Hi-Fi, it is mainly used to connect digital sources (CD players, Streamers, etc.) to the DAC. Some high level devices enjoy the possibility of connection with a balanced 110 Ohm XLR cable, which improves transmission performance compared to the classic RCA coaxial or BNC.
Magnus AES/EBU represents the first step towards perfect signal transmission. It is made with technological solutions derived from the top series Dedalus and Invictus, which guarantee an exclusive and durable support for your equipment in order to return a correct, precise and natural sound.

Substance at the service of the signal.
Conductor +70% compared to OFC: 0.31 mm2 conductors made of Copper 7N MARC (Multicore Annealed Ricable Conductor) with 0.08 mm strands with a smoother and more compact surface, allowing 70% better audio transmission than OFC Copper.
Silver-plated Neutrik connectors, suitably modified for Magnus XLR cables, provide a firm, high-quality contact.

Technical specifications
Capacity
58 Pf/m
Impedance
110 Ω
Resistance
68 Ω/km
External diameter
Ø 8.9 mm
Conductor Section
3 x 0.31 mm²
Structure Conductors
Twisted Pair
Strand diameter
0.08 mm
Material Conductors
MARC Pure Copper 7N 99.99999%.
Geometry
Balanced
Dielectric Insulator
Polyethylene
Internal shielding
Mylar and Aluminium
External shielding
OFC Copper Spiral
External Protection
High density sheathing with Polyethylene/Nylon overbraid
Contact
Hand-welded with special Eutectic Alloy Sn/Ag/Cu
Features Connectors
Silver Plated Contacts, Top of the Range Neutrik
