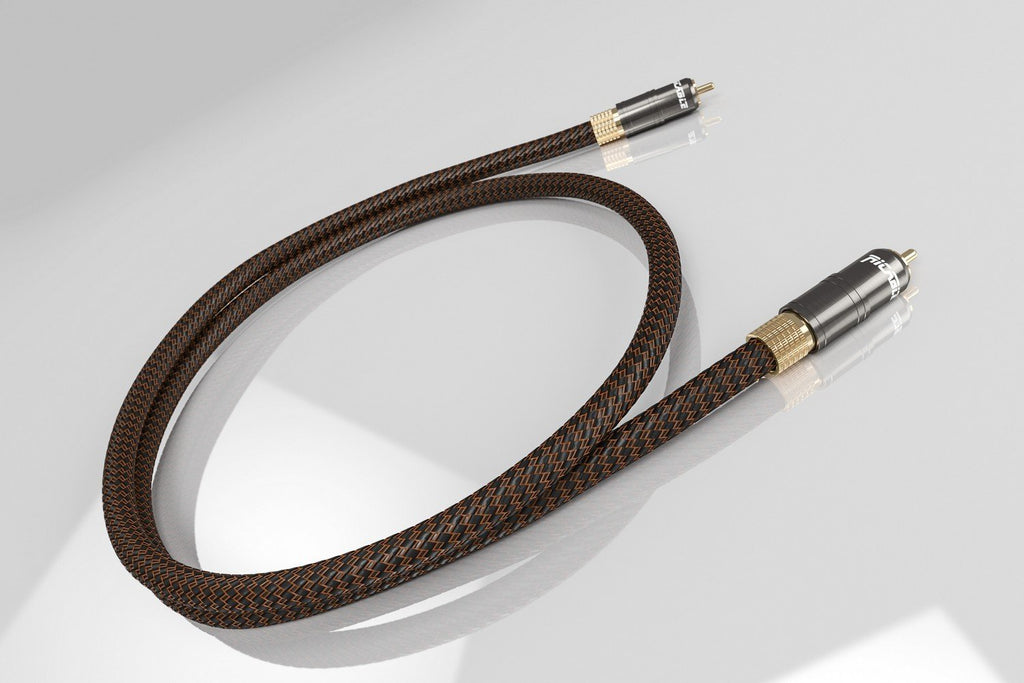

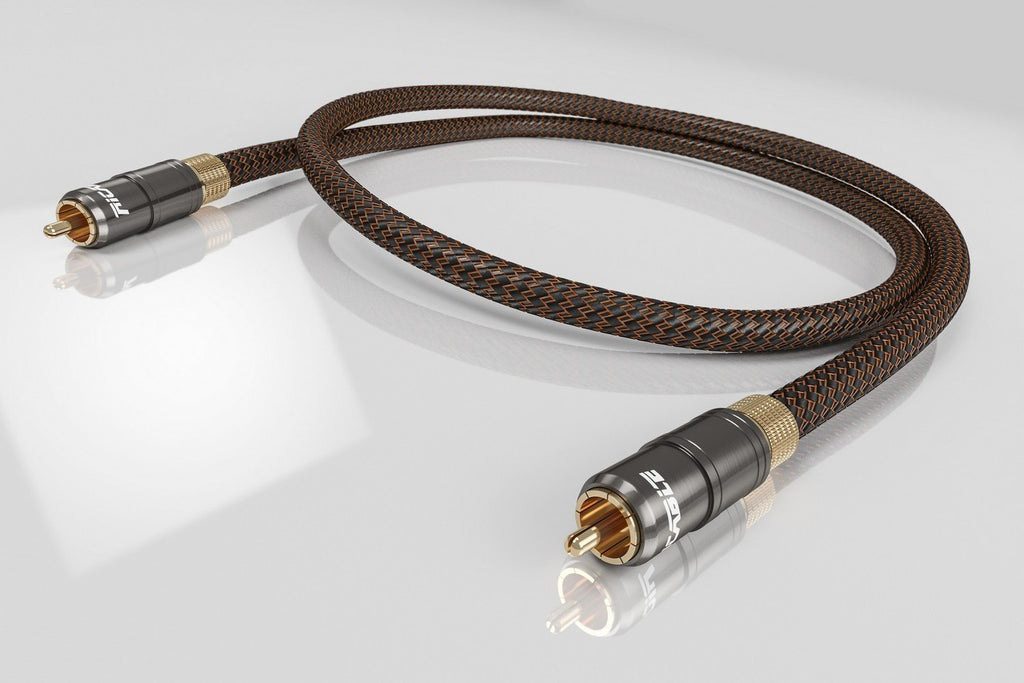

RiCable MAGNUS COAXIAL - Hi-End Coaxial Digital 75 Ohm RCA signalkabel m/livstidsgaranti

Ideal for connecting DACs in digital audio with medium to high quality equipment and bringing out their acoustic performance. Copper conductor and Copper/Tellurium connectors.

MAGNUS
Designing Magnus was a real challenge, as we wanted to create a series of Hi-End connections at a competitive cost, taking advantage of the know-how derived from our Top of the Range cables. From this premise, a series of great substance and refinement was born. Necessarily, some features were removed from the top cables, but we tried to do so in less crucial places, to ensure that the interconnects Magnus would perform very well.

Magnus Coaxial is a less sophisticated cable than Dedalus and Invictus, but it retains the same functional philosophy. Its purpose is the correct transmission of the digital signal and protection from interference.

+100% performance compared to a standard cable*.
Conductor 0.9 mm2 Copper OFC
Four Screens
Copper/Tellurium connectors

Key features
Magnus Coaxial allows you to transmit the digital signal between your equipment with Efficiency and Protection, in order to enjoy the full potential that your system can give you.
DESIGN: Magnus Coaxial represents the first step towards perfect signal transmission. It is made with technological solutions derived from the superior Dedalus and Invictus series, which guarantee an exclusive and durable support for your equipment.
SOLID CORE CONDUCTOR: Magnus Coaxial is based on a 0.9 mm2 Solid-Core conductor made of 99.999% OFC copper with a special high-expansion polyethylene dielectric, which allows the impedance to be kept constant at 75 Ohm.
QUADRUPLE SHIELDING: The shielding is quadruple, with double tinned OFC copper braiding combined with two Aluminium/Mylar sheets, to block any type of interference harmful to digital signals and avoid the typical defects of digital interference pollution.
COPPER/TELLUM CONNECTORS 20% compared to BRASS: Connectors with contacts made entirely of copper. With these connectors there is an improvement in electrical parameters of over 20% compared to common brass connectors. 24K Gold plated with specific Gold/Copper electrolysis technique.

Technical specifications
Capacity
62 pF/m
Impedance
75 Ω Guaranteed and Controlled
Resistance
24 Ω/km
External diameter
Ø 10 mm
Conductor Section
0.9 mm².
Structure Conductors
1 Solid Core wire
Strand diameter
0.9 mm
Material Conductors
Pure OFC copper (Oxigen Free Copper) 99.999%.
Geometry
Coaxial
Dielectric Insulator
Polyethylene foam
Internal shielding
Tinned Copper Braid + Aluminium Foil
External shielding
Tinned Copper Braid + Aluminium Foil
External Protection
High density sheathing with Polyethylene/Nylon overbraid
Connector material
Alloy Copper Tellurium
Contact
Hand-welded with special Eutectic Alloy Sn/Ag/Cu
Features Connectors
8-element ground ring, 24 K Gold-Plated Copper/Tellurium Alloy Body, Teflon Dielectric, Anti-Disturbance Alloy, Expansion Centre Pole, Magnetically Shielded, Anti-Disturbance Alloy Shell
