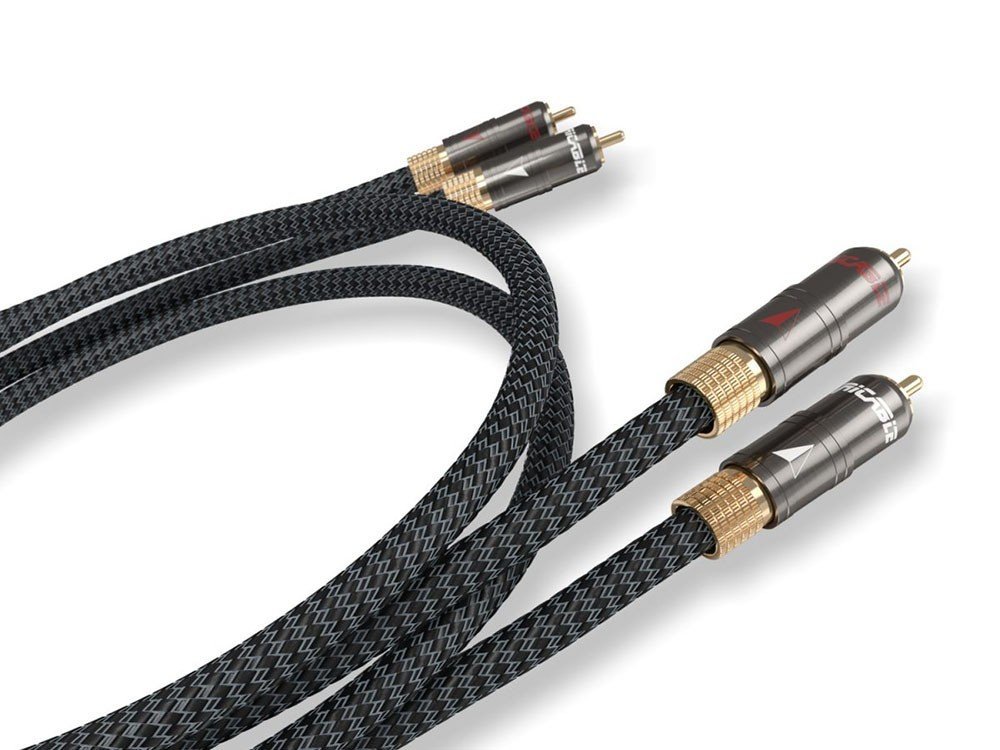

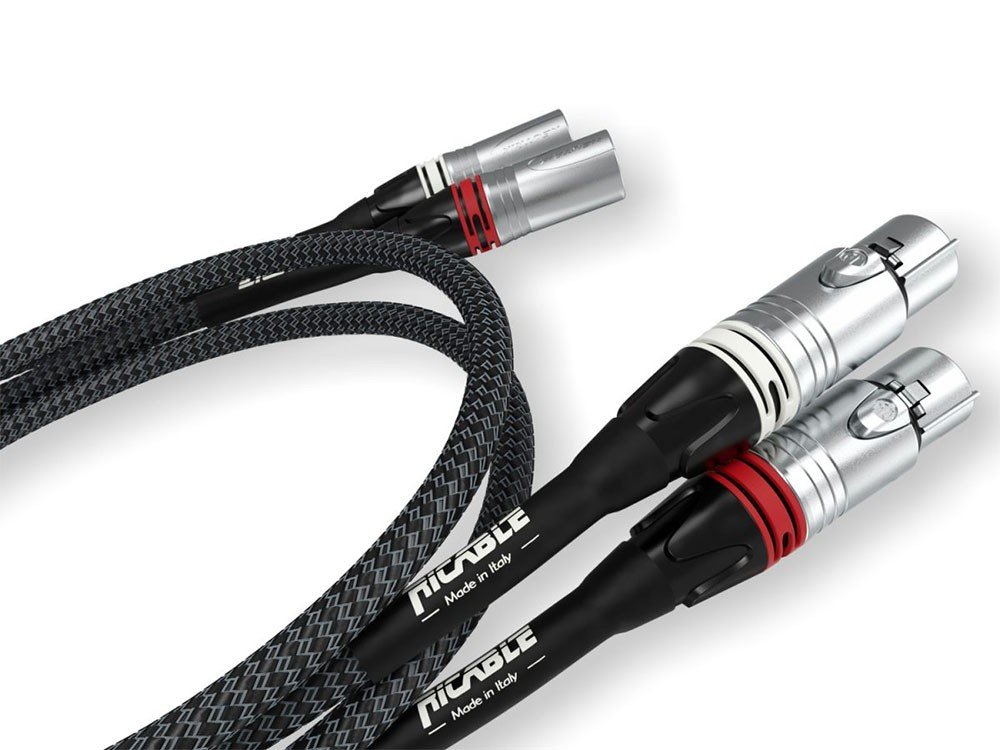

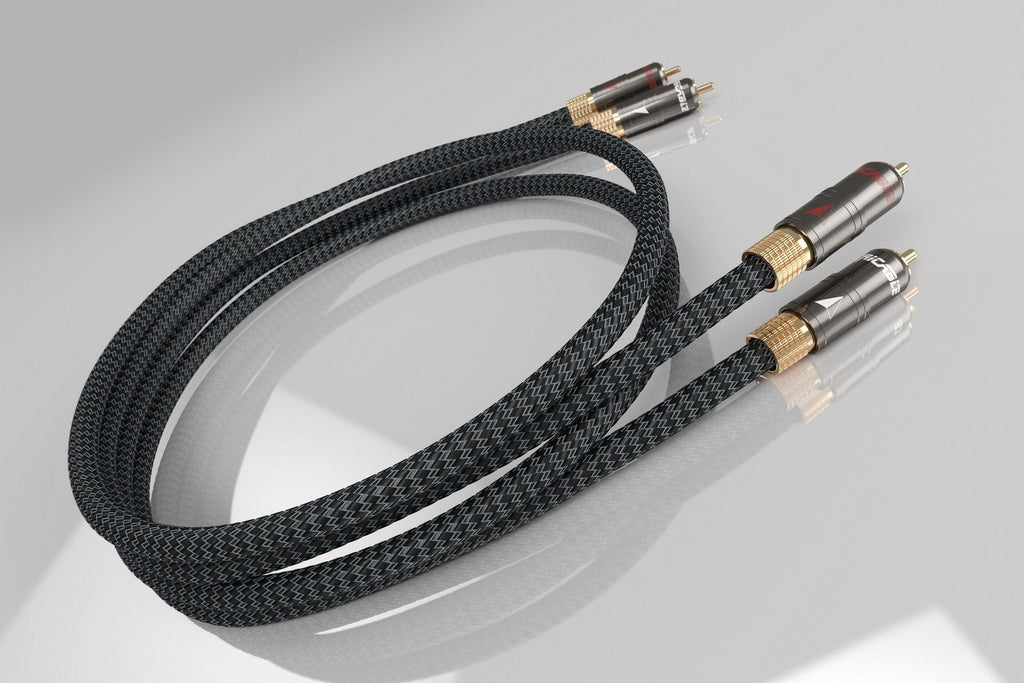

RiCable MAGNUS SIGNAL - RCA/XLR signalkabel (livstidsgaranti v/registrering)

MAGNUS
Designing Magnus was a real challenge, as we wanted to create a series of Hi-End connections at a competitive cost, taking advantage of the know-how derived from our Top of the Range cables. From this premise, a series of great substance and refinement was born. Necessarily, some features were removed from the top cables, but we tried to do so in less crucial places, to ensure that the interconnects Magnus would perform very well.

Semi-balanced High Fidelity Cable, for connecting an analogue source to an amplifier. Ideal for bringing out the acoustic performance of medium to high quality equipment. MARC 7N Copper conductor and Copper/Tellurium connectors.

Key features
The Magnus Signal cable allows you to enjoy your music to the fullest, because it carries the signal much more effectively than normal cables INTERCONNECT ( +150%). In this way your electronics can express their full potential.
DESIGN: Magnus Signal is the first step towards perfect signal transmission. The technological solutions derived from the Dedalus series guarantee exclusive and durable support for your equipment.
MARC CONDUCTOR 70% compared to OFC: 0.35 mm2 conductors made of copper 7N MARC (Multicore Annealed Ricable Conductor) with 0.08 mm strands with a smoother and more compact surface allow 70% better audio transmission than OFC copper.
COPPER/TELLURIUM CONNECTORS 20% COMPARED TO BRASS: Copper-Tellurium alloy RCA connectors with hot expansion pole and ground ring clamping system. With these connectors there is an improvement in electrical parameters of over 20% compared to common brass connectors. 24K gold plated with electrolysis technique.
SAFETY FROM INTERFERENCE: The semi-balanced geometry of this cable, supported by double shielding with OFC copper pigtail and Aluminium/Mylar foil, covers all audio frequencies from EMI/RFI interference. The construction with insulation and stranded conductor with crank-rod detorsion eliminates any stress on the conductors.
EASY INSTALLATION: Thanks to the exceptional raw materials used, Magnus Signal has above-average flexibility and allows you to use it comfortably even in awkward situations.

Technical specifications
Capacity
40 pF/m
Resistance
68 Ω/km
External diameter
Ø 8.90 mm
Conductor Section
2 x 0.35 mm²
Structure Conductors
Twisted Pair
Strand diameter
0.08 mm
Material Conductors
MARC Pure Copper 7N 99.99999%.
Geometry
Semi-balanced
Dielectric Insulator
Polyethylene
Internal shielding
Mylar and Aluminium
External shielding
OFC Copper Spiral
External Protection
High density sheathing with Polyethylene/Nylon overbraid
Connector material
Alloy Copper Tellurium
Contact
Hand-welded with special Eutectic Alloy Sn/Ag/Cu
Features Connectors
8-element ground ring, 24 K Gold-Plated Copper/Tellurium Alloy Body, Teflon Dielectric, Anti-Disturbance Alloy, Expansion Centre Pole, Magnetically Shielded, Anti-Disturbance Alloy Shell
