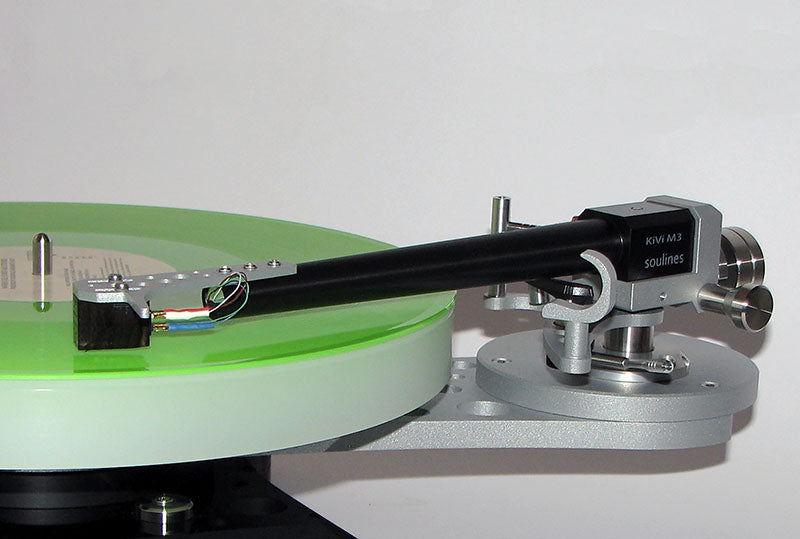

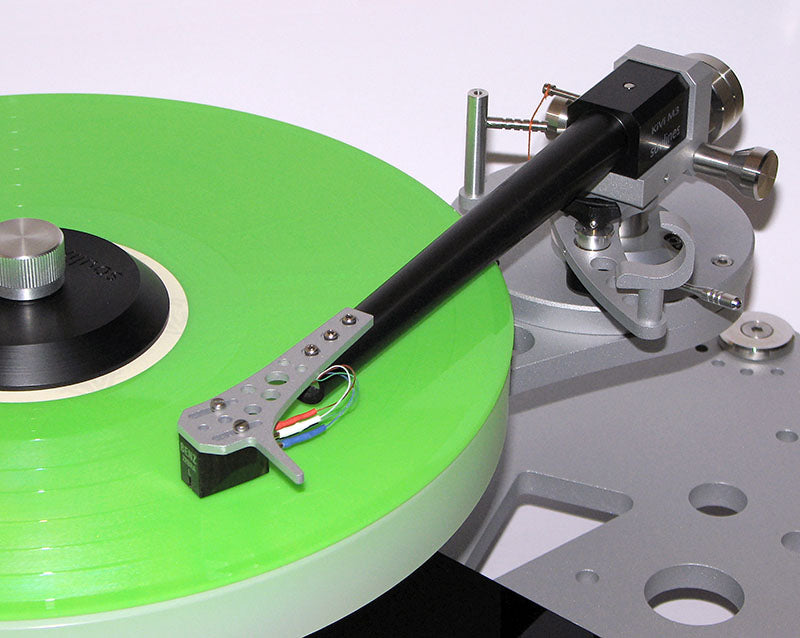

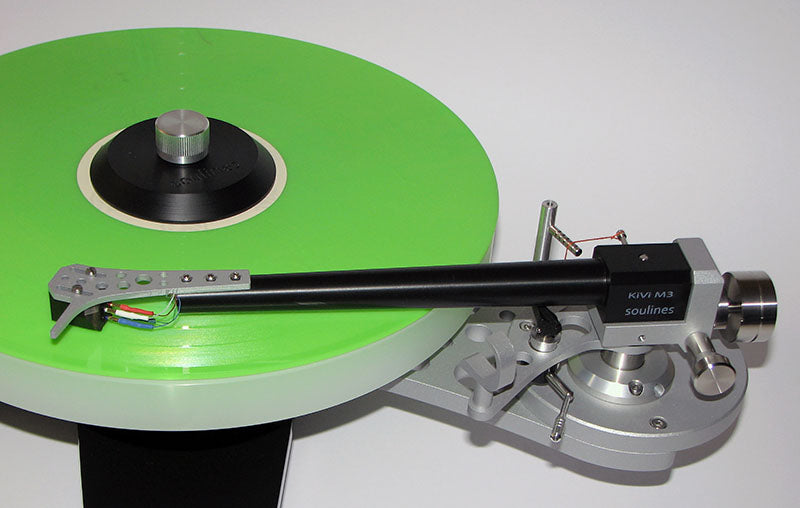

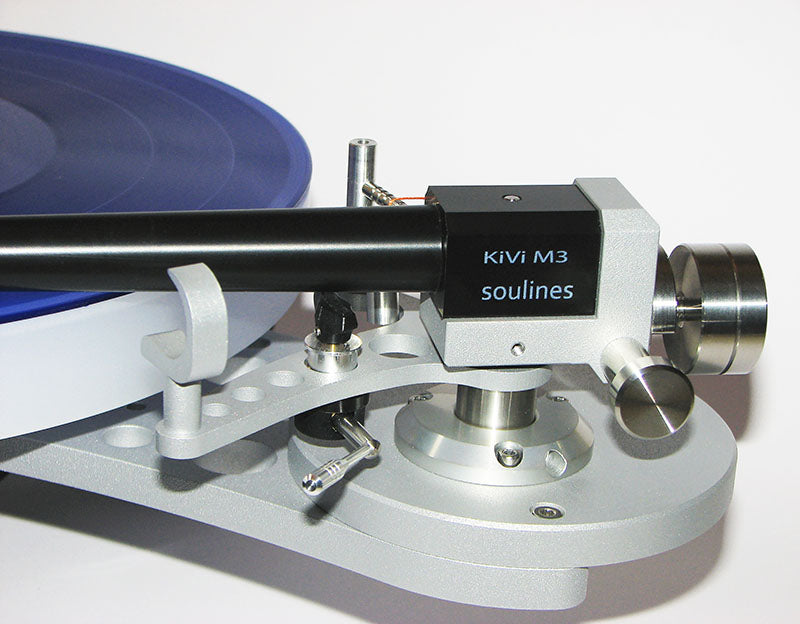

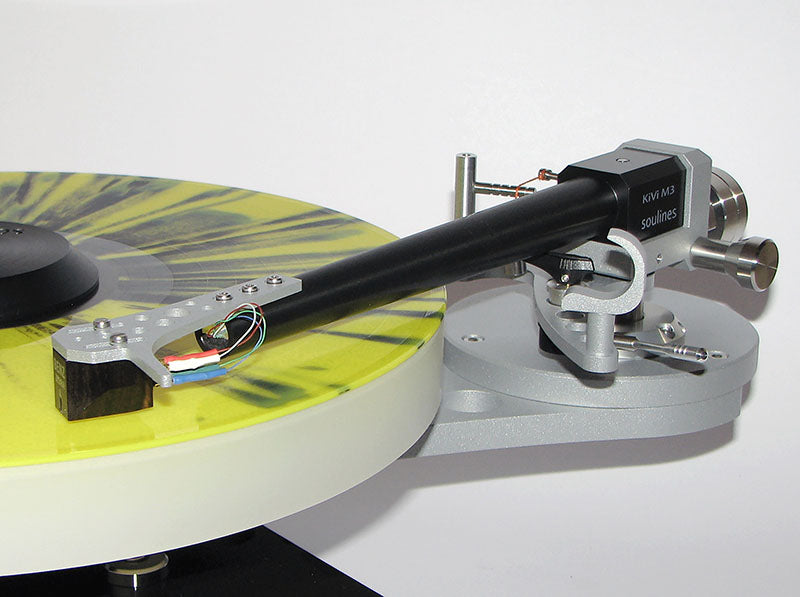

Soulines KiVi M3 Tonearm
17.535,00 DKK
Gå til produktoplysninger
Soulines KiVi M3 Tonearm
17.535,00 DKK
Soulines KiVi M3 tonearm is based on the "mass distribution" principle respect and understanding, which resulted in the unique design of the bearing yoke and arm tube, becoming a one piece element. Following that principle, required also a specifically designed counterweight assembly, as well as a captive uni-pivot bearing, or a "false" uni-pivot. Combination of all these elements resulted in the tonearm with the impeccable tracking abilities, life-like dynamic response and neutral sound, allowing cartridge to show its virtues.
Captive uni-pivot bearing consists of three hardened stainless steel balls and a precisely machined stainless steel pivot. The pivot point is centered between the balls which are in turn held captive by the Derlin cup. This bearing may look as a "classic" uni-pivot, but in fact it is a more sophisticated design, eliminating the unwanted "skating" of a "classic" uni-pivot bearing. In operation this bearing behaves and "feels" more like "rigid" bearing (gimballed) design tone arms, preferred by the majority of end users, due to easier cueing.
Derlin arm tube with the upper bearing yoke part also forms the bearing carrier. Mass loaded lower part of the bearing yoke which is aluminum made carries the counterweight stub and the side stainless steel stabilizers and it is rigidly bolted to the Derlin arm tube and the upper bearing yoke part.
Such assembly balances (and stabilizes) masses around the arm in such a way that when the cartridge tries to twist the arm at music frequencies the inertia of the arm alone holds it steady and also contribute to the efficient damping of the resonances which will inevitably reach the pivot bearing end of the arm tube, pointing them out of the Derlin arm tube with the upper bearing yoke part to the mass loaded lower part of the bearing yoke, stainless steel stabilizers and counterweight assembly and not reflecting them back towards the head shell/cartridge.
Specifications:
- pivot to spindle distance: 222-224mm (223mm ideally)
- effective length: 240mm
- effective mass: >15
- VTA adjustment: yes
- quality digital scale for the cartridge VTF measurements is included, measuring the cartridge VTF at the "LP record" level (plane)
- delivered without interconnect cable
