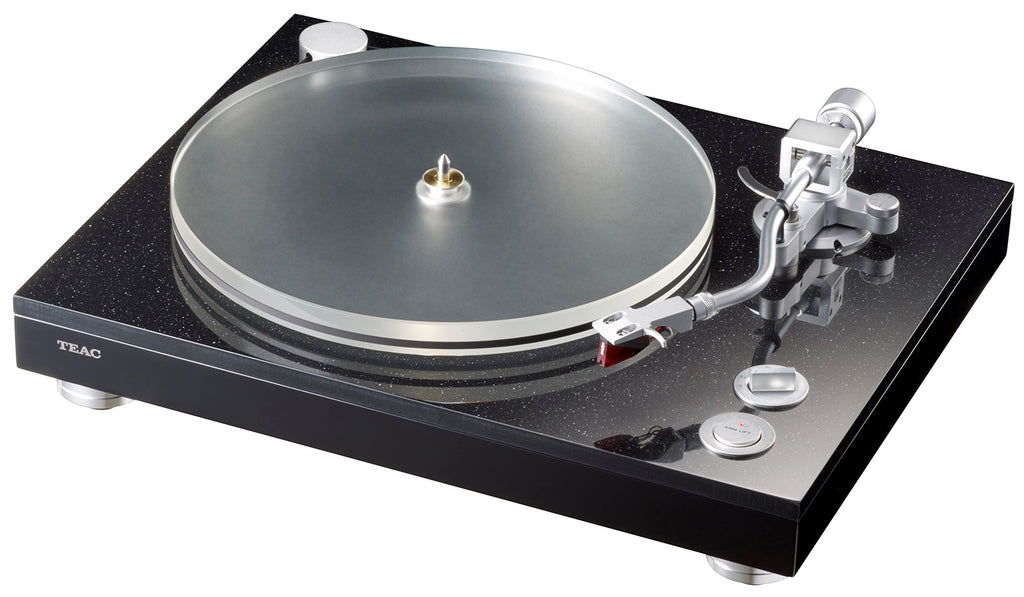

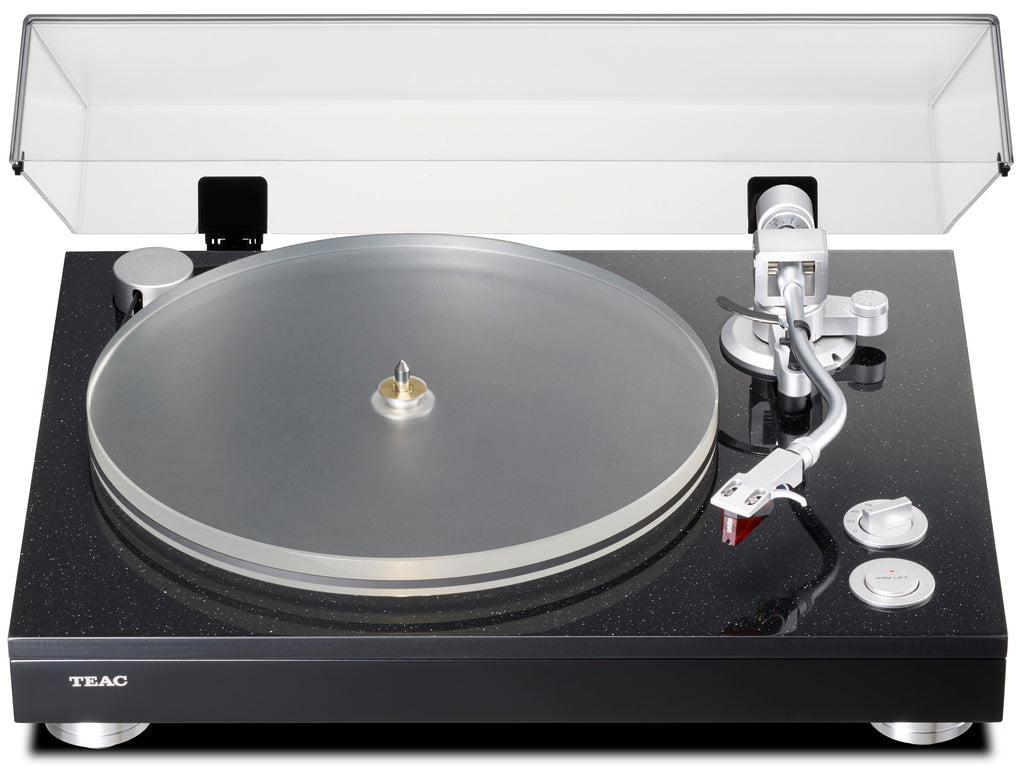

TEAC TN-5BB Pladespiller m/ Remtræk & XLR outputs

The TN-5BB analog turntable supports MC balanced output, features a hybrid chassis that combines synthetic marble, washi paper and MDF materials along with a 9-inch S-shaped universal arm that utilizes a knife-edge bearing.

List of features

• Rotation speeds of 33 1/3, 45 and 78 RPM supported
• Platter Rotation Sensing Servo System (PRS3)
• Static-balanced knife-edge-bearing tone arm
• VTA adjustment (tone arm height adjustment) function (+6 mm)
• Cabinet weight of 10.6 kg
• Platter weight of 1.7 kg (20mm-thick acrylic)
• Anti-skating function
• Powered arm lifter
• Non-contact detection automatic arm lift function (can be turned on/off)
• XLR balanced output connectors
• Unbalanced RCA output connectors
• GND connector
• Height-adjustable machined aluminum feet at four points
• Acrylic dust cover
• Cast aluminum head shell (lead wire) included
• Supports cartridge weights of 15–23 g (including head-shell)
• RCA and ground cables included
• L wrench for arm lifter height adjustment
• L wrench for VTA adjustment
• Cartridge alignment gauge

Included accessories

• 45RPM adapter x1
• Counter Weight x1
• Head-shell (Ortofon 2M Red installed) x1
• Turntable (Platter) x1
• Flat Belt x1
• Pulley Cover x1
• Dust Cover x1
• Hinge x2
• Foot height adjustment washers x4
• Arm height adjustment hex wrench x1
• RCA Audio Cable x1
• Ground wire x1
• AC Adapter (GPE018S-120100-Z) x1
• Cartridge Alignment Gauge x1
• User Manual x1

20mm thick acrylic platter

Acrylic with excellent levelness and internal loss is used for the platter. The 20mm-thick acrylic has 1.7kg weight and realizes high inertial momentum. The polyvinyl material used in records easily takes on negative electrical charges. Acrylic has this same property, but these materials are relatively close in triboelectric series. This provides the advantage of making electrification difficult even if they directly rub against each other. Records can be placed directly on the platter without using a turntable sheet, allowing enjoyment of their clear sound.

Reliable tracking realized with knife-edge tone arm that is an SAEC × TEAC collaboration

This knife-edge tone arm was created in collaboration with SAEC, a Japanese brand with 40 years of tonearm design experience. Using a stainless-steel knife-edge bearing for the vertical movable part, we have realized record groove tracking that is highly sensitive and reliable. Furthermore, for the lateral movable part, a conventional structure that has a ball bearing at one point for support has been replaced with a structure that uses Japanese-made high-precision ball bearings at two points for support. The height of the tone arm base can be adjusted. The Vertical Tracking Angle (VTA) can be adjusted in a 6mm range and optimized for cartridges of various heights. The tone arm geometry adheres to the Baerwald alignment recommended by the IEC.
