- Step-Up Transformer for MC cartridges (low output).

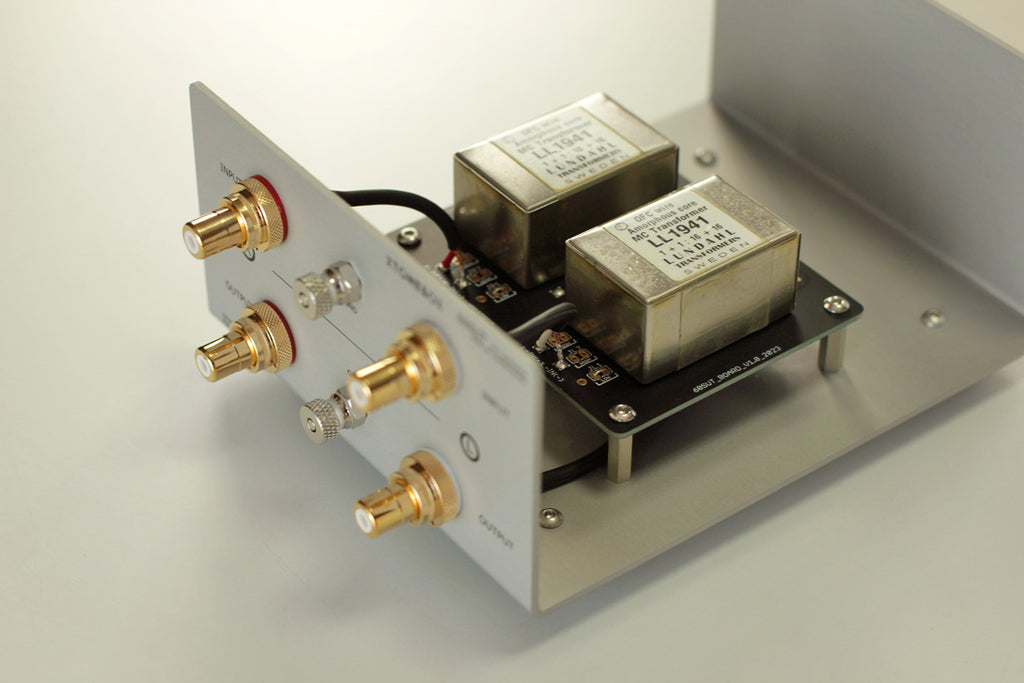

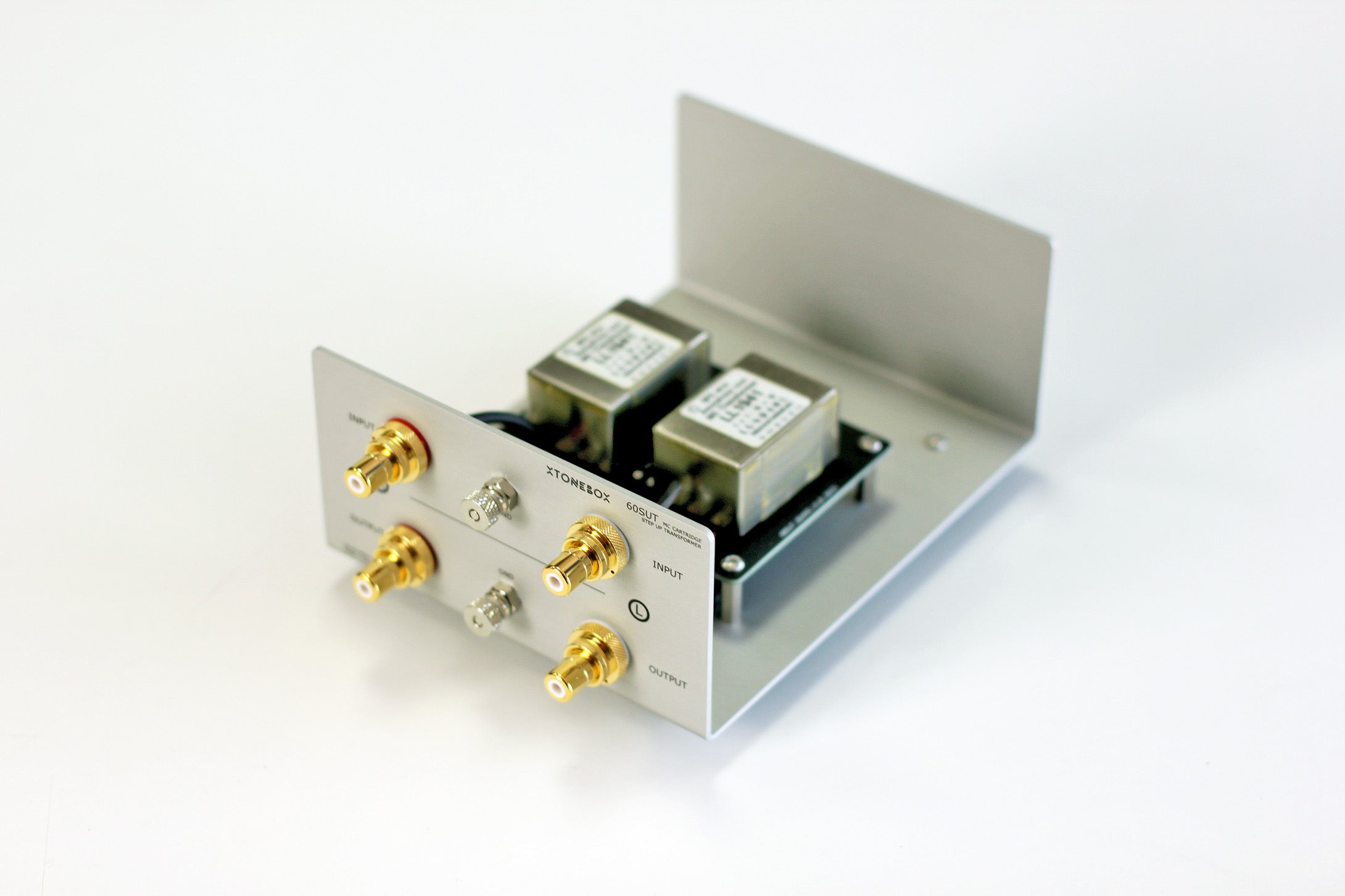

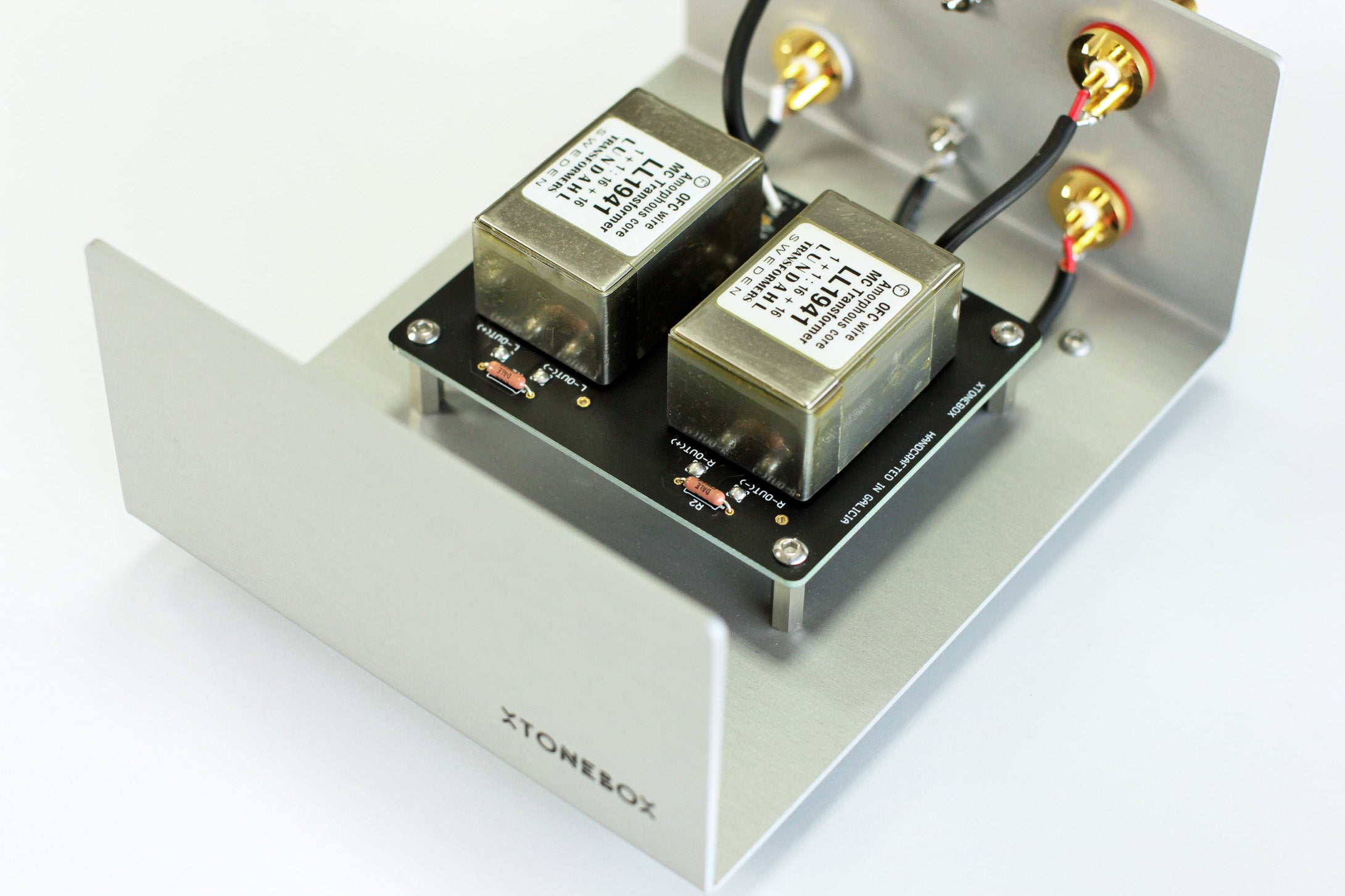

- Use of Lundahl Premium transformers. Made in Sweden.
- Material: Amorphous cobalt core, double coil structure, high purity copper wire, oversized design.
- Dual-mono design, 2 independent channels.
- Different versions of preset Gain: 18dB | 21.6dB | 24dB | 27.6dB | 30dB
- Recommended load impedance preset for 47K input.
- PCB board with gold plated tracks and paths as short as possible.

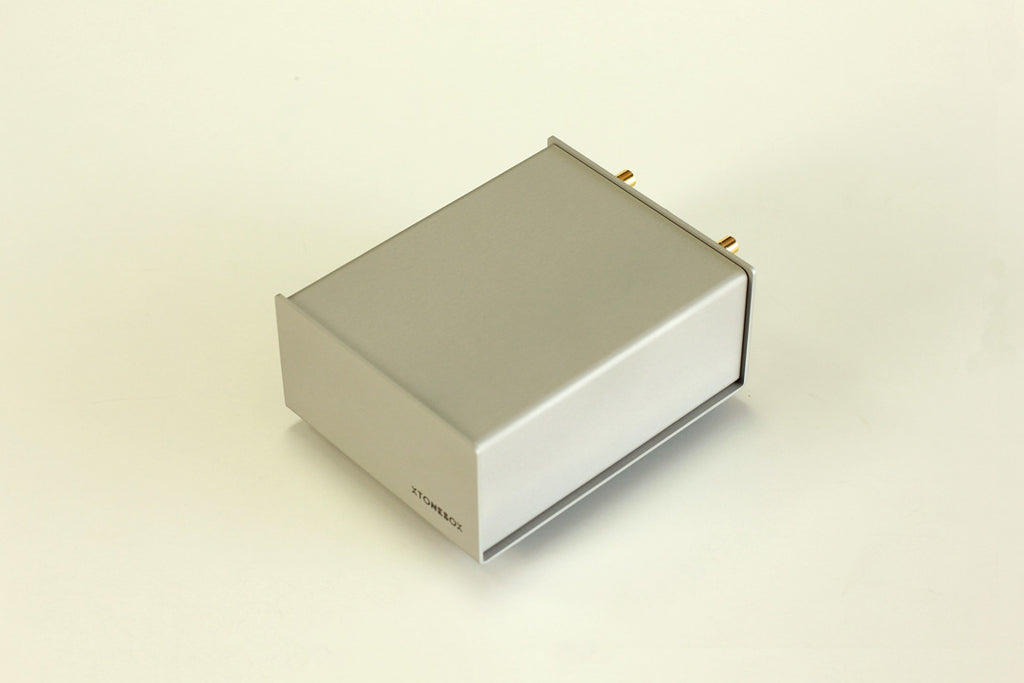

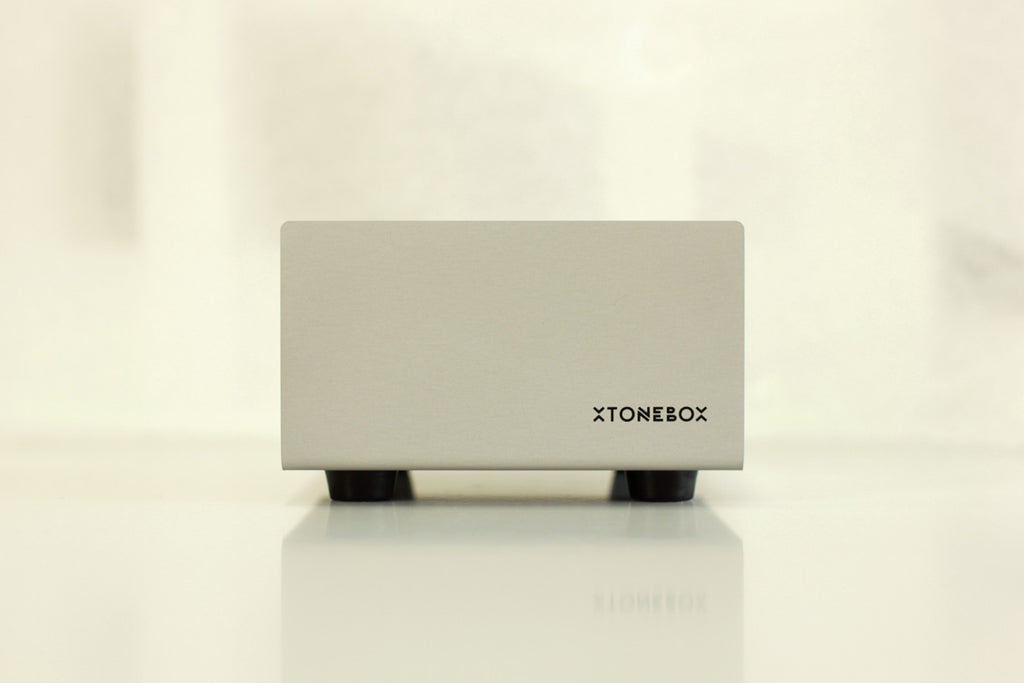

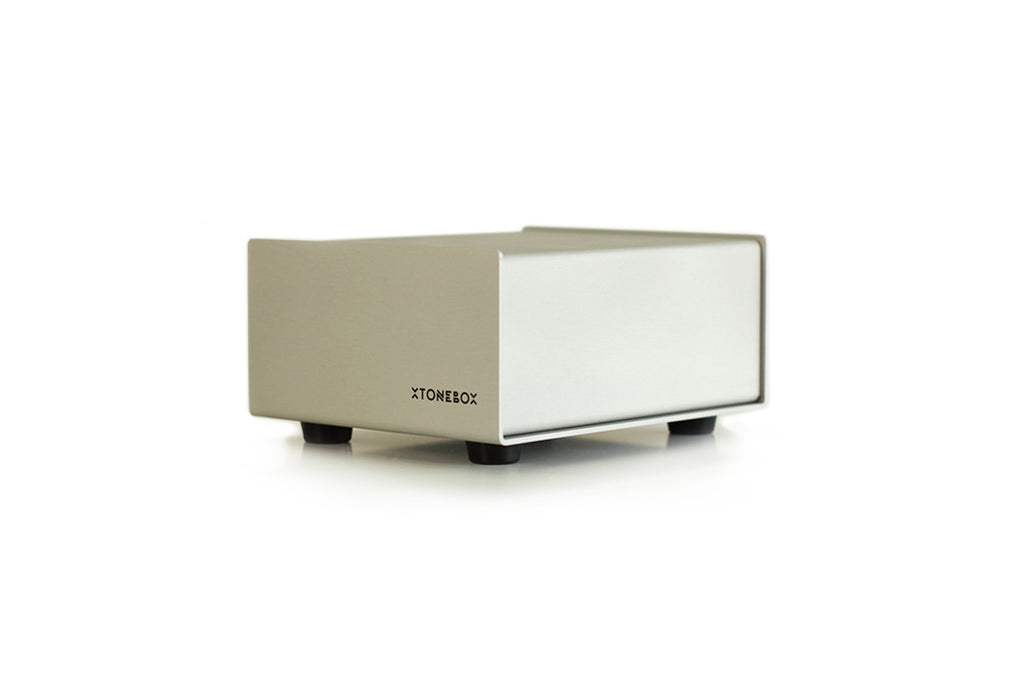

- Full aluminium chassis.
- O.F.C. signal wiring Euroclass Fca according to EN50575.

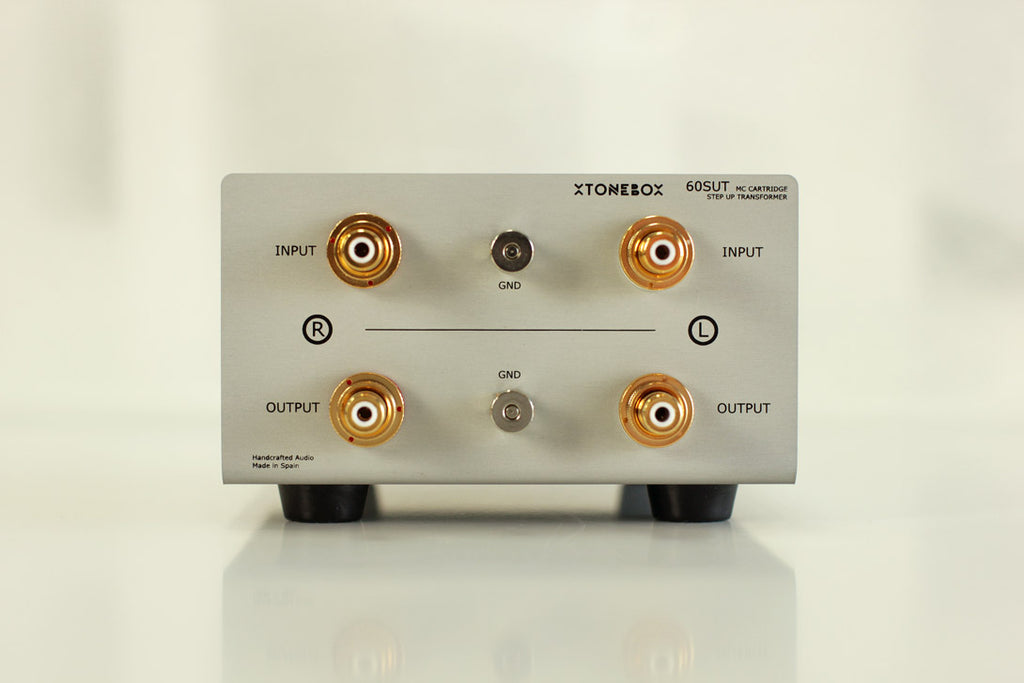

- 1 RCA input / 1 RCA output per channel.
- Ground terminal for input and output.
- Frequency response: 10 Hz - 40 kHz +/- 1.0 dB
- Dimensions (H,W,D): 7,5 x 12 x 17,5 cm
- Weight: 1 kg
XTONEBOX 60SUT MC Step-Up Transformer – Lundahl Premium
Setup B / Kobber
6.895,00 DKK
Gå til produktoplysninger
XTONEBOX 60SUT MC Step-Up Transformer – Lundahl Premium
6.895,00 DKK
Læs mere om de forskellige varianter HER
eller kontakt os for mere information!
Step-Up Transformer for MC low output cartridges
- High-performance Lundahl transformers inside.
- Superb rich sound response and zero background noise.
- No switching elements for a pure connection and no bad contact noises in the future.
- Gain and input impedance setup according to MC cartridge specifications.
MC cartridge compatible: Audio Technica: AT33Sa, AT-OC9XML, AT-OC9XSH, AT-OC9XSL | Hana: ML, Unami Blue, Unami Red | Mofi: ULTRAGOLD | Ortofon: MC Cadenza Red, MC Cadenza Bronze
